GE 9100c - Breathing system - rear view

9100c
10-20 M1207026

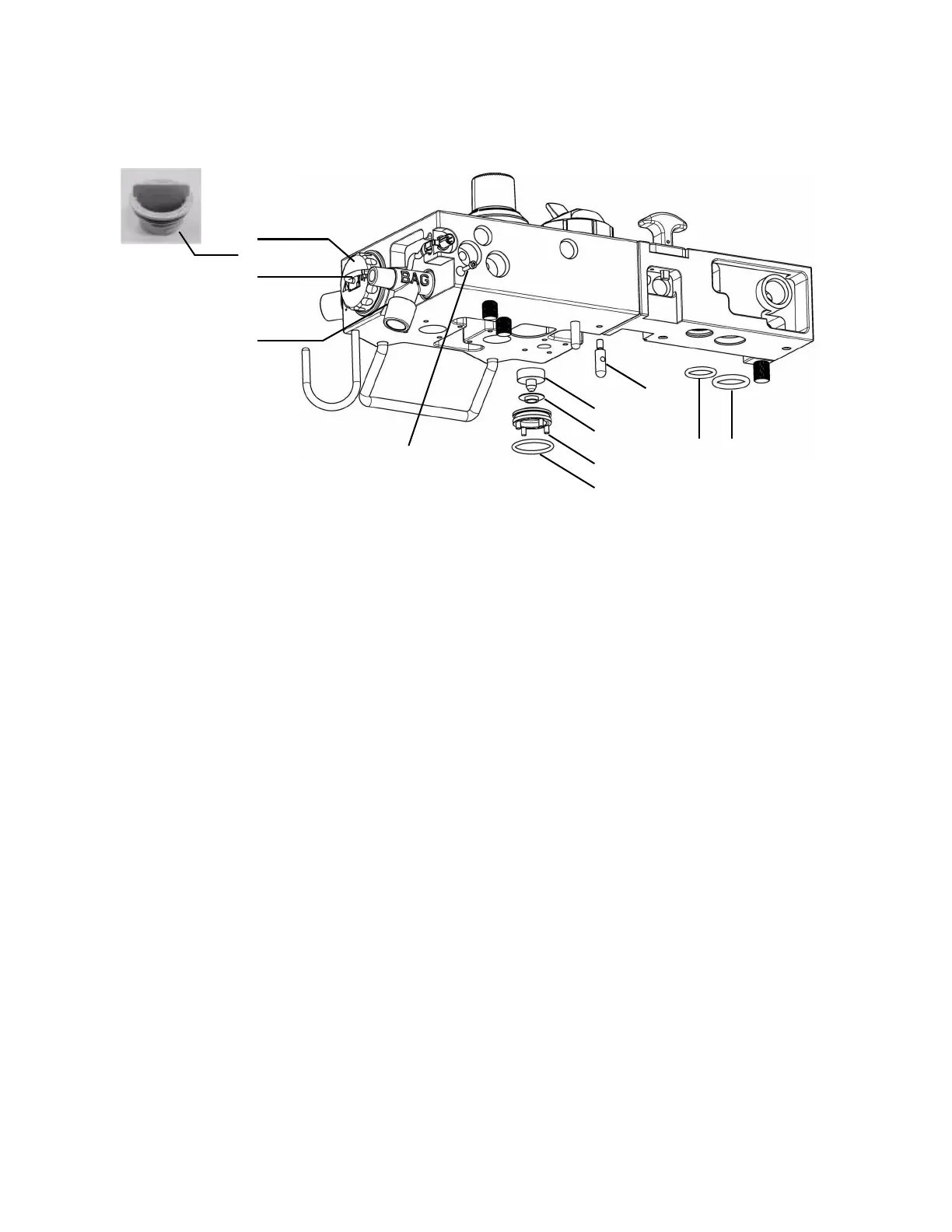

10.14.2 Breathing system - rear view
1
3
6
7
8
9
10
11
12 13
2
4 (5)
Item Description Stock number
1* O
2
Cell (includes o-ring) 6050-0004-110
O-ring, cell 1406-3466-000
2* Plug with o-ring (for units without circuit O
2
sensing) 1503-3857-000
O-ring, plug 1406-3466-000
3* Cable, O
2
Cell 1009-5570-000
4 Bag port M1195401-S
5** O-ring, Bag port, 18 ID 23.3 OD M1198742-S
6 Screw, M3x12 M1168429-S
7 Weight, dead 10 cm H
2
O, breathing system negative relief valve 1407-3406-000
8 Seal, breathing system negative relief valve 1407-3407-000
9 Valve Seat, breathing system negative relief valve M1187820-S
10** O-ring, 1.049 ID 1.255 OD 1407-3408-000
11 Stick M1187981-S
12** O-ring, 19 ID 25 OD M1198745-S
13** O-ring, 22 ID 30 OD M1169929-S
* The O
2
cell (or plug) and the cell cable are not included in the breathing system module.
** Lubricate sparingly with Krytox.
M1207027 004 MANUAL−DOC, Technical Reference Manual, Technical Reference Manual for 9100c, English−default
Reproduced from the electronic master in MATRIX
