GE 9100c - Shelf canister interface

9100c
10-24 M1207026

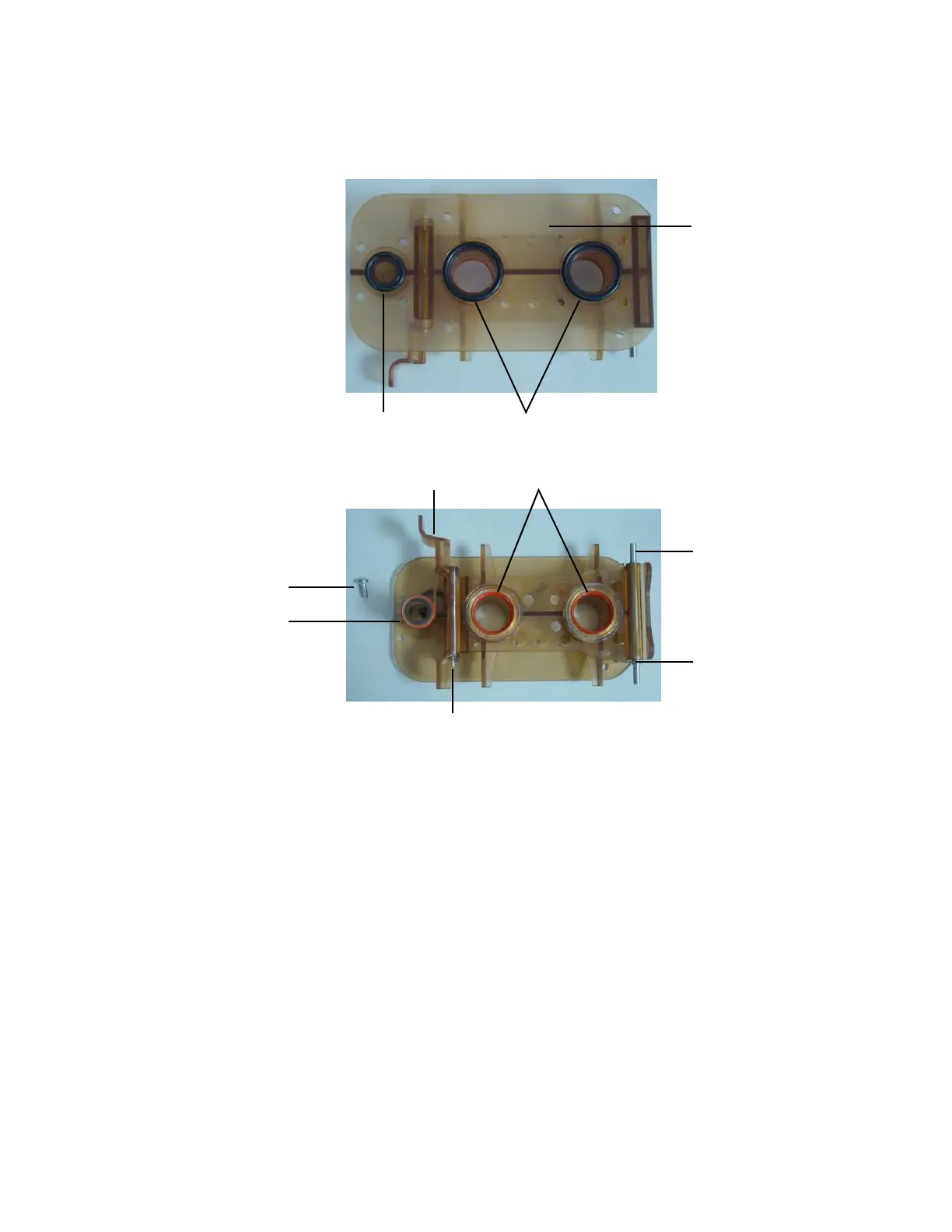

10.14.6 Shelf canister interface
1
2
3
4
5
6
7
8
9
10
Item Description Stock number Qty
Shelf canister interface module M1172138-S1
1 Shelf M1170491-S
2 O-ring, 25 ID 30.3 OD M1169932-S (2)
3 O-ring, 15 ID 20.3 OD M1169931-S
4 Release pin M1159525-S
5* O-ring, 22 ID 30 OD M1169929-S (2)
6 Shaft hook, 85mm M1165449-S
7 Washer M1168758-S (4)
8 Shaft hook, 61mm M1165452-S
9* O-ring, 12.37 ID 17.61 OD M1169930-S
10 Screw, M4x10 M1168626-S (10)
* Lubricate sparingly with Krytox.
