GE 9100c - Breathing system - front view

10 Illustrated Parts
M1207026 10-19
10.14 Breathing System

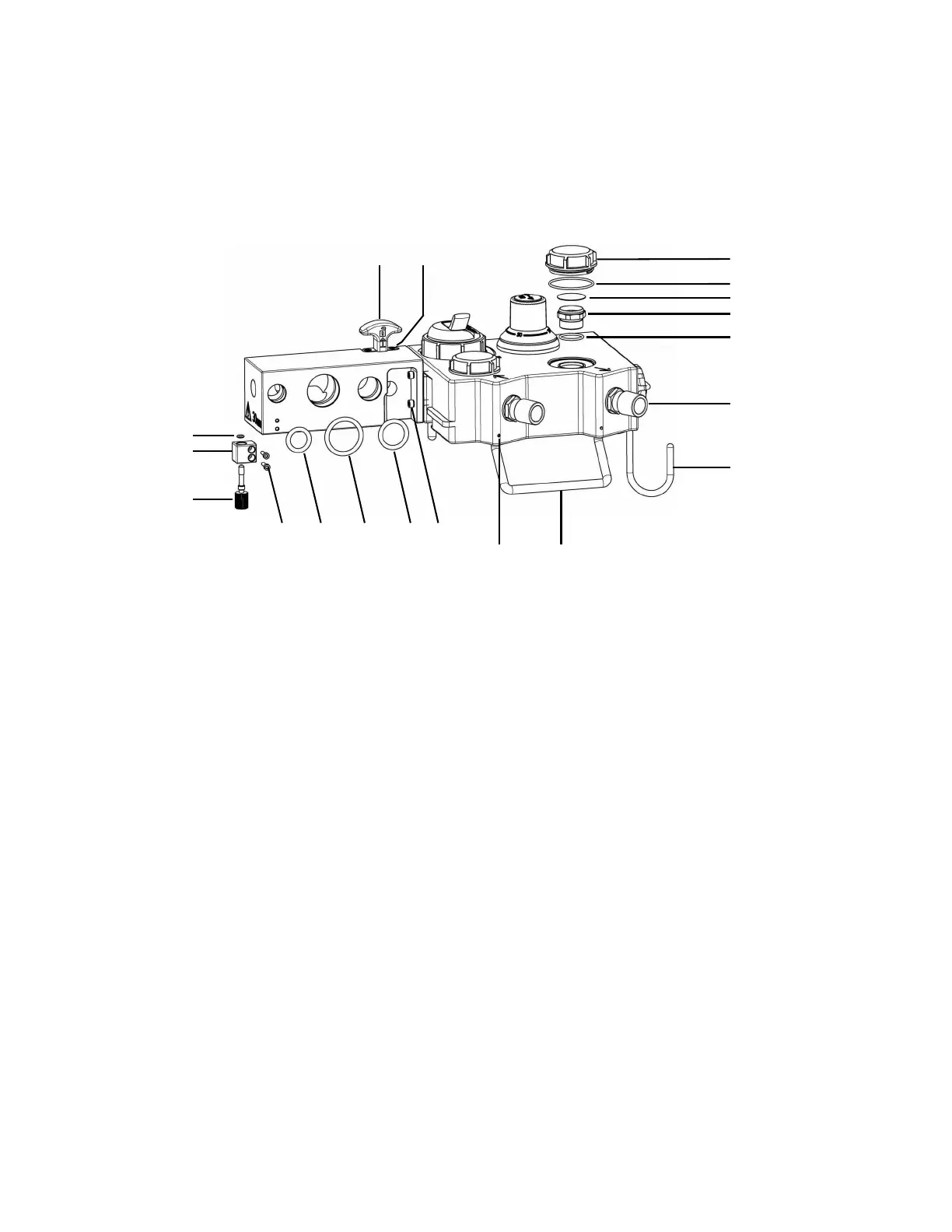

10.14.1 Breathing system - front view
1
3
4
5
7
8 (9)
10 (11)
12
14
15161718
19
20
21
2
13
6
Item Description Stock number Qty
Breathing system assembly
1 Latch, breathing system M1197144-S
2 Screw, M3x16, flat countersunk head, SST, Cross recess M1198764-S (2)
3 Cover, check valve M1207632-S
4 O-ring, 40 ID 43.6 OD M1168795-S
5 Ceramic disc, Check valve M1167404-S
6 Disc seat, Check valve M1165447-S
7 O-ring, 20 ID 23.6 OD M1168789-S
8 Port, cone M20 transparent M1198736-S
9 O-ring, 20 ID 23.6 OD M1168789-S
10 Hook M1166917-S
11 Screw, M2x8, Hook Install M1168578-S
12 Handle, breathing system M1195395-S
13 Screw, M3x16 M1208611-S (2)
14 Screw, M4x16 M1168467-S (3)
Washer, 65Mn/Ep Ni, Single coil spring lock washer 4 M1168766-S (3)
15* O-ring, 22 ID 30 OD M1169929-S
16* O-ring, 30 ID 38 OD M1198744-S
17* O-ring, 17 ID 25 OD M1198743-S
18 Screw, M3x12 M1168429-S (2)
19 Thumbscrew, Bellows M1208558-S
20 Lock seat, Bellows M1208731-S
21 O-ring, 2.9 ID 6.46 OD 1.78 W EP 70 DURO 1407-3409-000
* Lubricate sparingly with Krytox.
