GE 9100c - APL Valve

10 Illustrated Parts
M1207026 10-21

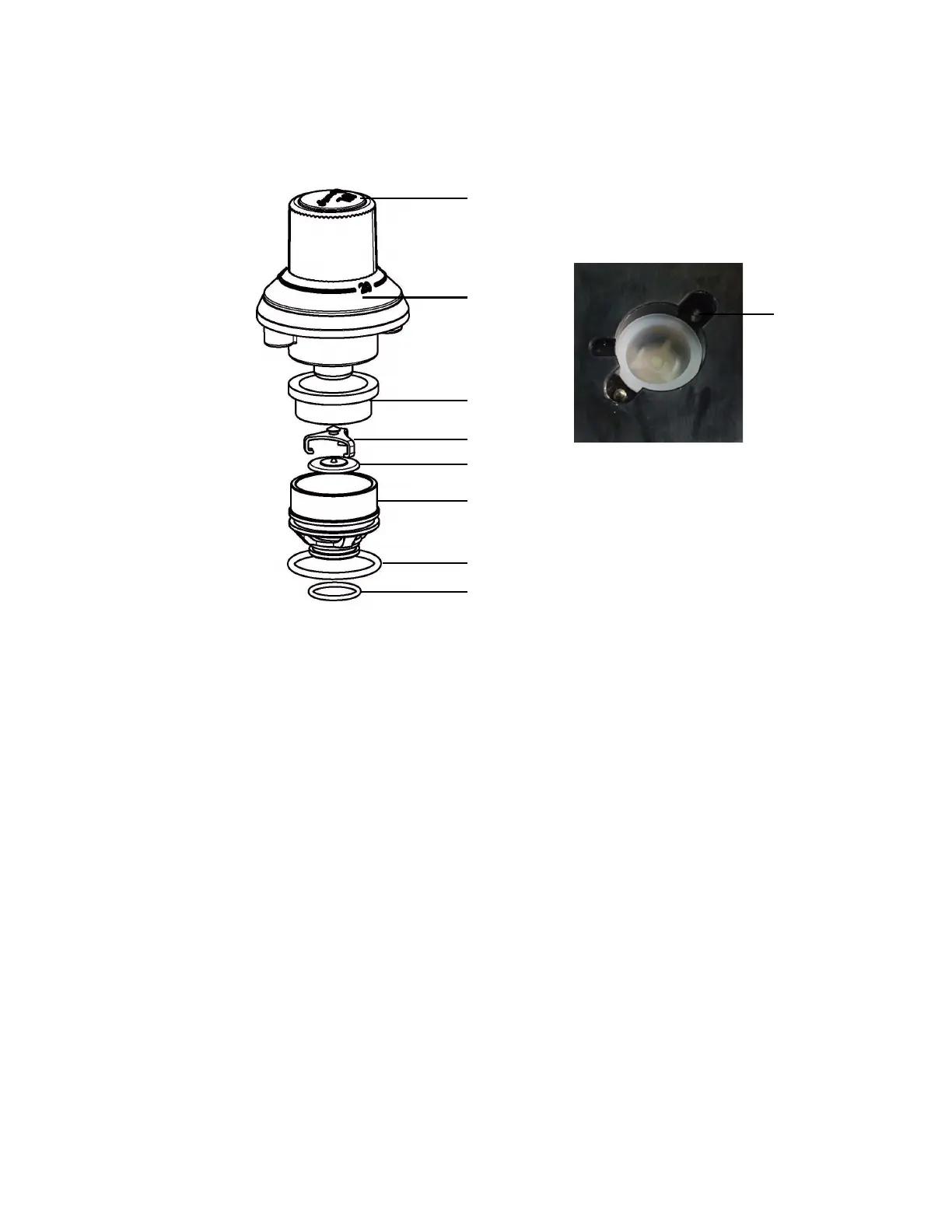

10.14.3 APL Valve
1
2
3
4
5
6
7
8
9 (10)
Item Description Stock number Qty
1 Crown, APL M1209071-S
2 Manifold assembly, APL M1209899-S
3 Diaphragm, APL M1205630-S
4 Cage, APL M1205628-S
5 Poppet, APL M1192905-S
6 Port, APL M1192911-S
7* O-ring, 31.5 ID 36.8 OD M1198747-S
8* O-ring, 17 ID 20.6 OD M1198751-S
9 Handspike bolt M1192913-S (2)
10 O-ring, 3.55 ID 7.15 OD M1168817-S (2)
* Lubricate sparingly with Krytox.
M1207027 004 MANUAL−DOC, Technical Reference Manual, Technical Reference Manual for 9100c, English−default
Reproduced from the electronic master in MATRIX
