GE 9100c - Vent Engine

10 Illustrated Parts
M1207026 10-29

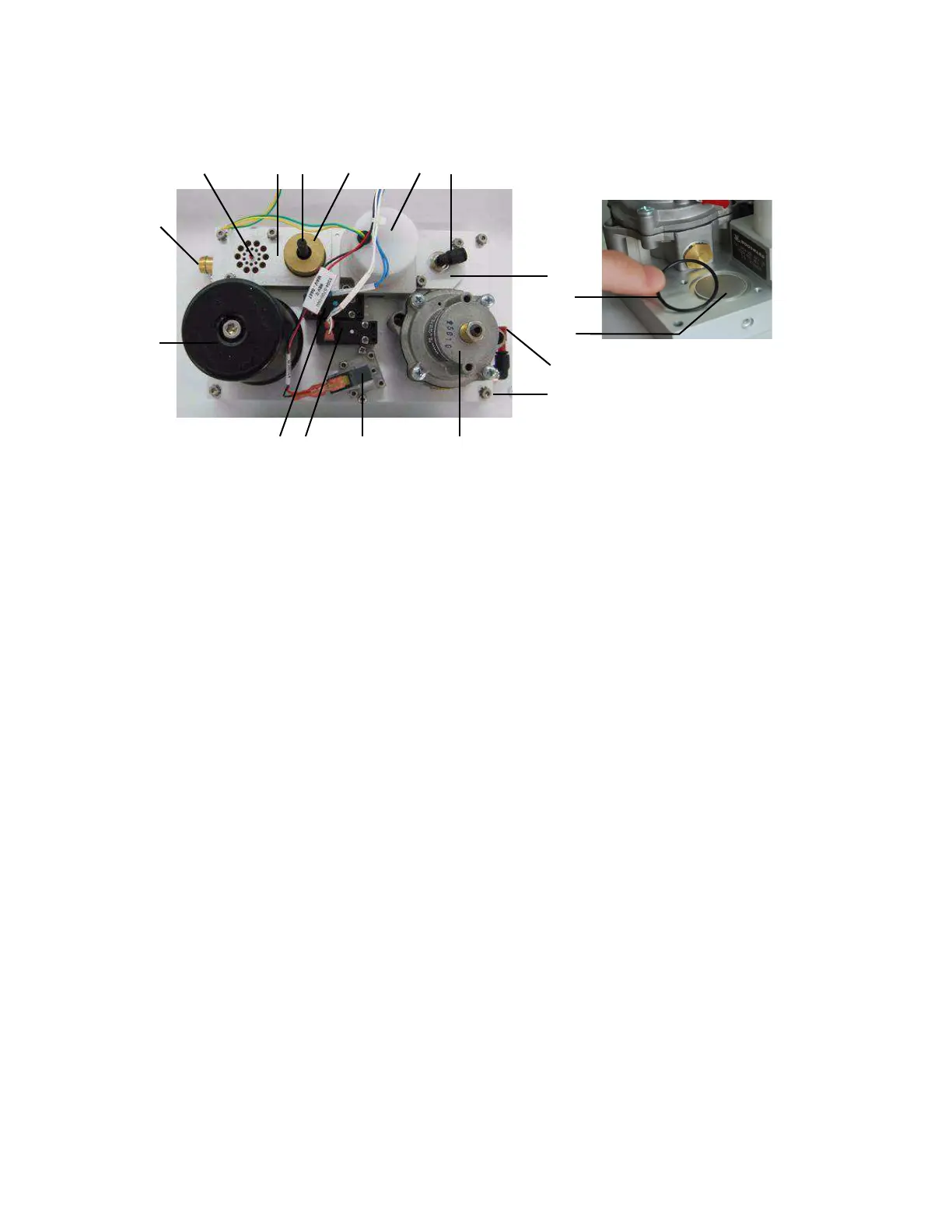

10.15 Vent Engine
1
6
7
234
5
89 10 1112
13
14
15
17
16
Item Description Stock number Qty
Vent Engine assembly M1198710-S
1 Regulator
O-ring, 9.25 ID x 12.8 OD
1504-3623-000
1503-3056-000 (2)
2 Pressure Sense Switch
O-ring, 3.63 ID x 8.87 OD
Screw, M3x16
1504-3607-000
1006-4156-000
M1168595-S
3 PEEP Safety Valve (white dot) 1504-3608-000
4 PEEP Valve (blue dots) 1504-3610-000
5 Reservoir, pneumatic engine
O-ring, base, 56.87 ID x 60.43 OD
O-ring, screw head, 0.219 ID x 0.344 OD
Screw, M6x90
1504-3704-000
1504-3614-000
0210-0686-300
1504-3004-000
6 Drive gas and pilot pressure port
O-ring, 12.5 ID x 16.1 OD
Screw, M4x10
M1184241-S
M1168806-S
M1168760-S
(2)
(2)
(2)
7 Valve, flapper
O-ring, 30 ID x 33.6 OD
0211-1454-100
M1168794-S
8 Seat, MOPV and free breathing valve
Screw, M4x25
M1184062-S
M1168479-S (3)
9 Seal, Mechanical overpressure valve 1503-3016-000
10 Mechanical overpressure valve
Mechanical overpressure valve port
Screw, M4x10
O-ring
M1184243-S
M1184245-S
M1168760-S
M1168788-S
11 Inspiratory Flow Control Valve
O-ring, 9.25 ID x 12.8 OD
Harness, valve switches
1503-3854-000
1503-3056-000
1504-5700-000
(2)
12 Elbow male G1/8 6-mm Drive Gas M1169127-S
13 Retainer, filter
Screw, M4x12
Washer, M4
M1172714-S
M1168460-S
M1168751-S
14 O-ring, 28.24 ID x 33.48 OD M1173359-S
15 Filter, 2-micron (install course side DOWN) 1504-3708-000
16 Plug, 6 mm M1169143-S
17 Screw, M4x20
Washer, M4
M1168565-S
M1168751-S
(4)
(4)
