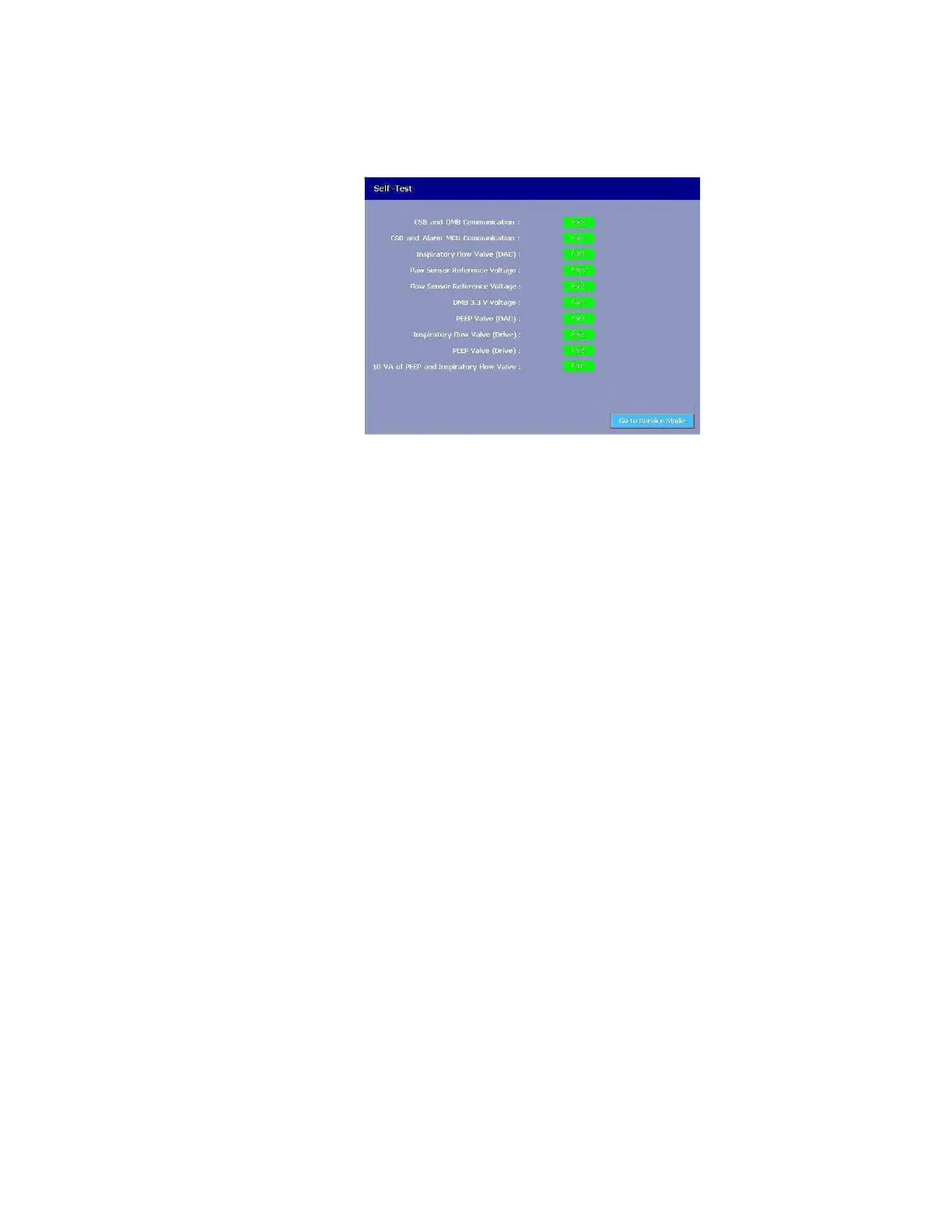

4.4.4 Self - Test The Self-Test menu allow you to observe the self tests and the
results on the screen.
The Self-Test shows:
• CBD and DMB Communication — Pass or Fail
• CSB and Alarm MCU Communication — Pass or Fail
• Inspiratory Flow Valve (DAC) — Pass or Fail
• Paw Sensor Reference voltage — Pass or Fail
• Flow Sensor Reference voltage — Pass or Fail
• DMB 3.3 V voltage — Pass or Fail
• PEEP Valve (DAC) — Pass or Fail
• Inspiratory Flow valve voltage — Pass or Fail
• PEEP Valve (Drive) — Pass or Fail
• 10 VA of PEEP and Flow Valve — Pass or Fail
When the result is “Pass”, the icon background should be green.
When the result is “Fail”, the icon background should be red.
Remarks If one or more of these tests fail, please check the CSB, DMB, Vent
Engine and the harnesses.
