GE 9100c - Tabletop Pan Components

9100c
10-16 M1207026

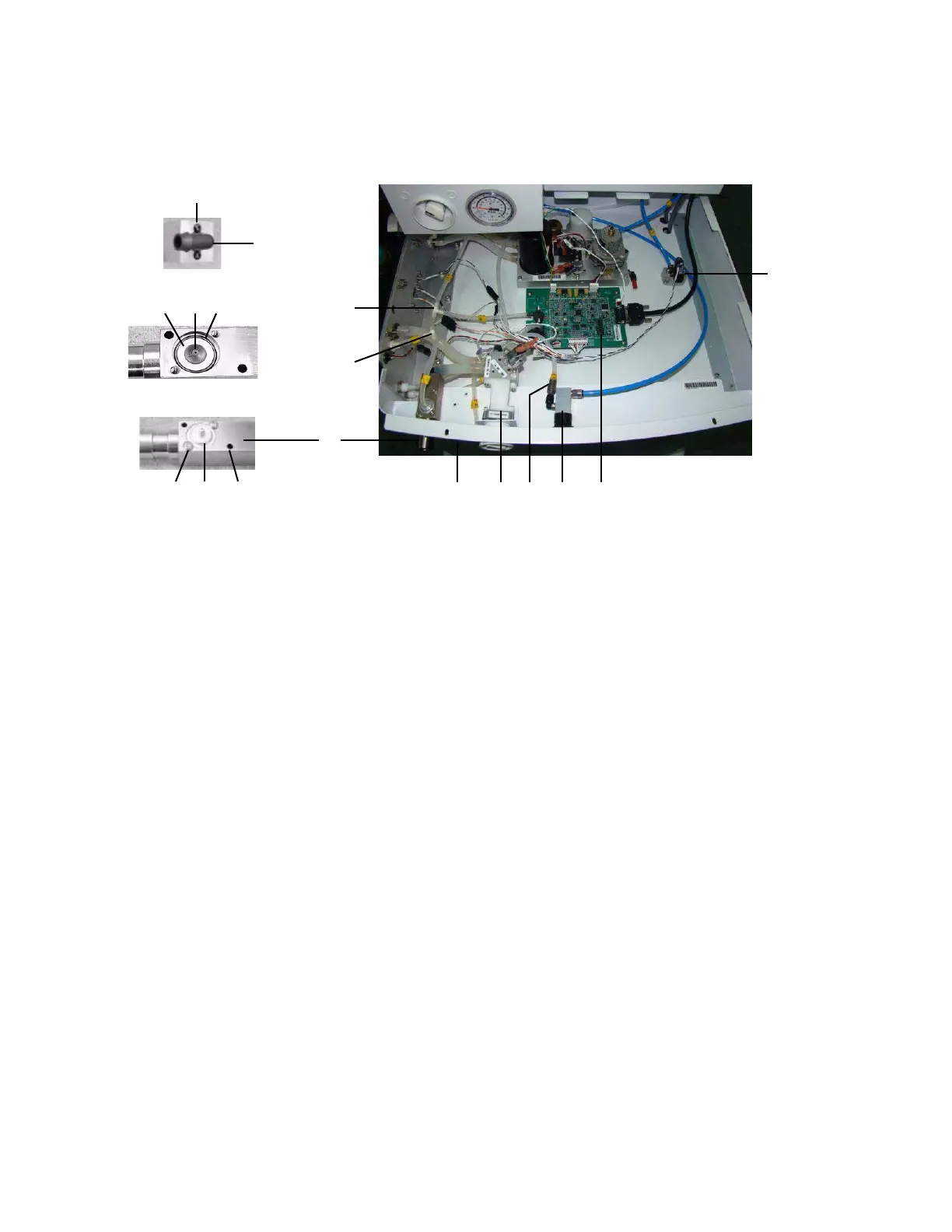

10.12 Tabletop Pan components
2 (3)
7
146
8 (9)1011
12 13 14
15 (16)
17
5
18
19
20
Item Description Stock number Qty
1 Control Sample Board M1187893-S
2O
2
supply switch
O-ring, 0.250 inch ID 0.375 inch OD
Screws, M4x12 Pozidriv PAN
1006-3623-000
0210-0687-300
0140-6226-111 (2)
3 Manifold, O
2
supply switch
Screw, M4x8
M1195025-S
M1168622-S (2)
4O
2
flush valve M1180330-S
5 Fitting, 6 mm 1/4 inch M1192489-S
6 ACGO Selector Valve Refer to section 10.12.1
7 Port, ACGO body 1009-3096-000
8 Screw, M4x30 9211-0640-304
9 Lockwasher, M4 9213-0540-003
10 Cap, ACGO check valve 1009-3095-000
11 Screw, M4x8 9211-1040-069
12 Disk, ACGO check valve 1009-3062-000
13 Flapper, ACGO check valve 1009-3097-000
14* O-ring 0210-0543-300
15 Fitting, elbow barbed 1009-3160-000
16* O-ring 0210-0691-300
17 Screw, M3x6 9211-1030-055
18 Legris Tee connector A Refer to section 10.18
19 Legris Tee connector B Refer to section 10.18
20* Blank label (for machines without ACGO) M1203029-S
* Lubricate sparingly with Krytox.
