GE 9100c - Exhalation Valve

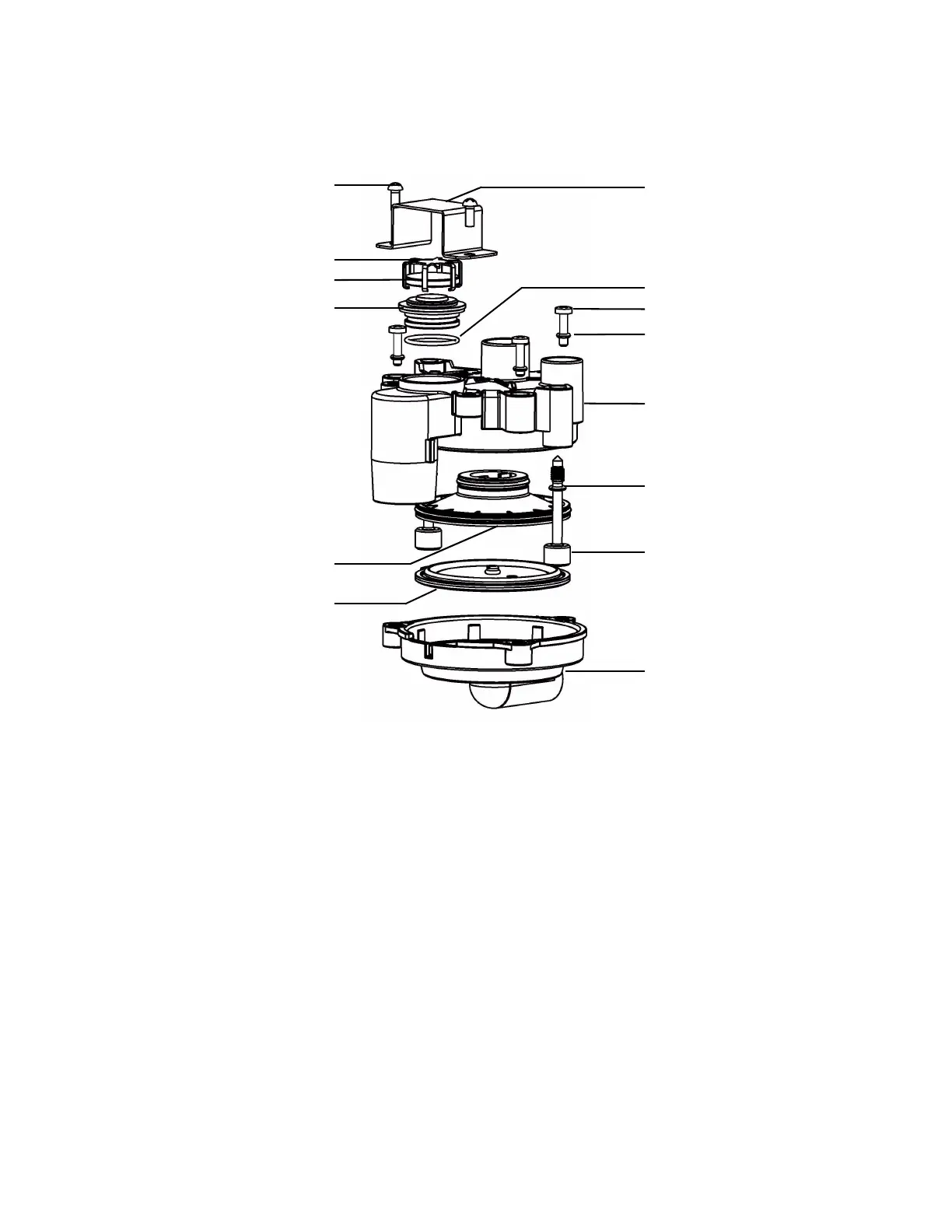

10 Illustrated Parts
M1207026 10-25
10.14.7 Exhalation Valve
1
2
3
4
5
6
7
8
10
11
12
13
14
9
Item Description Stock number Qty
Exhalation valve assembly M1197141-S
1 Screw, M4x10 M1168626-S (2)
2 Cover, relief valve M1187367-S
3 Retainer, disk 26.97D 12.7H 0.76T SST flutter 1400-3017-000
4 Weight, dead 10 cm H
2
O 1406-3572-000
5 Seat, relief valve M1187360-S
6* O-ring, 22.4 ID 26 OD M1168810-S
7 Screw, M4x16 PH PAN HD 9211-0440-163 (3)
8 O-ring, 2.9 ID 6.46 OD 1407-3409-000 (3)
9 Cover, exhalation valve M1187363-S
10 O-ring, 4.47 ID x8.03 OD 1407-3703-000 (2)
11 Thumbscrew, M6x43 10mm head 1406-3306-000 (2)
12 Seat, exhalation valve 1407-3704-000
13 Diaphragm assembly 1503-8121-000
14 Base, exhalation valve M1187365-S
* Lubricate sparingly with Krytox.
M1207027 004 MANUAL−DOC, Technical Reference Manual, Technical Reference Manual for 9100c, English−default
Reproduced from the electronic master in MATRIX
