9100c
10-22 M1207026

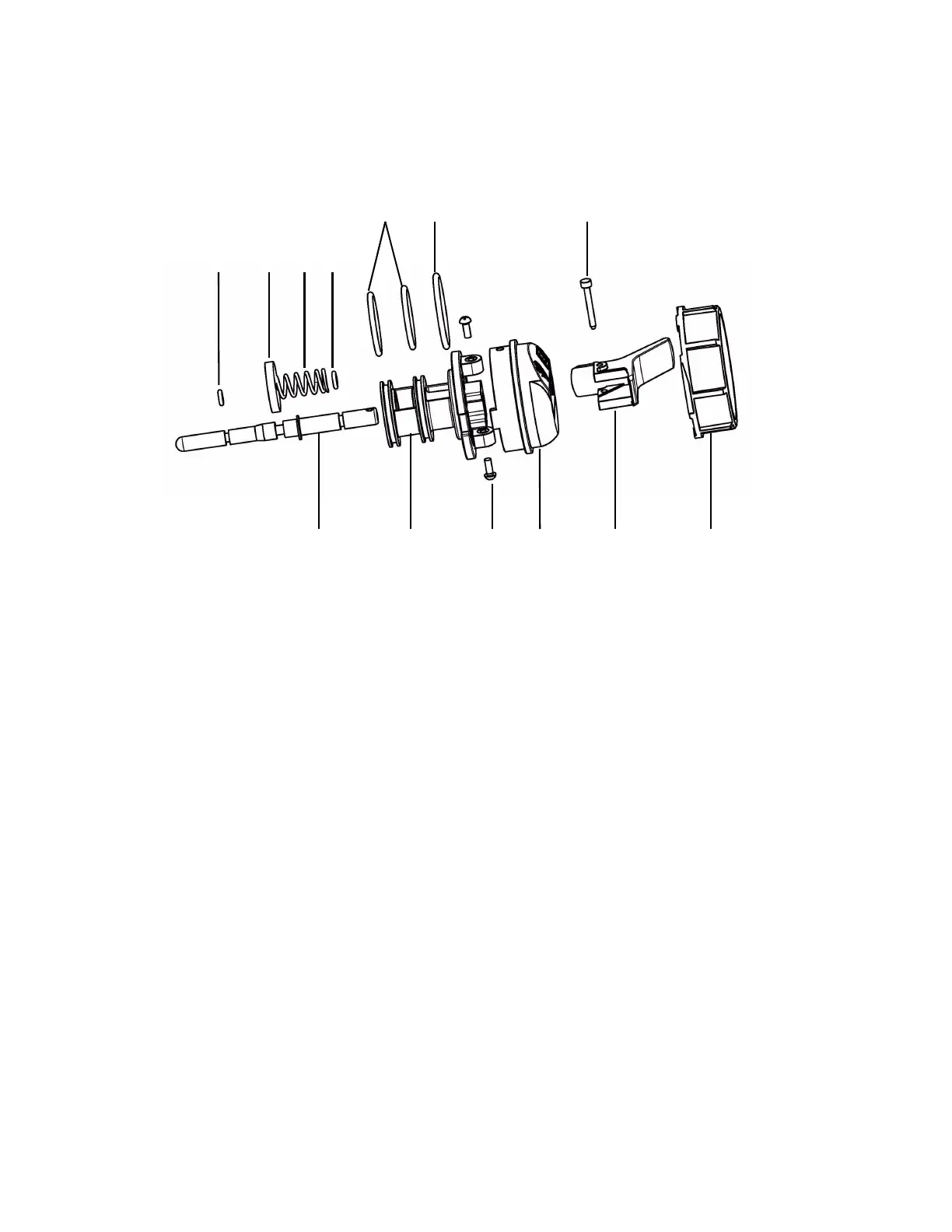

10.14.4 Bag/Vent Switch
Item Description Stock number Qty
Bag/Vent Switch M1197143-S
1 Fixing, BTV M1195413-S
2 Swing, BTV M1187373-S
3 Cover, BTV M1187371-S
4 Screw, M3x8 M1168599-S (2)
5 Shelf, BTV M1187369-S
6 Shaft, BTV M1187375-S
7* O-ring, 4 ID 7.6 OD M1198749-S
8 Seal, BTV M1187377-S
9 Spring, BTV M1187379-S
10* O-ring, 5 ID 8.6 OD M1198746-S
11* O-ring, 26 ID 31 OD M1198748-S (2)
12* O-ring, 31.5 ID 36.8 OD M1198747-S
13 Pin, BTV M1187381-S
* Lubricate sparingly with Krytox.
M1207027 004 MANUAL−DOC, Technical Reference Manual, Technical Reference Manual for 9100c, English−default
Reproduced from the electronic master in MATRIX
