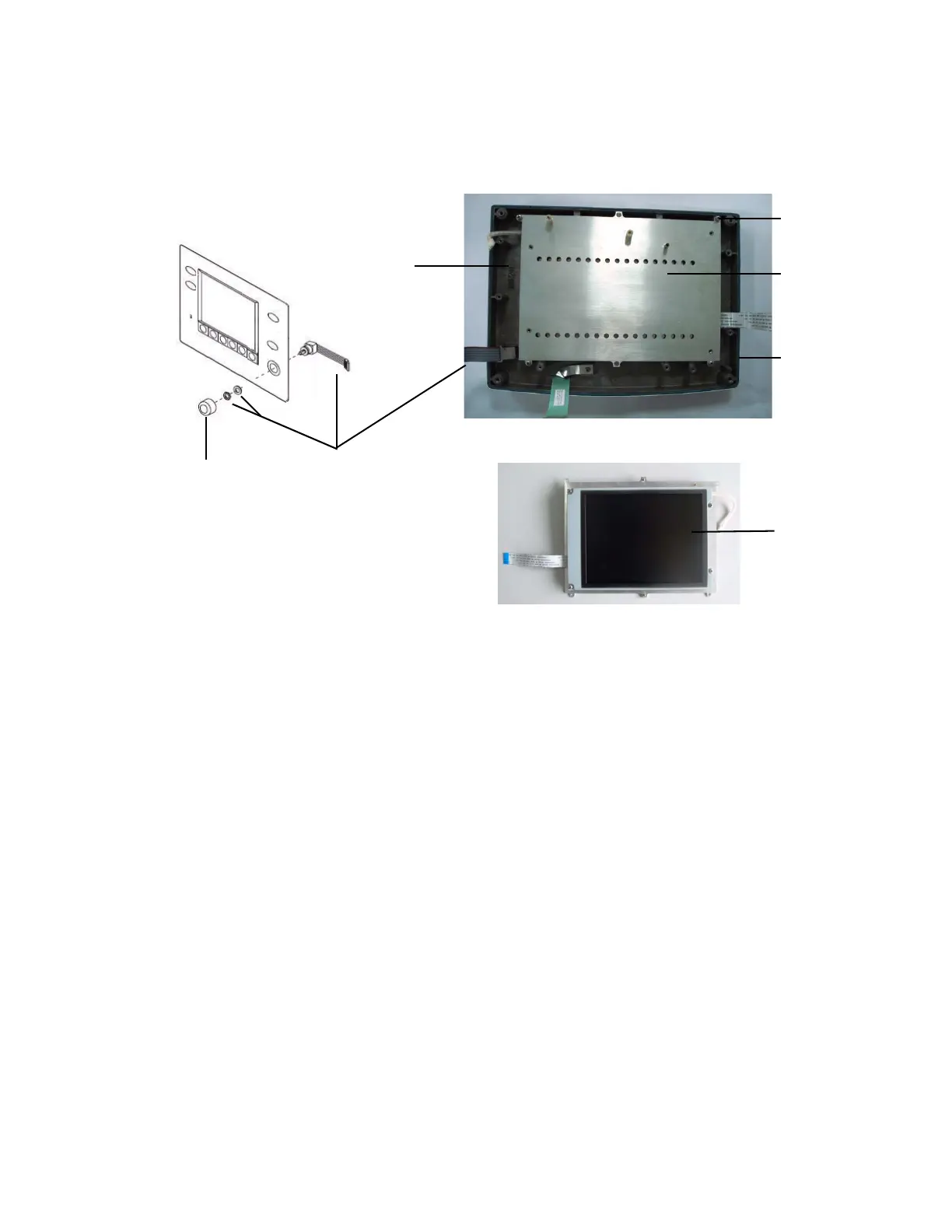

10.16.2 Display Keyboard and LCD assembly
Item Description Stock number Qty
1 Rotary Encoder, switch 1503-3012-000
2 Knob, soft touch M1081590-S
3 Fixture display LCD enclosure M1187245-S
4 Screw, M3x6 0140-6219-128 (4)
5 Gasket, EMC 2.2 OD hollow RND (per enclosure) M1120773-S
6 Front Enclosure M1187240-S
7 LCD with protect spiral wrap M1197817-S
M1207027 004 MANUAL−DOC, Technical Reference Manual, Technical Reference Manual for 9100c, English−default
