GE 9100c - Front Panel, Gauges and System Switch

9100c
10-8 M1207026

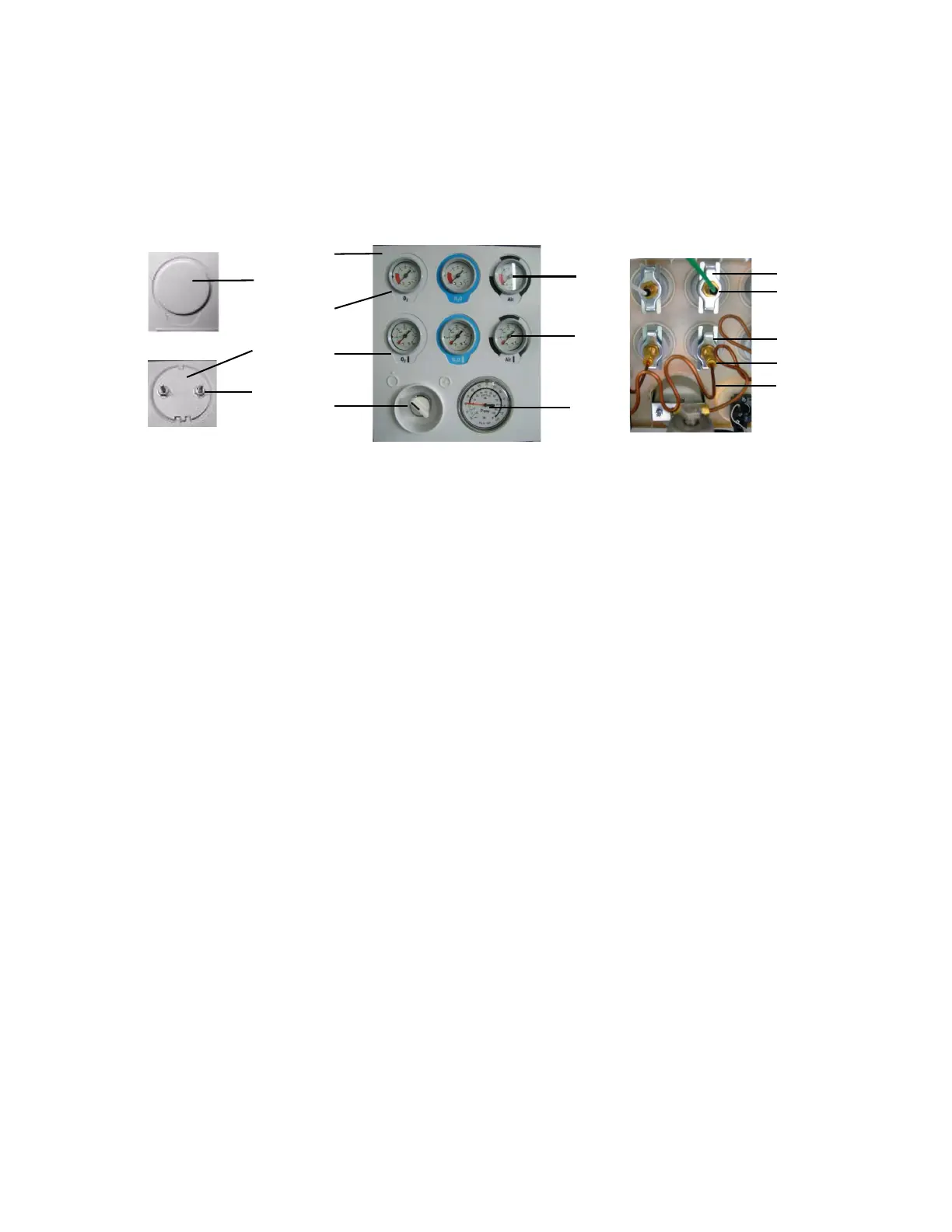

10.5 Front panel, gauges and system switch
1
2
4
6
3
8
8
10
11
12
4
5
6
7
9
Item Description Stock number
Stock number
(pipeline)
Stock number
(cylinder)
1 Panel, gauge front M1186907-S
2 System switch
Contact switch w/o knob
-----------------
M1198995-S
3 Gauge, airway pressure (includes mounting hardware) 1009-3034-000
4 Gauge, low pressure (includes mounting hardware) 1009-3079-000
5 Connector, 1/8 inch Legris to 10-32, O
2
and Air 1006-3711-000
Elbow connector, 4mm legris, N
2
O M1170208-S
6 Gauge, high pressure (includes mounting hardware) 1009-3080-000
7 Connector, 1/8 inch copper tube to 5/16-24 1006-3712-000
8 Label, gauge
O
2
ANSI 1009-3081-000 1009-3199-000
N
2
O ANSI 1009-3082-000 1009-3201-000
Air ANSI 1009-3083-000 1009-3200-000
O
2
ISO 1009-3202-000 1009-3204-000
N
2
O ISO 1009-3082-000 1009-3201-000
Air ISO 1009-3203-000 1009-3205-000
O
2
Neutral 1009-3234-000 1009-3237-000
N
2
O Neutral 1009-3235-000 1009-3238-000
Air Neutral 1009-3236-000 1009-3239-000
9 Tubing, OD.125IN HPO
2
Wall. 032IN LG 450mm CP 1006-3716-000
10 Plate, gauge blanking 1009-3045-000
11 Plate, gauge blank backing 1009-3147-000
12 Palnut 1009-3090-000
