GE 9100c - PEEP Valve

4 Service Tests and Service Mode
M1207026 4-17
4.5.4 PEEP Valve The PEEP Valve Calibration should be performed:
• when the machine is first put into service.
• at prescribed, planned maintenance intervals.
• after the pneumatic vent engine has been serviced.
Note The Paw Zero and Paw Gain must be calibrated before the PEEP
Valve Calibration.

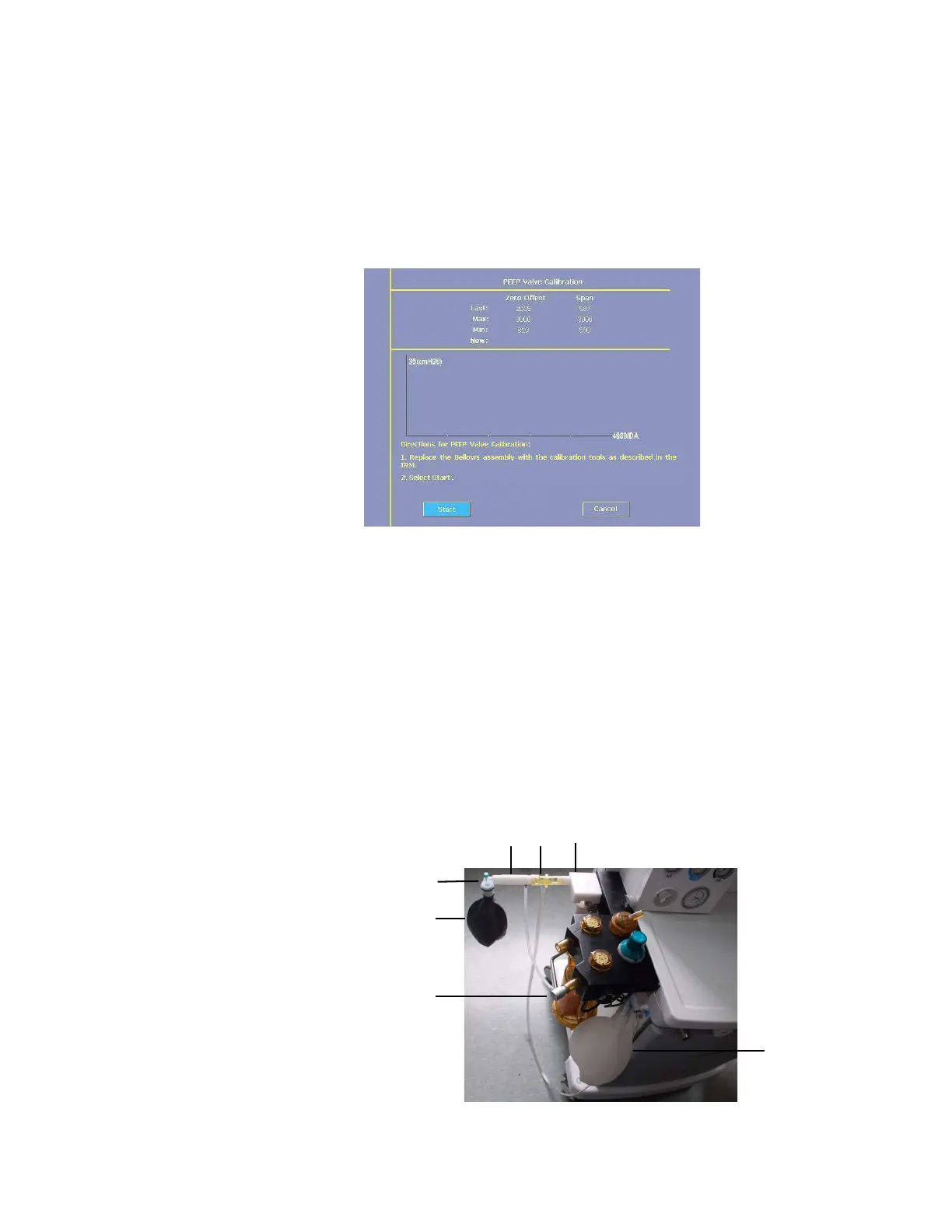

Calibration Setup 1. Remove the bellows assembly, remove the AGSS if equipped.
2. Connect the calibration fixture (A) to the drive gas outlet.
3. Connect the flow sensor (B) to the calibration fixture.
4. Connect the calibration pipe (C) to the flow sensor.
5. Connect a manual bag (D) to the bag port.
6. Connect the calibration fitting (E) to the inspiratory flow port.
7. Connect the tube from calibration pipe to the calibration fitting.
8. Connect the pediatric bag(1L) (F) to the calibration pipe using
elbow fitting (G).
Ensure that the test tubing is leak free.
D
A
B
C
E
F
G
