GE 9100c - Cylinder Gas Supplies

10 Illustrated Parts
M1207026 10-13

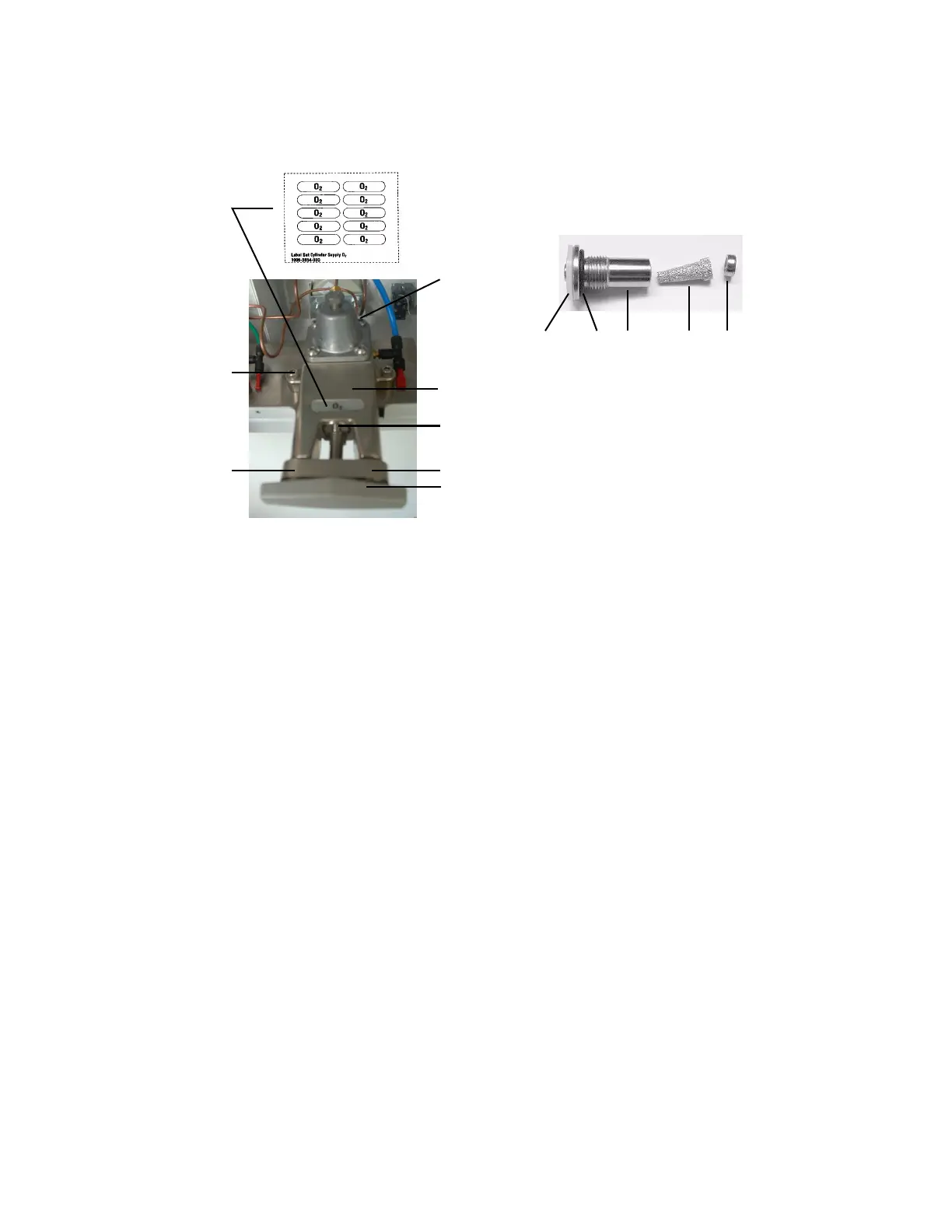

10.9 Cylinder gas supplies
8
6
3
7
1
4
5
2
3a 3b 3c 3d 3e
Item Description Stock number
1 Gas supply O
2
, Pin Index 1006-3201-000
Gas supply N
2
O, Pin Index 1006-3225-000
Gas supply Air, Pin Index 1006-3203-000
2 Screw, M6x25 socket head cap (3 per supply)
Lockwasher, M6 external (for above screw)
M1168570-S
9213-0560-003
3 Cylinder inlets (Pin Index) --------------------
3a Gasket 0210-5022-300
3b* O-ring 9221-3013-116
3c Adapter, inlet 1001-4075-000
3d Filter, sintered bronze 9914-6380-000
3f Retaining ring, filter 1001-5954-000
4 Clamp, yoke 1001-4076-000
5 Tee handle beige 0219-3372-600
6 Spacer, gas block (2)
Screw, M8 x 25 long socket head cap (2)
1001-4077-000
9211-0680-253
7 Elbow fitting for cylinder pressure gauge (copper tube connection of gas
supply)
1006-3713-000
8 Label Set, cylinder supply, O
2
Label Set, cylinder supply, N
2
O
Label Set, cylinder supply, Air
1006-3854-000
1006-3855-000
1006-3856-000
* Lubricate sparingly with Krytox
M1207027 004 MANUAL−DOC, Technical Reference Manual, Technical Reference Manual for 9100c, English−default
