9100c
10-18 M1207026

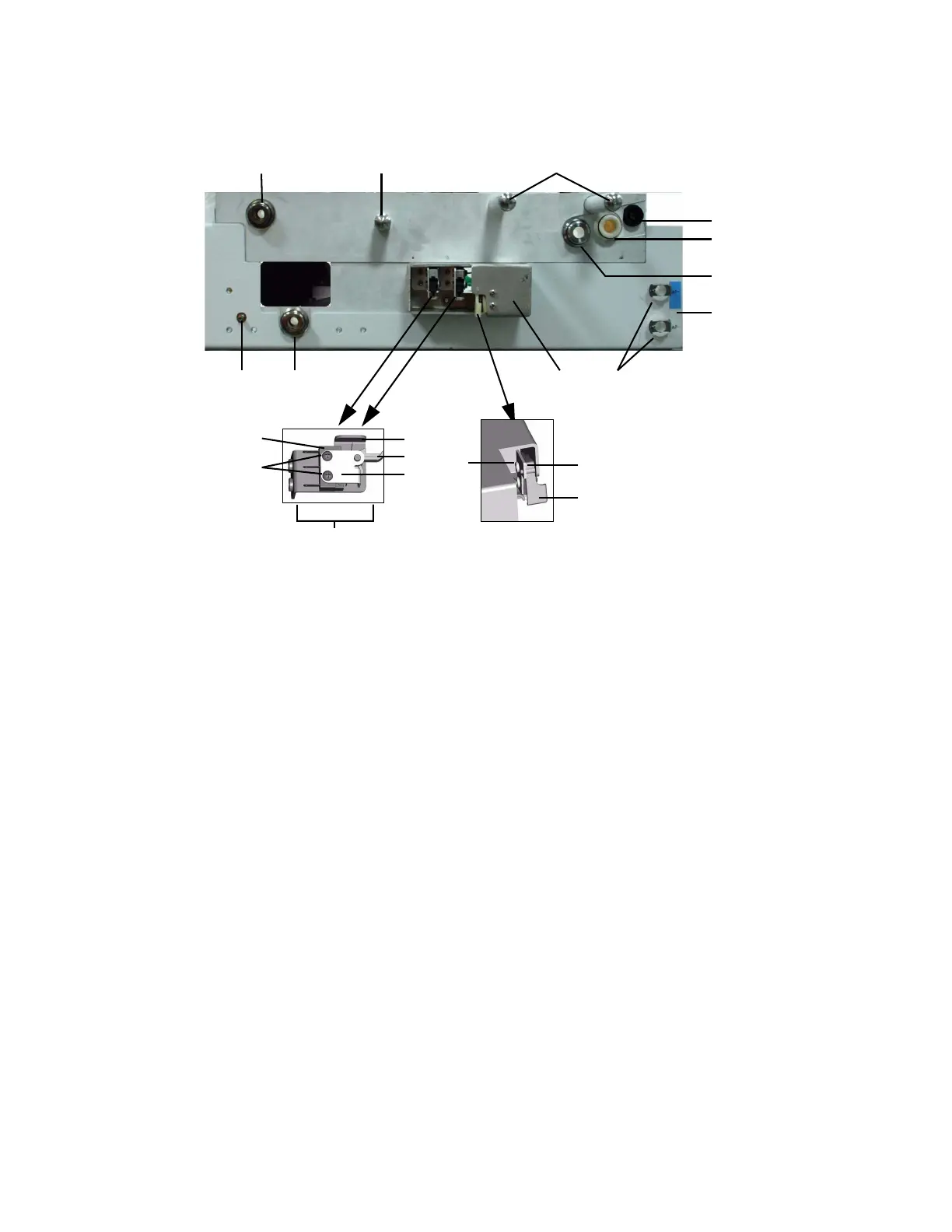

10.13 Breathing system interface
1 (2*, 3) 4 (5, 6)
1 (2*, 3)
1 (2*, 3)
8 (5, 6, 7)
9 (10)
11 (2*, 3)
12
13
14 (15)
16
23
17
25
19
20
23
22
18 (24)
21
Item Description Stock number Qty
1 Common gas outlet
Drive gas port
Pilot pressure port
M1207613-S
2* Seal, U-Cup 12.7 ID 19.05 OD BCG EPR 1407-3320-000
3 Ring, retaining 15.88 Shaft Dia Type E SST 1406-3446-000
4 Pin, lock BS M1188143-S
5 Nut, lock BS M1198763-S
6 Washer, 65Mn/Ep Ni, lock washers external teeth 8 M1198766-S
7 Orientation Pin M1188079-S
8 Cover, Orientation Pin M1188083-S
9 Connector, bulkhead O
2
Cell, with harness 1009-5586-000
10 Ring, retaining 9.53 Shaft Dia Type E SST 1406-3277-000
11 Port, sample gas 1407-3318-000
12 Label, flow sensor connector M1202930-S
13 Flow sensor connector M1171749-S
14 Frame, microswitch M1187393-S
15 Screw, M4x12 M1168460-S (3)
16 Fitting, Mount Panel 3.18 HOSE BARB UNION 1504-3014-000
17 Swing, Bypass switch M1187399-S
18 Microswitch component M1198837-S
19 Bracket 1407-3319-000
20 Lever 1407-3325-000
21 Bracket 1407-3324-000
22 Screw, M2.5x10 1009-3153-000
23 Switch, subminiature w/QDISC terminals 1406-3285-000
24 Screw, M3x12 M1168429-S (2)
25 Bracket Paddle Hinge M1187404-S
* Lubricate sparingly with Krytox.
