GE 9100c - Pipeline Inlet Fittings

9100c
10-12 M1207026

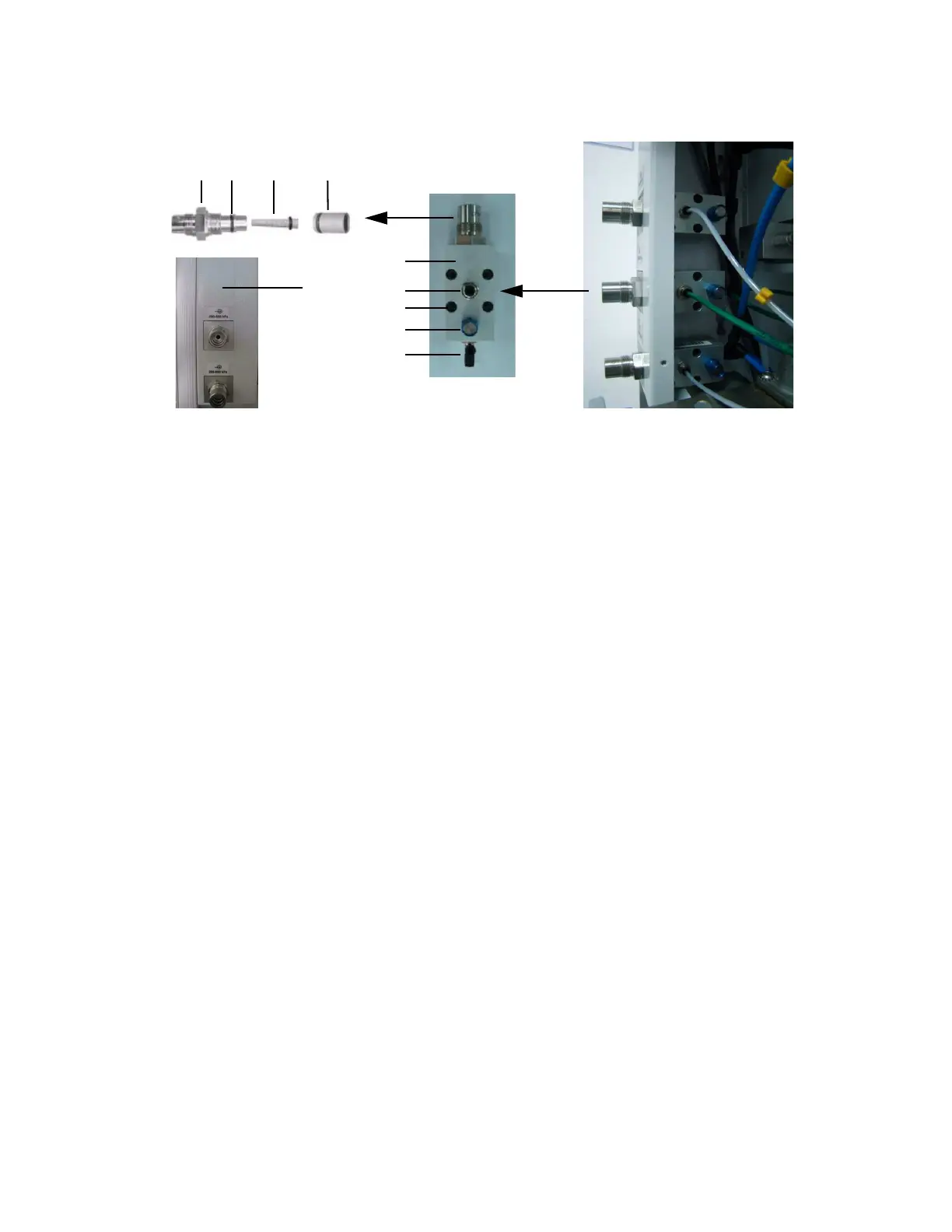

10.8 Pipeline inlet fittings
12 3 4
10
5
6
7
8
9
Item Description Stock number
1 Pipeline inlet - O
2
fittings --------------------
Body, O
2
DISS M1164436-S
Body, O
2
NIST M1166464-S
Body, O
2
DIN 1006-5161-000
Body, O
2
G 3/8 BSPP 1006-5170-000
1 Pipeline inlet - N
2
O fittings --------------------
Body, N
2
O DISS M1164438-S
Body, N
2
O NIST M1166459-S
Body, N
2
O DIN 1006-5162-000
Body, N
2
O G 3/8 BSPP 1006-5171-000
1 Pipeline inlet - Air fitting --------------------
Body, Air DISS M1195166-S
Body, Air NIST M1195164-S
Body, Air DIN 1006-5163-000
Body, Air G 3/8 BSPP 1006-5172-000
2 O-ring, bore seal M1168803-S
3 Sintered metal filter M1167401-S
O-ring M1168797-S
4 Pipeline check valve with o-ring M1169175-S
5 Gas Inlet Manifold (replacement) --------------------
O
2
M1164430-S
N
2
O M1164426-S
Air M1195162-S
6 Adapter, pressure gauge (with o-ring) --------------------
O
2
and Air M1169184-S
N
2
O M1169131-S
7 Screw, M4x12 M1168460-S
8 Relief valve, 758 kPa (110 psi) 1011-3049-000
9 Adapter, low-pressure regulator (with o-ring) --------------------
O
2
M1169128-S
N
2
O M1169133-S
Air
*Legris fitting 8 mm - 6 mm, Air drive gas
M1173113-S
M1210021-S
10 Label, pipeline inlet blank 1009-3197-000
* If Air is selected as drive gas, the legris fitting will be connected to the Air adapter. Replace as necessary.
