GE 9100c - Rear Panel Components

10 Illustrated Parts
M1207026 10-9

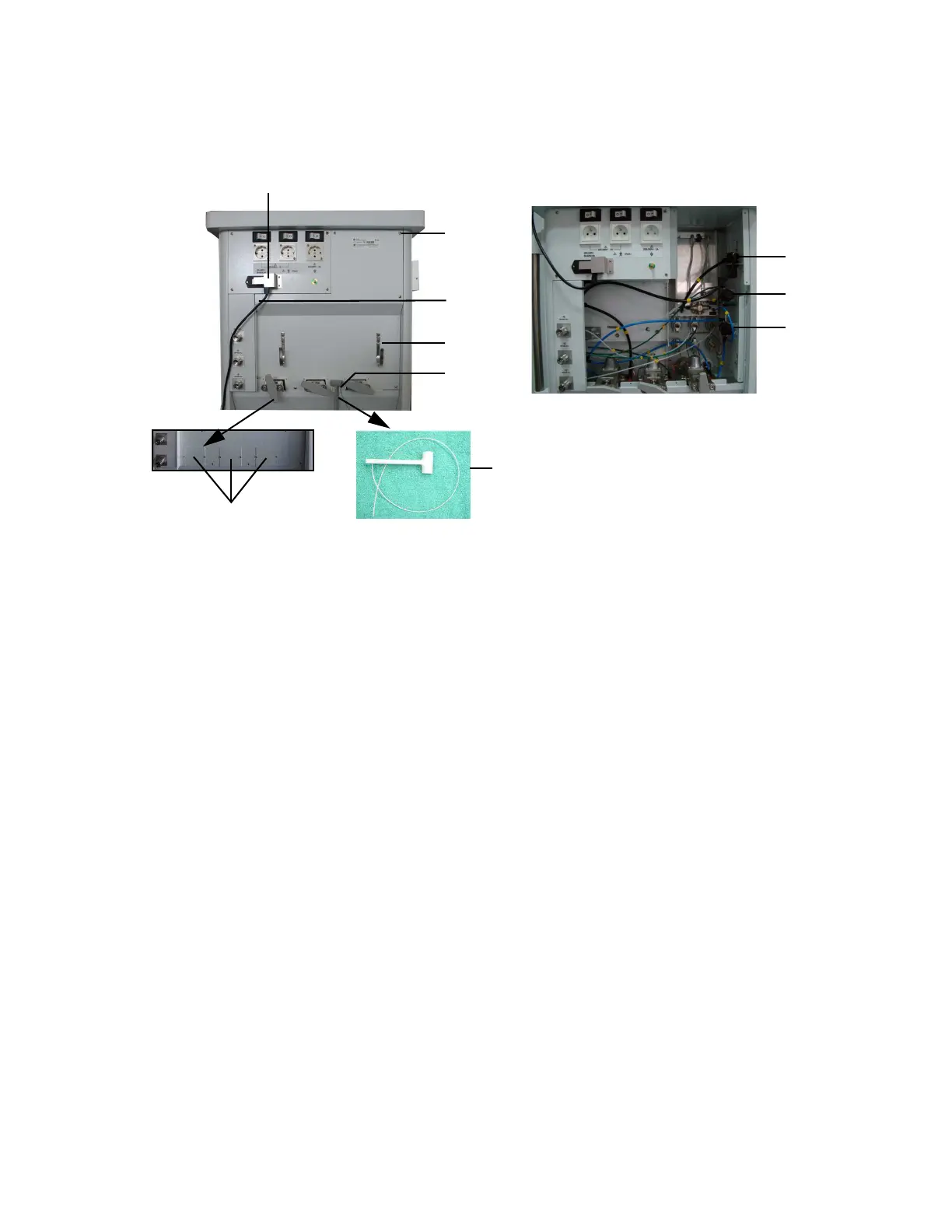

10.6 Rear panel components
1 (2)
5 (6)
11 (12)
13
14
15
3
7
8 (9, 10)
4
Item Description Stock number Qty
1 Clamp, power cord retainer M1195153-S
2 Screw, M3x6 M1169246-S (2)
3 Screw with washer, M4x10 M1168760-S (8)
4 Power Cord
China, 220-240 VAC AS 3112
Peru, 220-240 VAC NEMA
EURO and France, 220 VAC CEE 7/7
India and South Africa, 220-240 VAC BS546
US, 110-120 VAC NEMA
--------------------
M1053942
1006-3882-000
1001-3380-000
1006-3885-000
1006-3907-000
5 Cable hook M1166519-S
6 Screw, M4x8 M1168645-S (2)
7 Wrench holder M1169624-S
8 Wrench, Pin Index cylinder (with cable and ferrule) 0219-3415-800
9 Cable 1010-3049-000
10 Ferrule, cylinder wrench cable retainer 1001-3708-000
11 Cover, regulator yoke (if no regulator) 1009-3121-000
12 Screw, M3x6 M1169246-S (2)
13 Air regulator valve assembly M1198714-S
Adapter, Air inlet and outlet M1173113-S
14 N
2
O regulator valve assembly M1198713-S
Adapter, N
2
O inlet and outlet M1169131-S
15 O
2
regulator valve assembly M1198712-S
Adapter, O
2
inlet M1169127-S
Adapter, O
2
outlet M1169128-S
