2.6 9100c Ventilator components
Major components of the 9100c ventilator are found in different
locations of the anesthesia machine.
The ventilator package consists of:
1. Display Module – The Display Module includes:
• Display Monitor Board
• LCD Display
• Keyboard (with rotary encoder switch)
2. Control Sample Board (under tabletop).
3. Vent Engine (under tabletop).

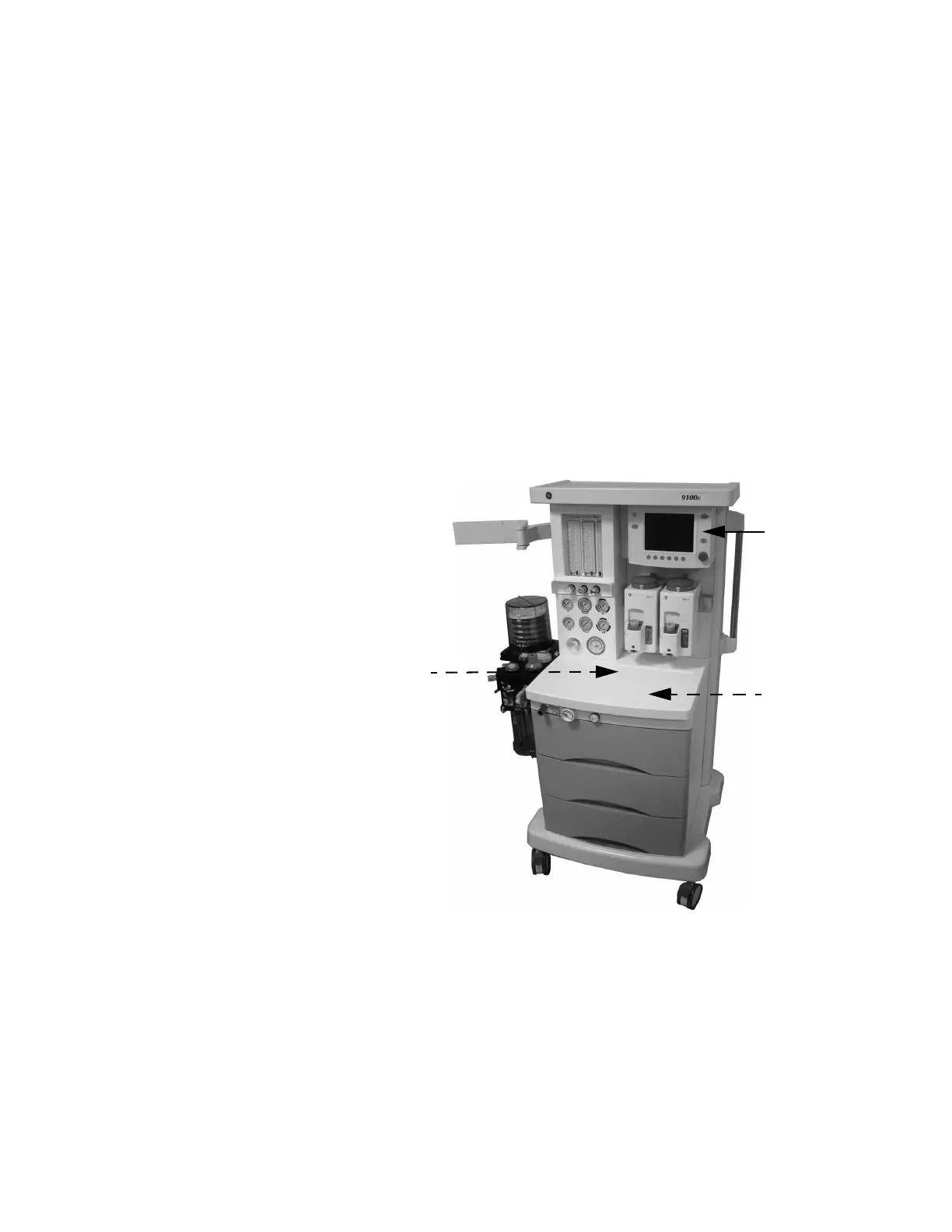

Figure 2-4 • Location of 9100c ventilator components
