9.17 Service the Vent Engine
The Vent Engine is located underneath the tabletop.

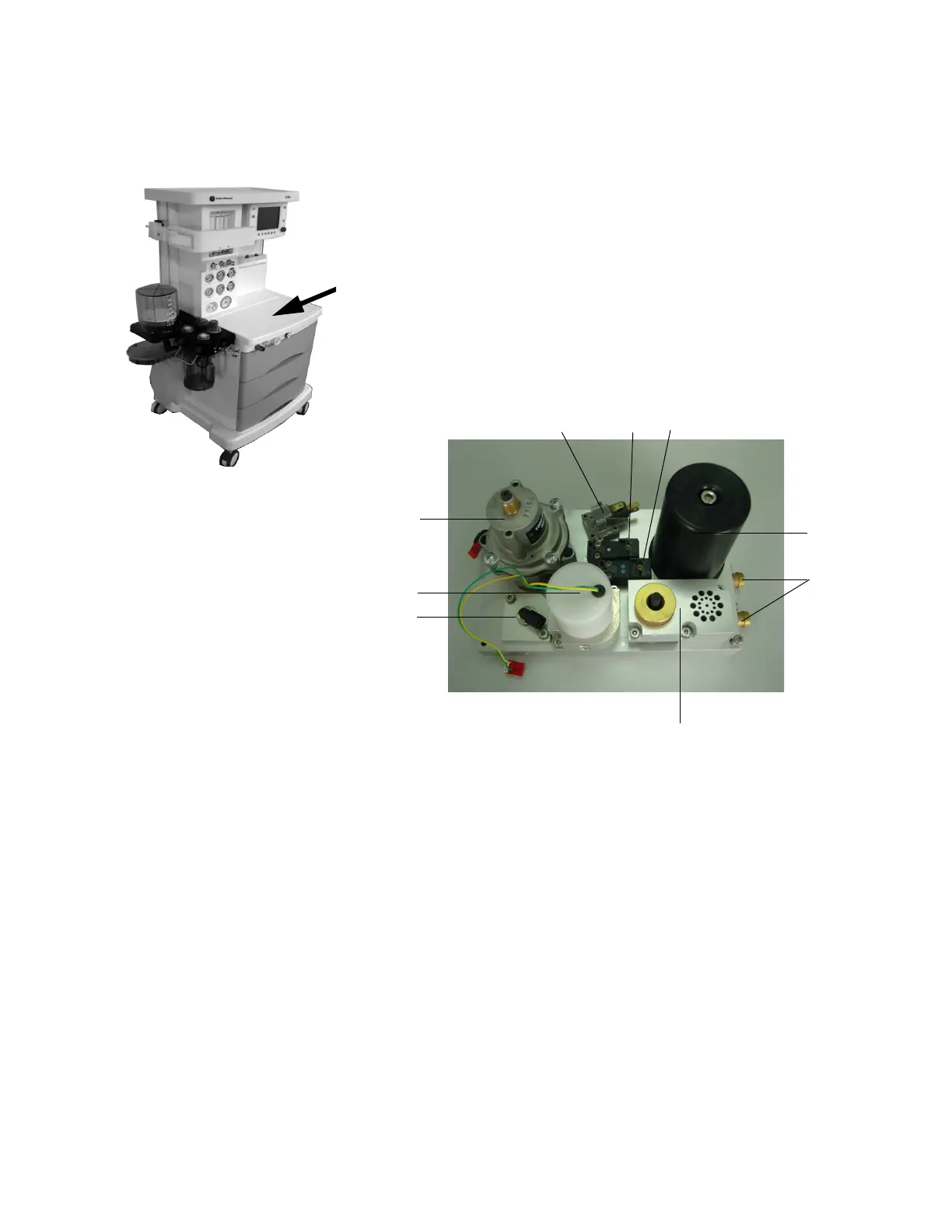

The Vent Engine includes the following subassemblies.
• Supply Pressure Switch (1)
• PEEP Safety Valve (2)
• PEEP Control Valve (3)
• Reservoir (4)
• Drive Gas Ports (5)
• MOPV and Free Breathing Valve Seat (6)
• Inlet Filter - located under the gas inlet valve (7)
• Flow Control Valve (8)
• Drive Gas Regulator (9)
9
8
4
7
6
5
