GE 9100c - Replace vaporizer manifold check valve

9 Repair Procedure
M1207026 9-19
9.10.3 Replace
vaporizer manifold
check valve
1. Bleed all gas pressure from the machine (Section 9.1).
2. Ensure that all cylinder and pipeline gauges read zero before
proceeding.
3. Remove the vaporizers from the vaporizer manifold.
4. Remove the upper rear panel. (Section 9.2)

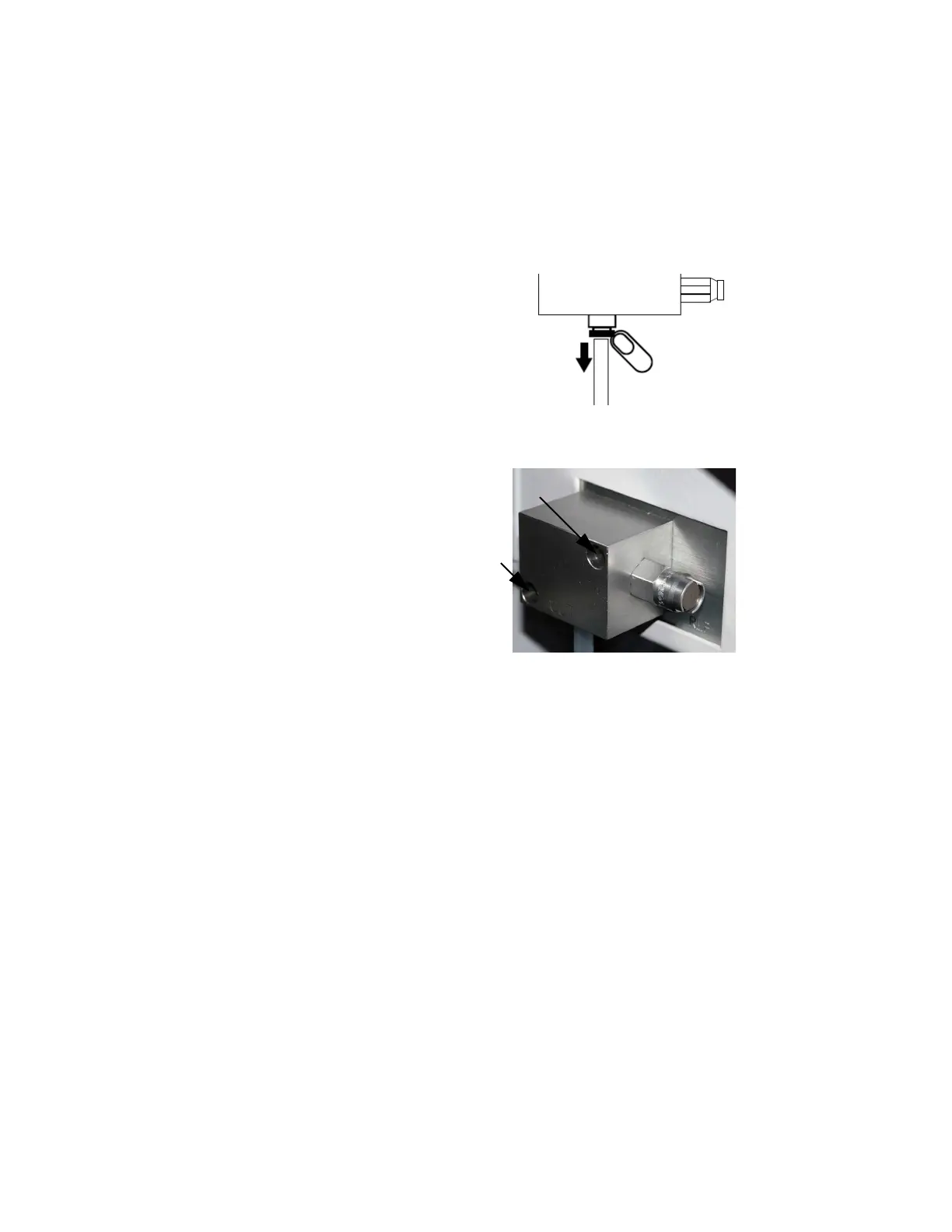

5. Disconnect the tubing from bottom of the valve block.
6. Loosen the two screws to remove the valve block.
Note The valve body, o-ring, and flapper do not come out with the block.
They stay intact at the back of the vaporizer manifold.
