GE 9100c - EZchange Canister System (CO2 Bypass)

9100c
10-28 M1207026

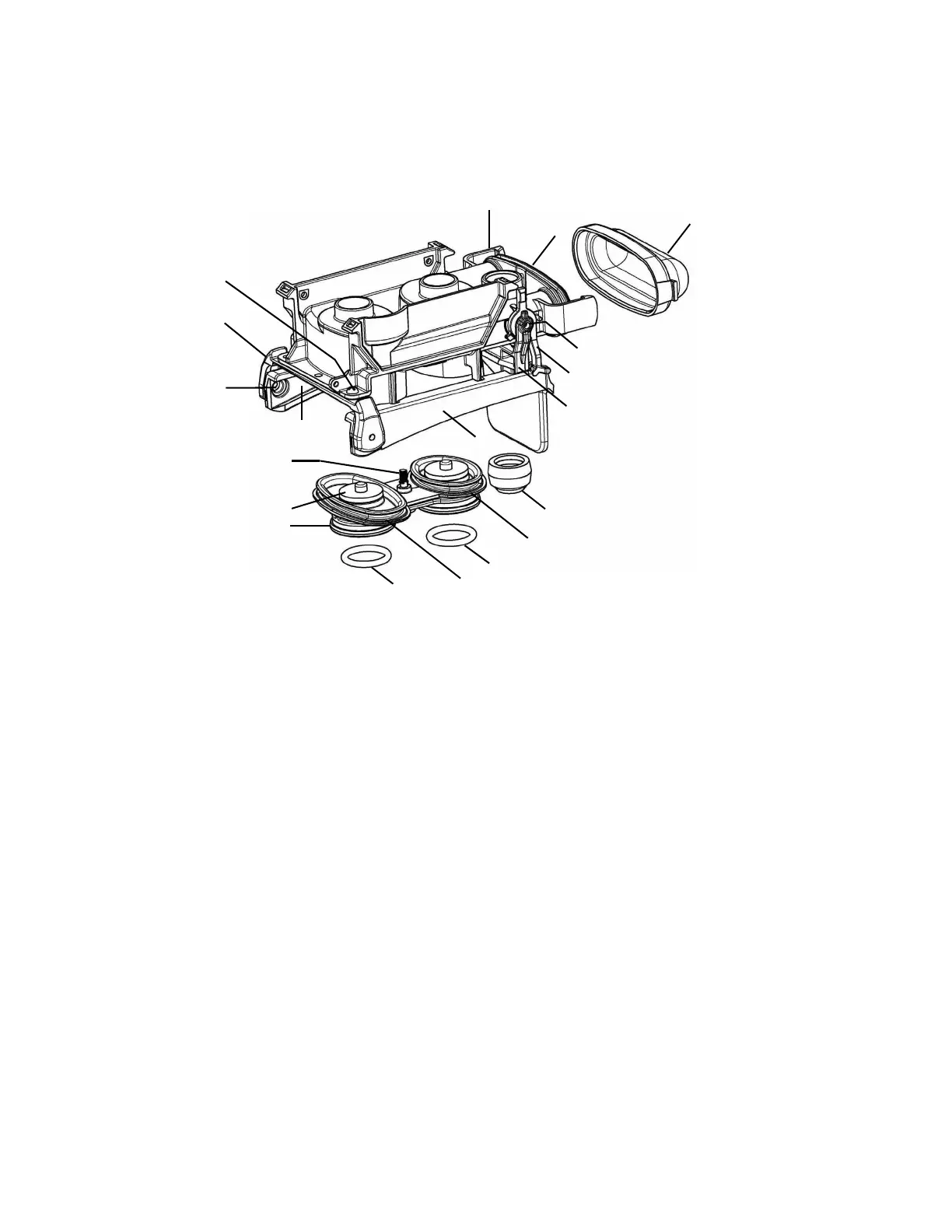

10.14.10 EZchange Canister System (CO
2
Bypass)
1
2
3
4 (5)
6
7
8
9
11
10
11
12
***
13 (14)
16 (17)
15
18
19
Item Description Stock number Qty
EZchange Canister Module M1202535-S
1 Manifold, Bypass 1407-3113-000
2** O-ring, 59.92 ID 66.98 OD 3.53 W SIL 50 DURO 1407-3142-000
3 Cap, Manifold 1407-3130-000
4 Lever, Switch Actuator 1407-3116-000
5 Spring, Torsion Switch Actuator Lever 1407-3117-000
6* Screw, M3x0.5 Shoulder 4 DIA X 4 L SST 1407-3915-000 (2)
7 Lever, Canister Latch 1407-3115-000
8 Seal, Drain 1407-3121-000
9** O-ring, 37.69 ID 44.75 OD 3.53 W SIL 50 DURO 1407-3129-000
10** O-ring, 50.39 ID 57.45 OD 3.53 W SIL 50 DURO 1407-3143-000
11** O-ring, OD30 ID 22 4W SIL 40 DURO 1407-3104-000 (2)
12*** Valve, Housing Assembly Bypass 1407-3126-000
13 Screw, Thumb M4 Shoulder 1407-3410-000
14 Ring, Retaining 3.96 Shaft DIA SST 1407-3411-000
15 Cradle Canister 1407-3118-000
16 Screw, M4x10 CSK SKT HD SST TYPE 0140-6226-119 (2)
17** Spacer, Shoulder 6.8 DIA x4.1 L 1407-3120-000 (2)
18 Support, Cradle Pivot 1407-3119-000
19 Screw, M4x8 Sems BT SKT HD SST 316 0144-2436-108 (3)
* Apply Loctite 242.
** Lubricate sparingly with Krytox.
*** Rubber valve seats can not be removed from assembly (Item 12).
M1207027 004 MANUAL−DOC, Technical Reference Manual, Technical Reference Manual for 9100c, English−default
Reproduced from the electronic master in MATRIX
