Chapter 8 - Replacement Procedures 8-45
2.) Unscrew 9 screws located in the bottom of the OPIO and lift up the MAIN OPIO. Refer to the figure
below.
3.) Lift up the MAIN OPIO and disconnect 3 cables from the OPIO HUB PWA. Refer to the figure below.

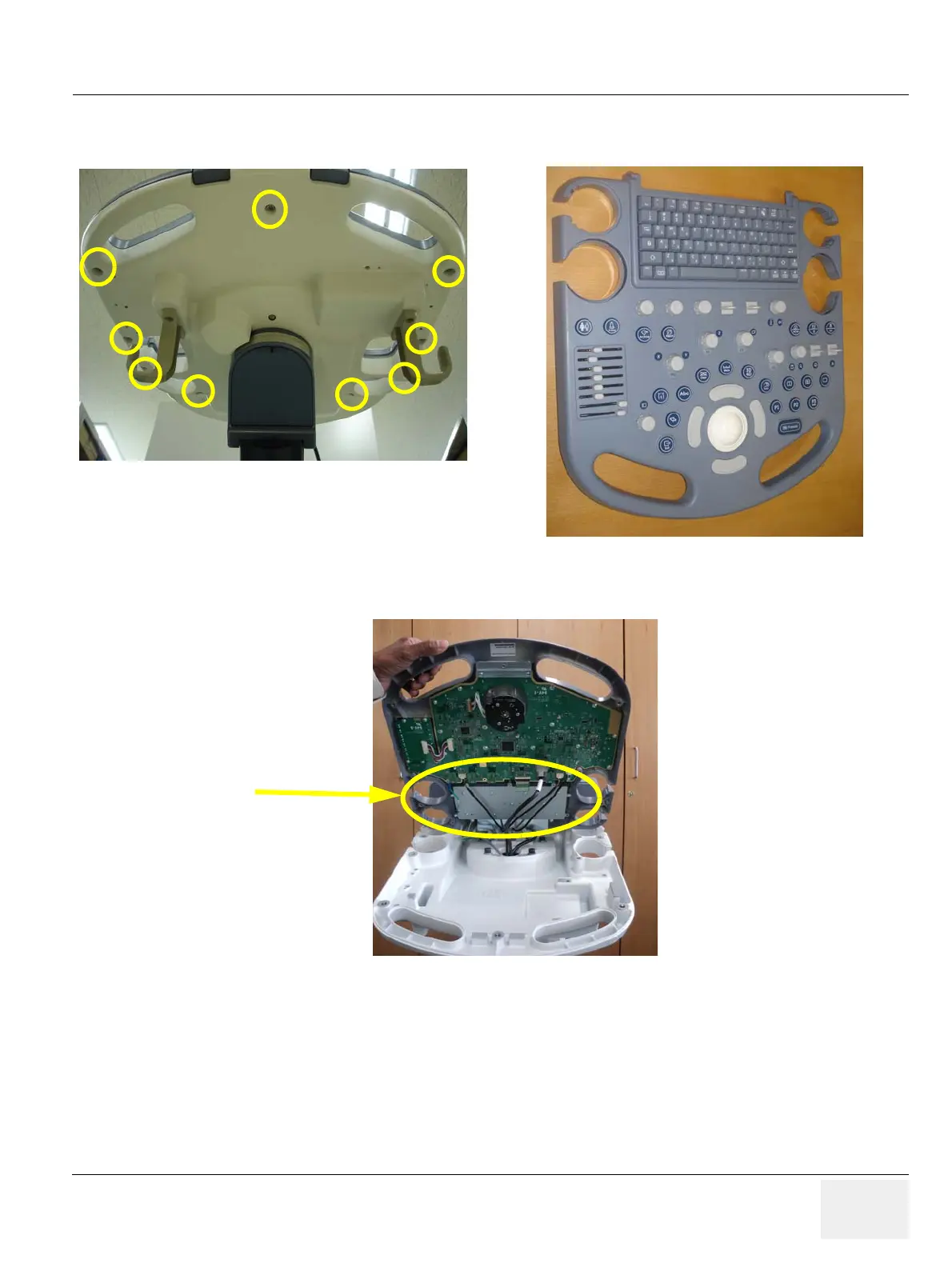

Figure 8-53 Unscrewing 9 screws and lifting up the MAIN OPIO
Figure 8-54 Disconnecting 3 Cables from the MAIN OPIO
Cables
