8-46 Section 8-19 - Replacement of the Trackball

4.) Disconnect the TRACKBALL CABLE from the OPIO HUB PWA. Refer to the figure below.

5.) Unscrew 2 screws and then pull out the TRACKBALL from the MAIN OPIO. Refer to the figure

below.

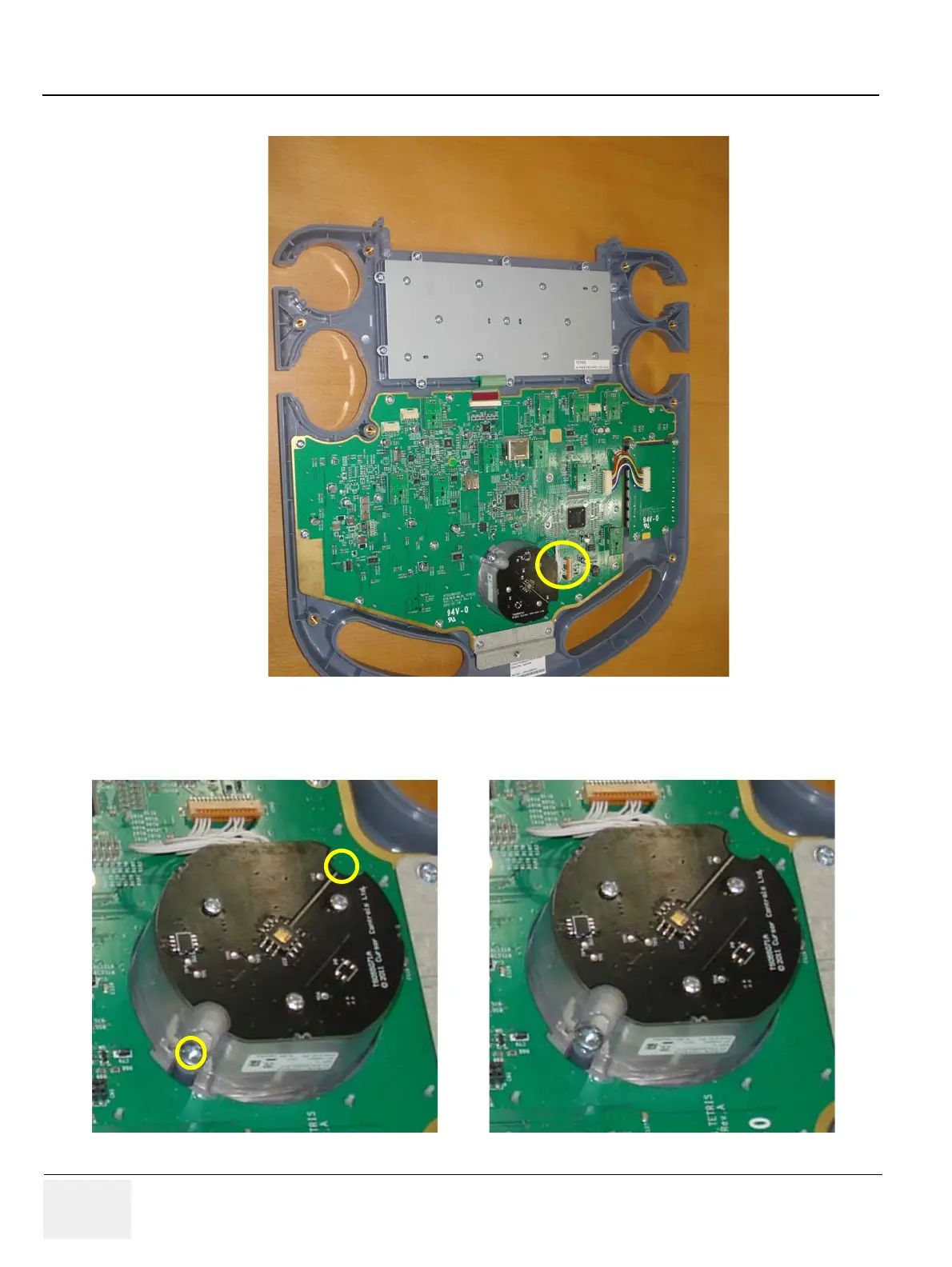

Figure 8-55 Disconnecting the TRACKBALL CABLE

Figure 8-56 Unscrewing 2 screws and pulling out the TRACKBALL
