Chapter 3 Settings and Measurement
Contents General Description
Checks and Preparation
Settings and Measurement
Example of Use Specification
<Example of operation procedure>
An example of the operation procedure for easy capture setting is described below.

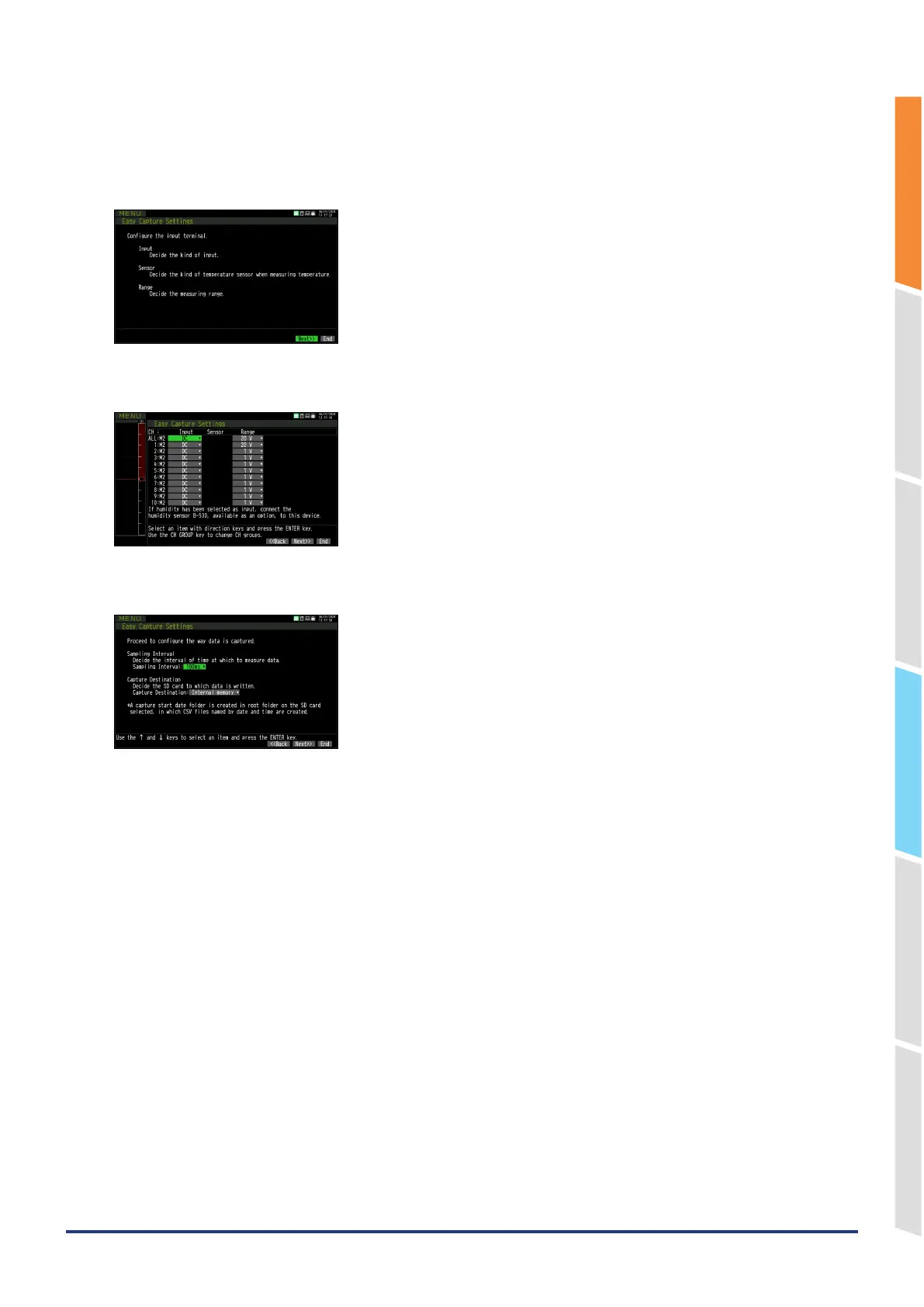

1. Select the “Easy Capture Settings” and then press the [ENTER] key to display the following menu screen.
2. When the settings (input, sensor, and range) are satisfied, select the “Next>>” and then press the [ENTER] key.
The “Input, Sensor, and Range, etc.” screens are displayed. Set the necessary items.
3. After setting, when the “Next>>” is selected and then the [ENTER] key is pressed, the “Sampling,Interval, Capture
Destination” screens are displayed. Set the necessary items.
4. After setting, when the “Next >>” is selected and then the [ENTER] key is pressed, the setting information and notes
on measurement are displayed.
When the “Finished” is displayed, the operation exits by pressing the [ENTER] key.
When you want to finish the operation in the middle, the operation can be finished by pressing the [NAVI] or [QUIT]
key.
The basic workflow to perform “Easy Capture Settings” is as above.
The setting procedure varies depending on the other setting item. However, you can set them by operating in
accordance with the instructions displayed on the menu.
