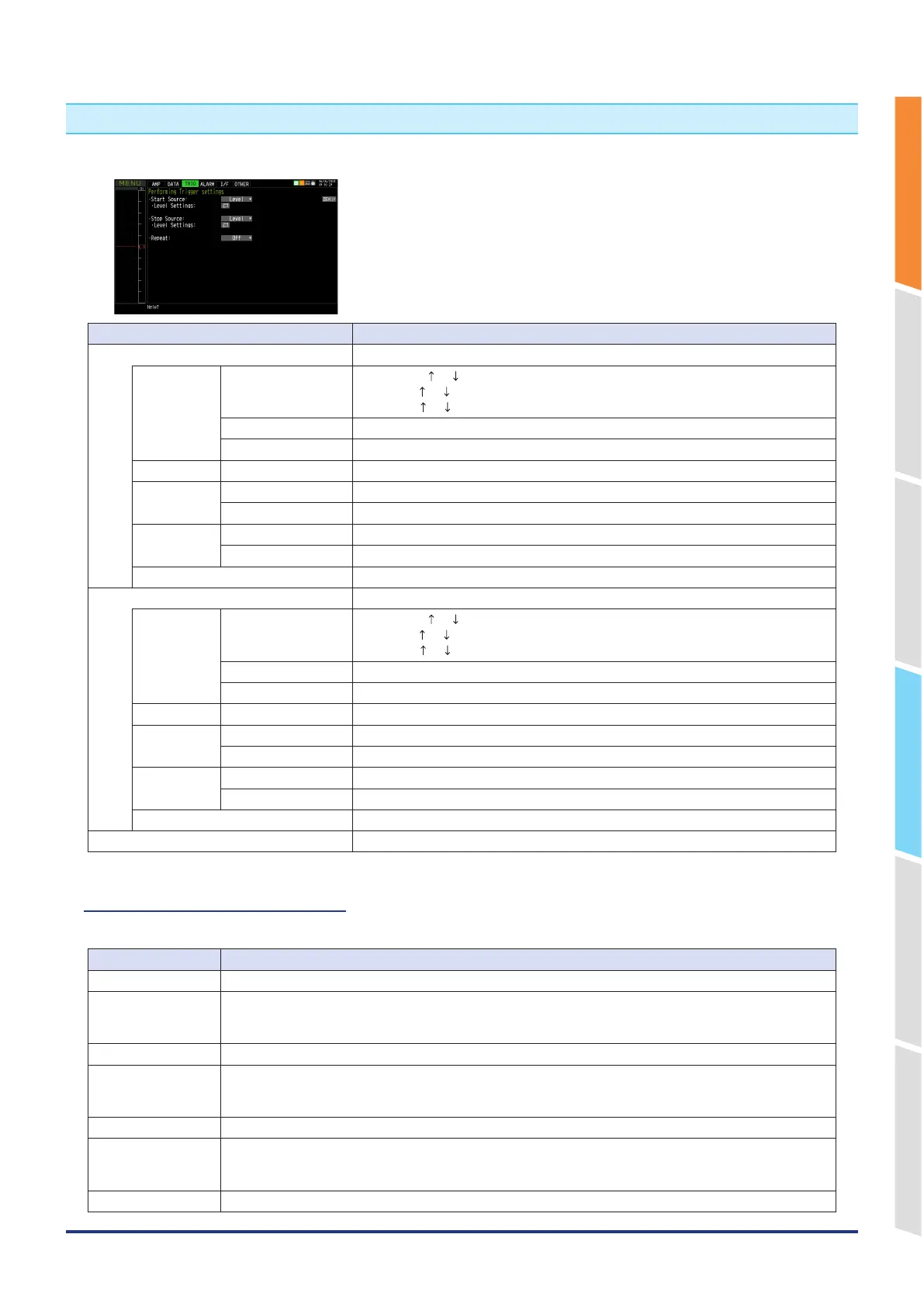

3. TRIG settings
Set the trigger conditions.
Setting Selections available
Start Side Source Setting Off, Level, Alarm, External Input, Date, Weekly, Time
Level Mode Analog: Off, H, L, Window In, Window Out
Logic: Off, H, L
Pulse: Off, H, L, Window In, Window Out
Combination Level OR, Level AND, Edge OR, Edge AND
Level Set numeric value
Alarm Alarm port number 1, 2, 3, 4
Date Date From 2023.1.1 to 2035.12.31
Time From 0:0:0 to 23:59:59
Weekly Day of week Off or On setting for each of Sunday through Saturday
Time From 0:0:0 to 23:59:59
Time From 0:0:1 to 9999:59:59
Stop Side Source Setting Off, Level, Alarm, External Input, Date, Weekly, Time
Level Mode Analog: Off, H, L, Window In, Window Out
Logic: Off, H, L
Pulse: Off, H, L, Window In, Window Out
Combination Level OR, Level AND, Edge OR, Edge AND
Level Set numeric value
Alarm Alarm port number 1, 2, 3, 4
Date Date From 1/1/2024 to 12/31/2035
Time From 0:0:0 to 23:59:59
Weekly Day of week Off or On setting for each of Sunday through Saturday
Time From 0:0:0 to 23:59:59
Time From 0:0:1 to 9999:59:59
Repeated Capturing Off, On
3-1. Start side source setting
This is used to specify trigger conditions to start data capture.
Selection item Description
Off Starts capturing data unconditionally when you press the [START/STOP] key.
Level Starts capturing data when a specified level is reached.
–> When Level is selected, the condition for each channel must be set.
Refer to "Trigger Level Settings/Alarm Level Settings" described below.
Alarm Starts capturing data when an alarm is generated in the specified alarm port.
External Input Starts capturing data when an input signal is received from an external trigger terminal.
* A trigger is established at a transition from 5 V (open) to 0 V (shorted to the ground).
A falling edge operation occurs.
Date Starts capturing data when specified date and time arrives.
Weekly Starts capturing data at the specified time on days of the week for which On is set.
<Example> On is set for Mon, Tue, Wed, Thu, and Fri, Off is set for Sun and Sat, and 9:00 is set as the time.
Starts capturing data at 9:00 on weekdays. Does not start capturing data on Sat and Sun.
Time Starts capturing data when a specified length of time elapses.
