2.16 When Fixing the GL860 Main Unit

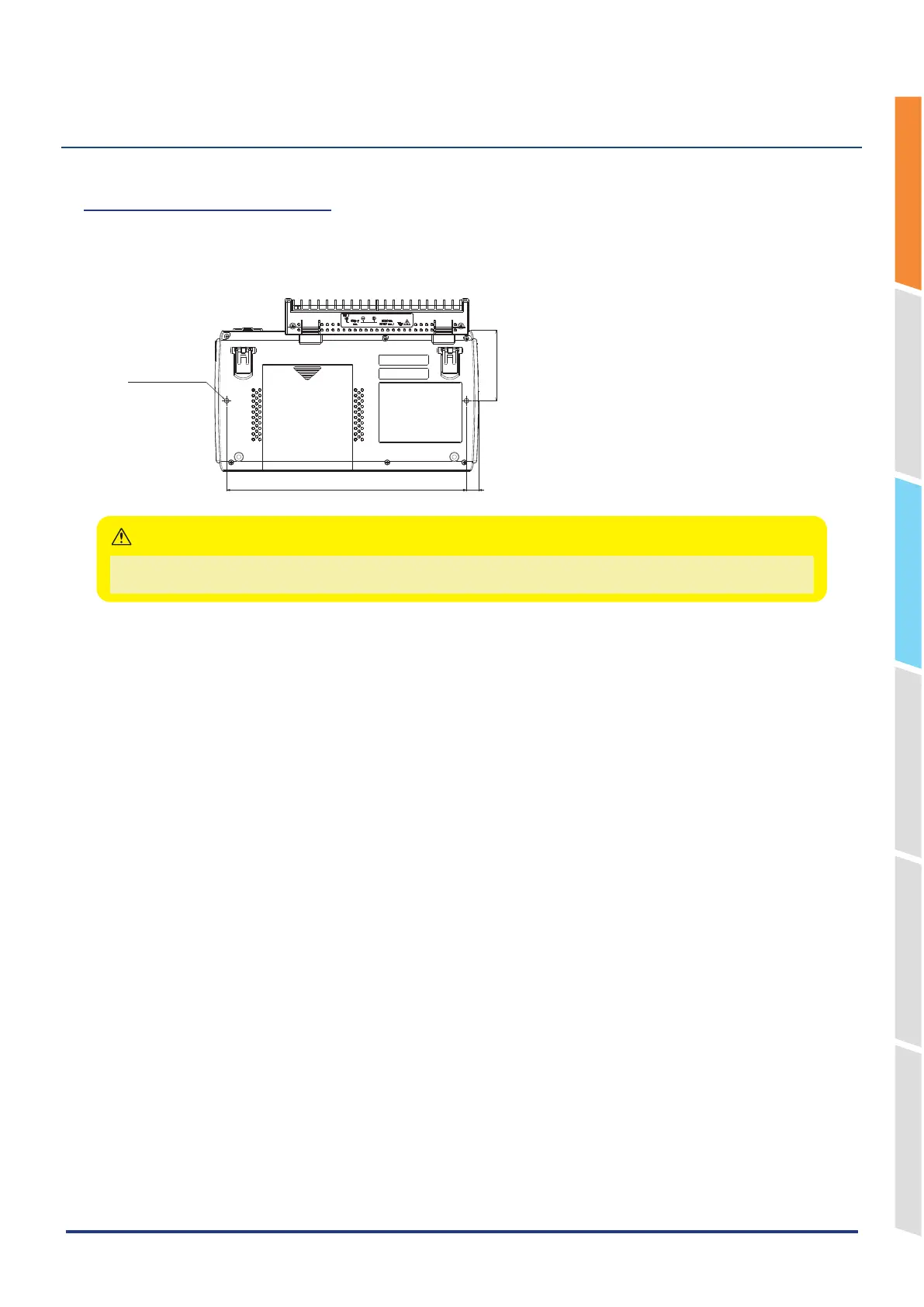

Fixing the GL860 Main Unit
When fixing the GL860 main unit to prevent the dropout of the GL860, the two nuts on the back must be used.
* Recommended tightening torque: 14kgf/cm
When fixing the GL860, it must be installed in a horizontal state rather than in a vertical or inclined state.
218 11
64
2-M4 L5 Nut
To prevent possible malfunction, do not block the air vents of the GL860.
If the GL860 is installed in other than the state described above, the measurement accuracy may not meet the specifications.
CAUTION
