3-12
Chapter 3 Settings and Measurement
Contents General Description
Checks and Preparation
Settings and Measurement
Example of Use Specification

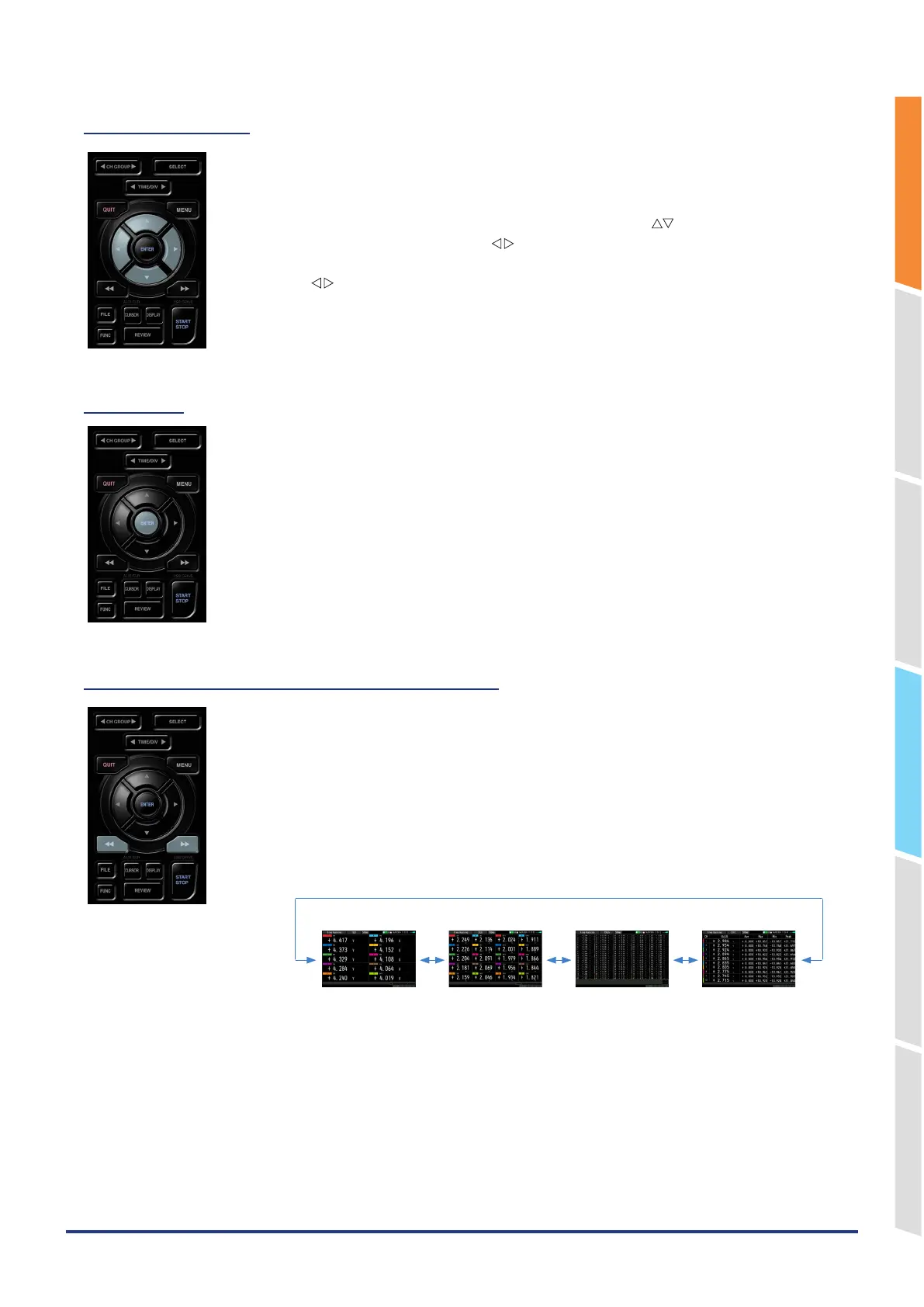

(6) Direction Keys
This key is primarily used for the following operations.
•
To move a menu or setting item during menu configuration.
•
To move the cursor during replay.
•
To move the active channel in the Waveform + Digital. (“ ” keys).
•
To change the Quick setting (“ ” keys).
•
To change the channel to be displayed in the Digital + Calculation Display screen
(“ ” keys).
(7) ENTER
This key is primarily used for the following operations.
•
To finalize setting items during menu configuration or open submenus.
•
When opening the Span/Position/Trace setting menu on the “Waveform + Digital
screen”.
(8) FAST REWIND/FORWARD key (KEY LOCK)
This key is primarily used for the following operations.
•
To move the cursor at high speed during replay.
•
To change the operation mode in the dialog.
•
To set key lock (Hold down the left/right FAST REWIND/FORWARD key for at least
two seconds. Press again to unlock)
A password for canceling the key lock can be specified.
Refer to “13. To cancel key lock by password” in “3.4 Setting Menus” for details.
•
To change the display mode in the Digital + Calculation Display screen.
10ch Mode 20ch Mode 100ch Mode Statistical calculation
