2.3 Mounting and removing each terminal
This section describes the mounting and removing procedure of the Standard 20CH screw terminal.
The Standard 20CH screwless terminal, Standard 30CH screwless terminal and Withstand high-voltage high-precision
terminal can be removed and attached in the same way.
When mounting or removing the standard terminal or Withstand high-voltage high-precision terminal, please make sure
that the GL860’s power is turned OFF.
CAUTION

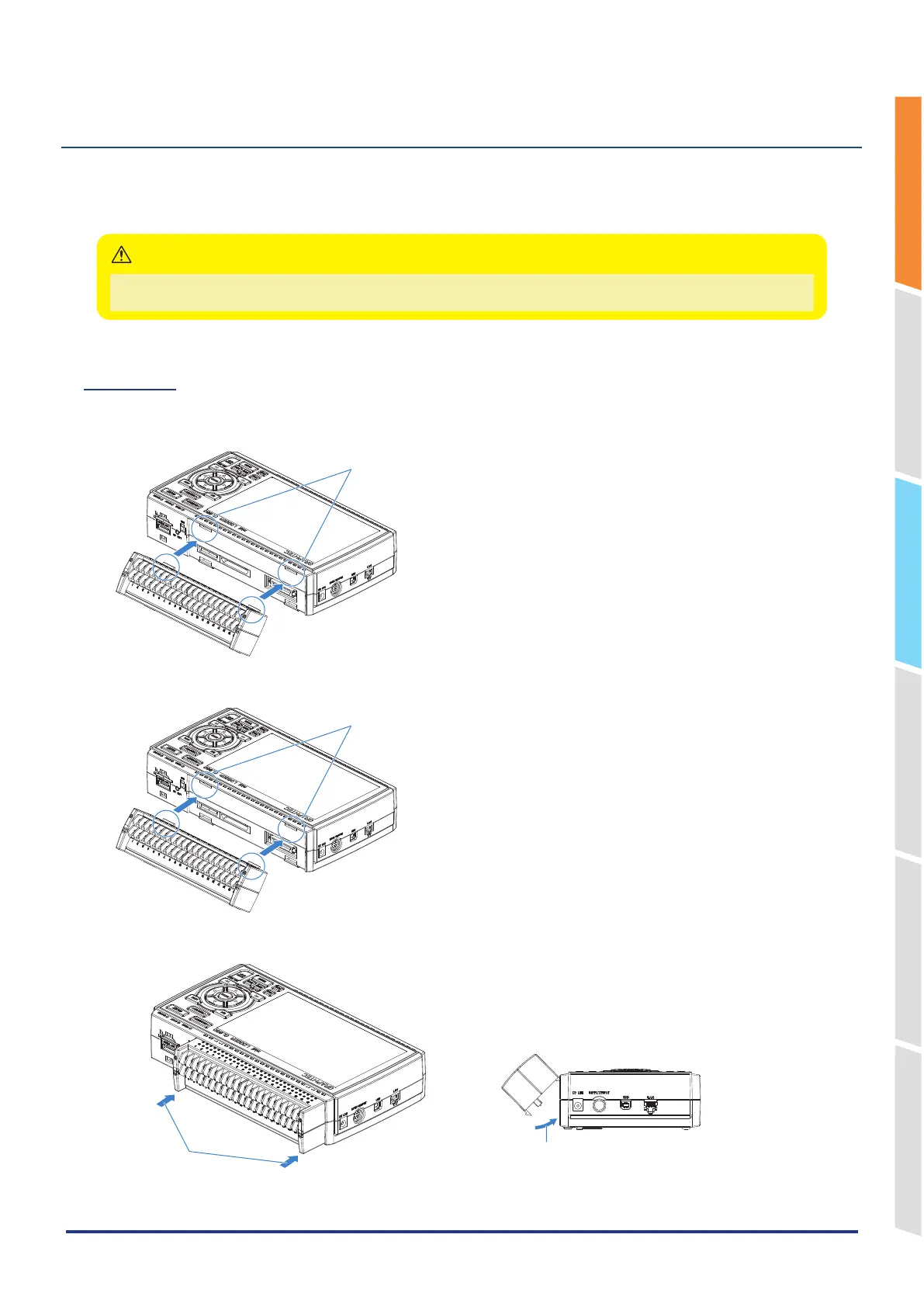

Mounting
Insert the lock tabs at the top of the standard terminal or the Withstand high-voltage high-precision terminal into the
slots of the GL860, and push in the terminal until the lock tabs at the bottom of the terminal are securely locked.
Slot
1. Insert tabs at the top of the terminal unit into the slots.
Insert
2. Press the terminal unit in the direction shown until it is securely locked.
Press
Press
