CHAPTER 2 Checks and Preparation
Contents General Description
Checks and Preparation
Settings and Measurement
Example of Use Specification
The specifications of the Standard 20CH screw terminal (or Standard 20CH/30CH screwless terminal) and the Withstand
high-voltage high-precision terminal are different, so please check the specifications before use.
CAUTION

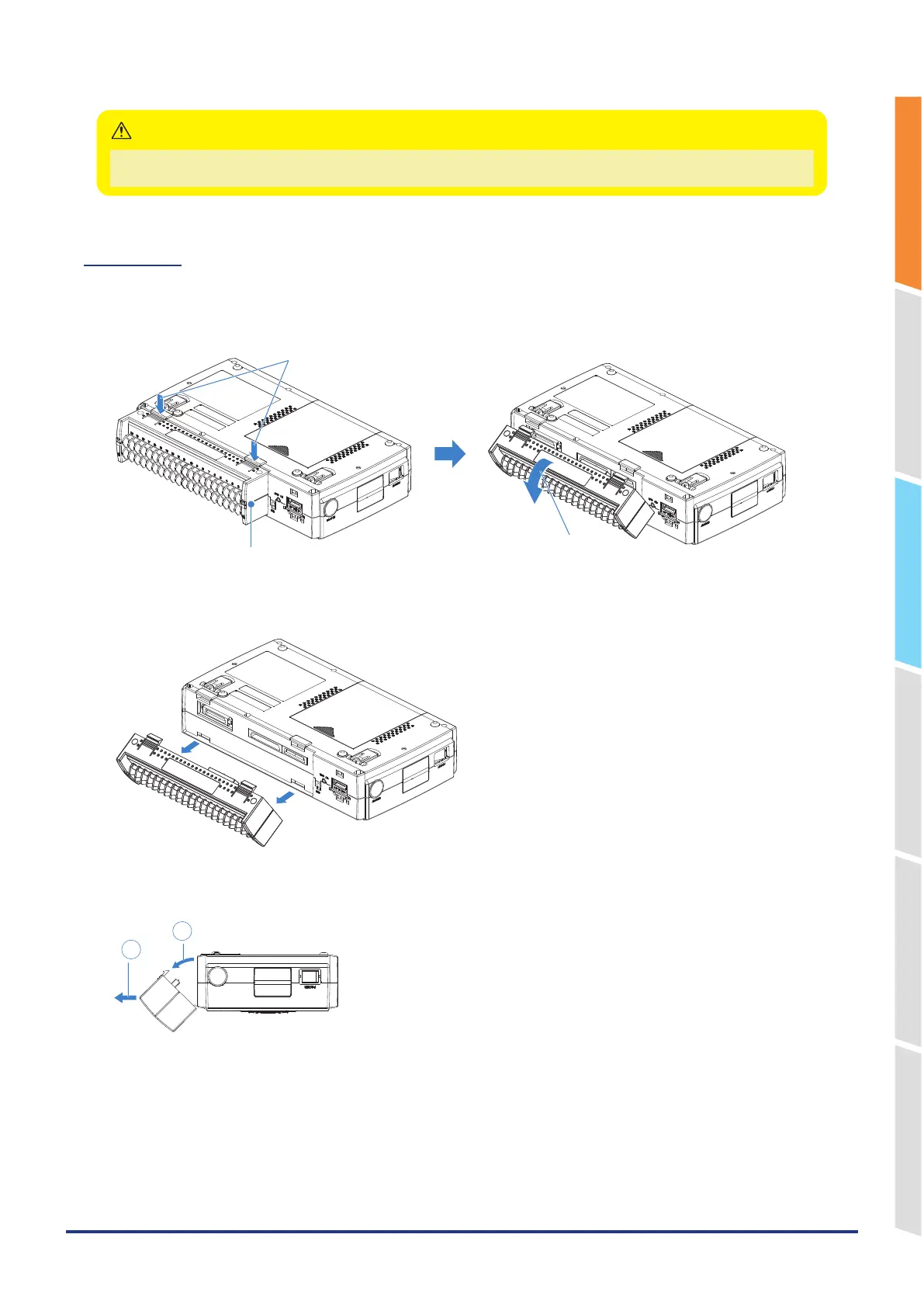

Removing
Pull out the terminal in the direction of the arrow while pressing the lock portion (place) under theStandard 20CH screw
terminal.
1. Press the two lock portions in the direction indicated by arrows.
Lock portion
Terminal unit
Pull out
2. Pull the terminal unit out towards the direction indicated by the arrow.
Pull the terminal unit out as shown in the following figure.
1
2
Bottom
Top
