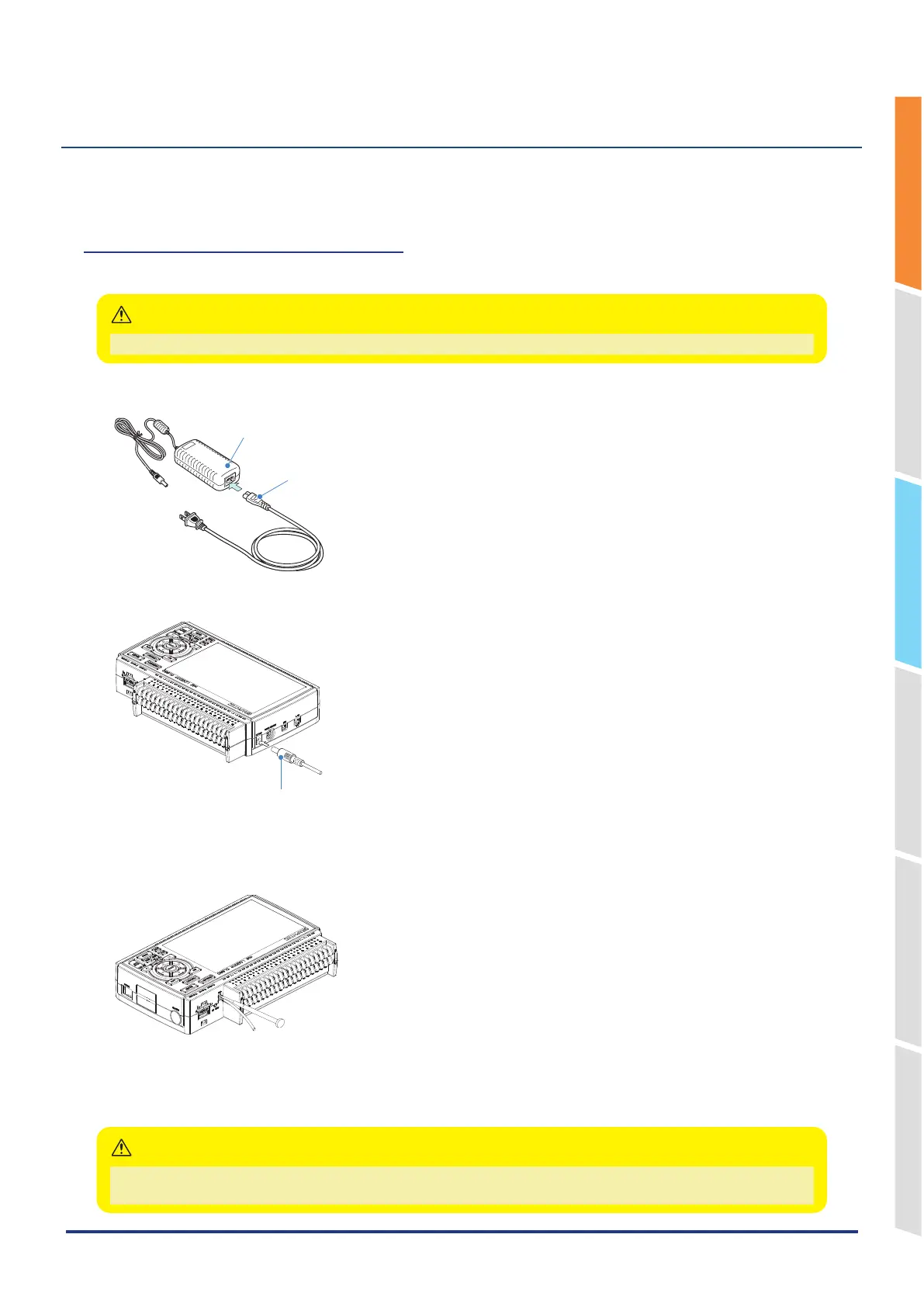

Connecting the Power Cable and Turning on the Power
This section describes how to connect the power cable and turn on the power. The connection method will vary
depending on the type of power supply used.
Connecting to an AC Power Supply
Use the AC cable and AC adapter that are provided as accessories.
Be sure to use the AC adapter that is supplied as a standard accessory.
CAUTION
1. Plug the AC cable into the AC adapter.
AC adapter
AC cable
2. Connect the output side of the AC adapter to the connector on the GL860.
AC adapter cable
3. Using the flat-blade screwdriver, press against the minus (–) button above the GND terminal while connecting the
grounding cable to the GL860.
Connect the other end of the cable to the ground.
4. Plug the AC cable into the main power outlet.
5. Press the power switch on the GL860 to the ON side to turn on the power.
Always connect the GND terminal and refer to the safety precautions.
The GL860 must be grounded even when connected to other devices and sharing a common ground level.
CAUTION
