GRAPHTEC miid LOGGER GL860 - External Dimensions

5-15
Chapter 5 Specification
Contents General Description
Checks and Preparation
Settings and Measurement
Example of Use Specification

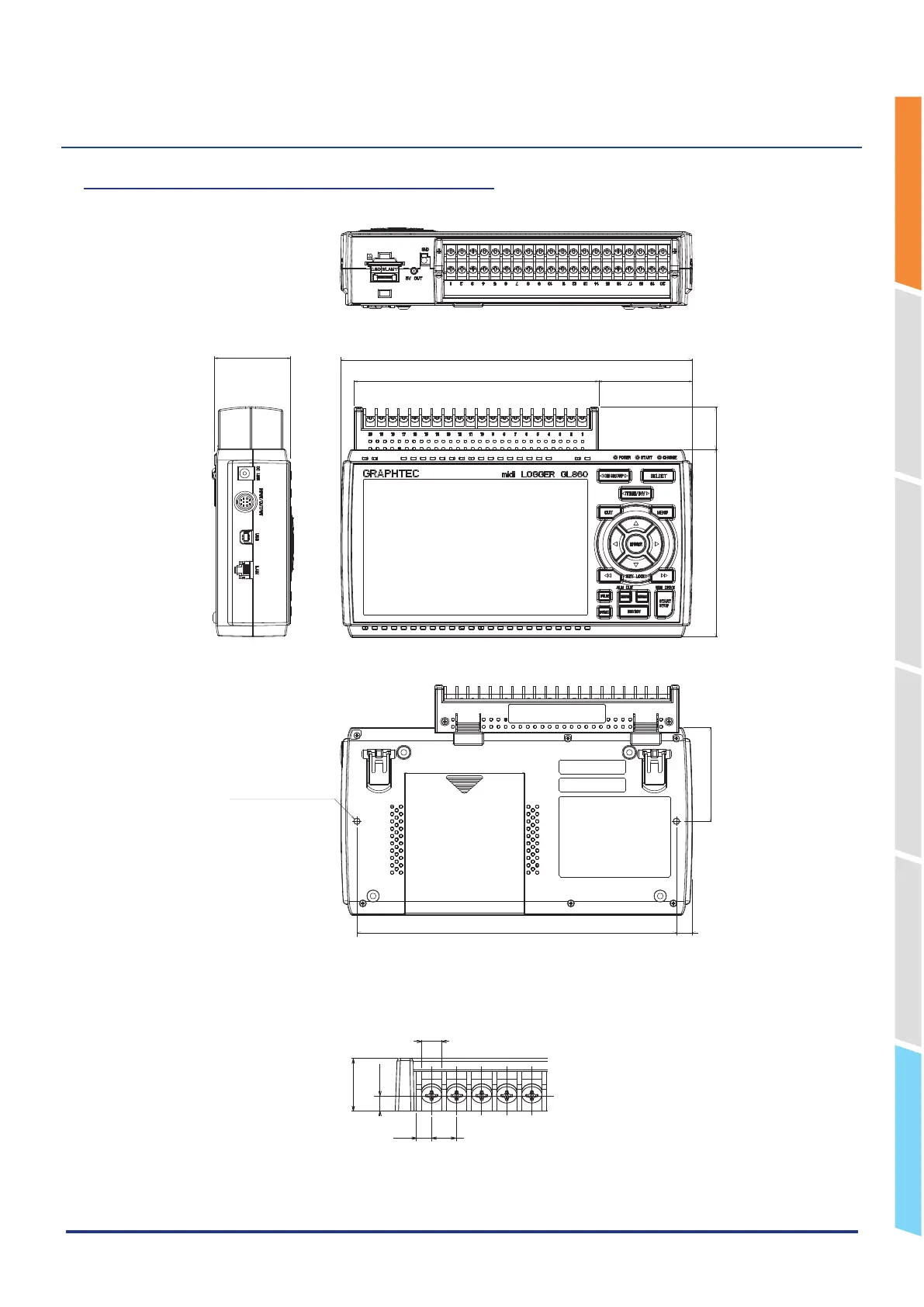

5.4 External Dimensions
GL860 Standard 20CH screw terminal (B-563)
52.5
64
128
30
240
64167
11
218
2-M4 L5 ②②②
Unit: mm
Dimension precision: ± 3 mm
Terminals
2.5
12
6.2
7.624.5
Unit: mm
Dimension precision: ± 0.5 mm
