4-2
Chapter 4 Example of Use
Contents General Description
Checks and Preparation
Settings and Measurement
Example of Use Specification
4.1
Capturing procedure
We briefly describe the preparation, setup and capturing procedures for data capturing.
Here we take voltage and temperature measurements as an example.
Item Description
Capturing purpose Voltage and temperature measurement of a target object
Target measuring point 2 points
Thermocouple T-type thermocouple, 100°C
Voltage range 1V
Sampling interval 1 second
Data saving destination Internal memory (MEM)
Trigger This is not used.

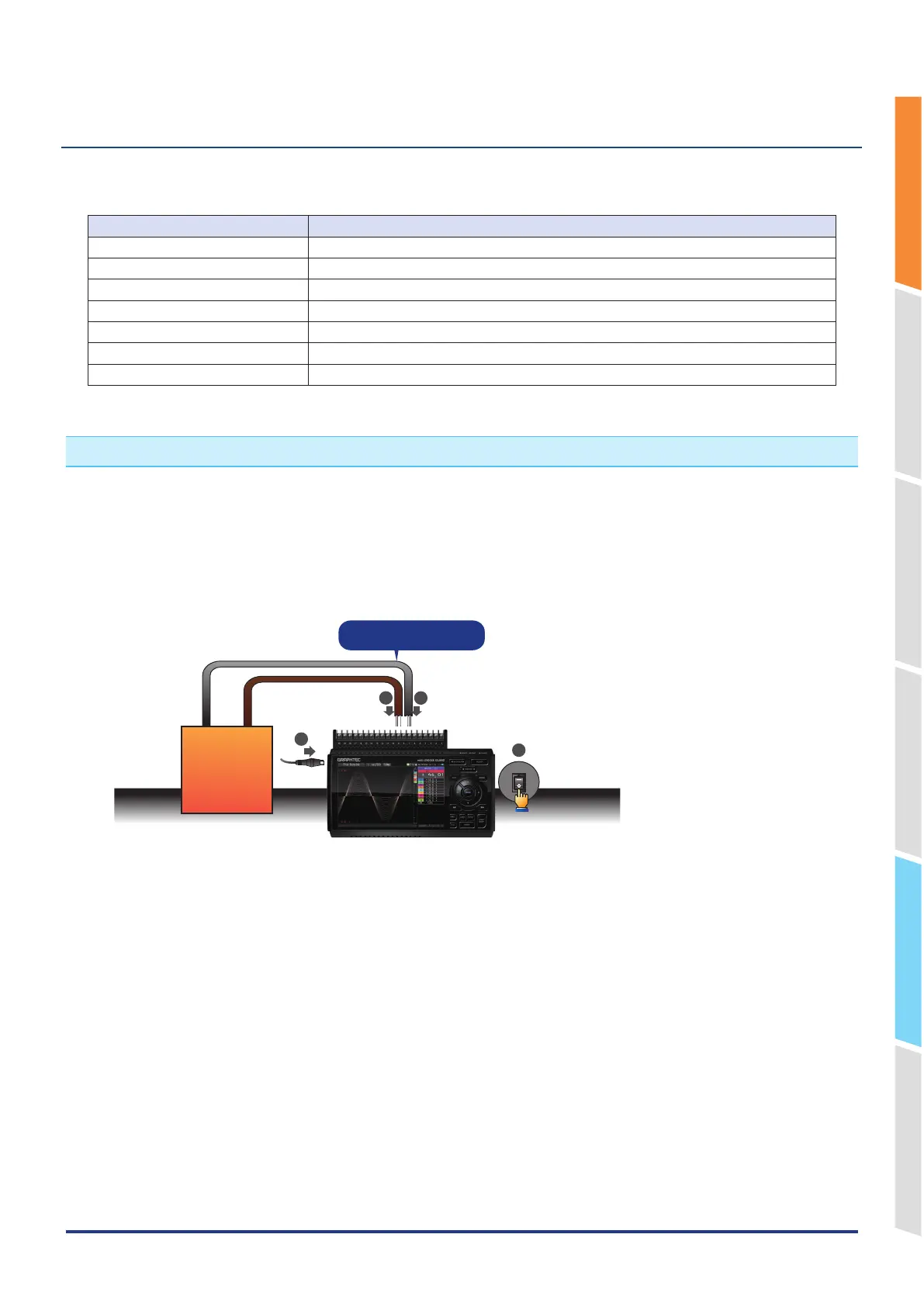

1. Preparation
Prepare for capturing.
1. Connect measurement object 1 to the 1CH terminal. (Voltage)
2. Connect measurement object 2 to the 2CH terminal. (Temperature)
3. Connect to AC power.
4. Turn on the power.
1
2
4
3
Measurement
object
Connect securely!
5. Wait at least 30 minutes for the GL860 to warm up.
(Warm-up is required when performing thermocouple measurements.)
To Next Page
