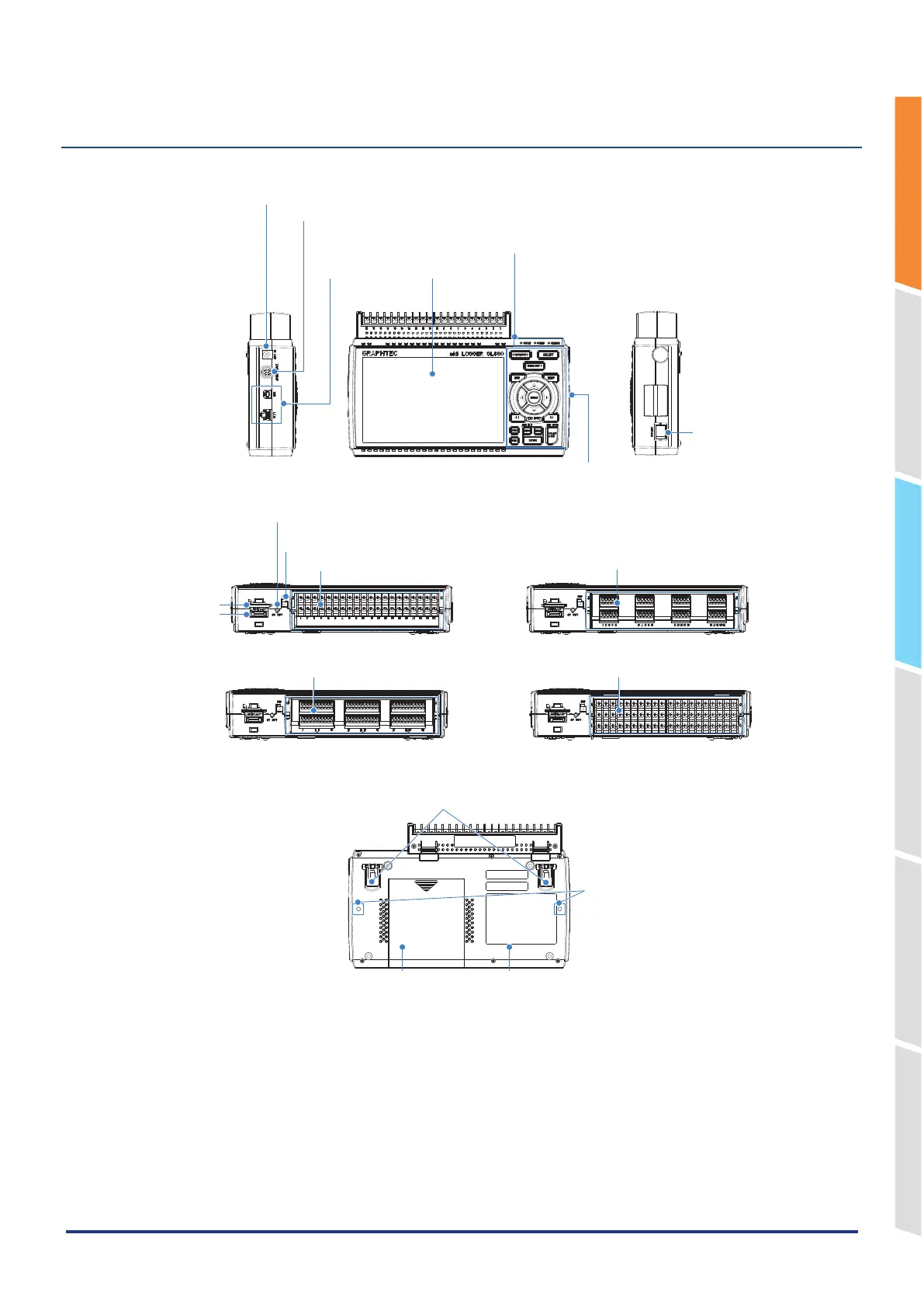

2.5 Nomenclature and Functions
This section describes the names and functions of parts of the GL860.
Monitor
Operation status LED
AC adapter jack
External input/output terminals
• POWER: ON when the power is ON
Blinking while accessing the memory
• START: ON during data capture
• CHARGE: ON while the battery is charging
Control panel keys
• LOGIC/PULSE
• EXT TRIG/SAMPLE
• ALARM
PC interface
terminals
・
USB
・
LAN
Power switch
Analog signal input terminals
Standard 20CH screw terminal (B-563)
GND terminal
Power jack for humidity sensor
Wireless LAN
connection terminal
SD CARD
Tilt foot
Fixing screw
Label
Battery cover
Humidity sensor (Option: when using the B-530)
Battery pack
（
B-573/B-569
:
Option
）
Analog signal input terminals
Standard 20CH screwless terminal (B-563SL)
Analog signal input terminals
Standard 30CH screwless terminal (B-563SL-30)
Analog signal input terminals
Withstand high-voltage high-precision terminal
(B-565)
