2.13 Connecting the Humidity Sensor

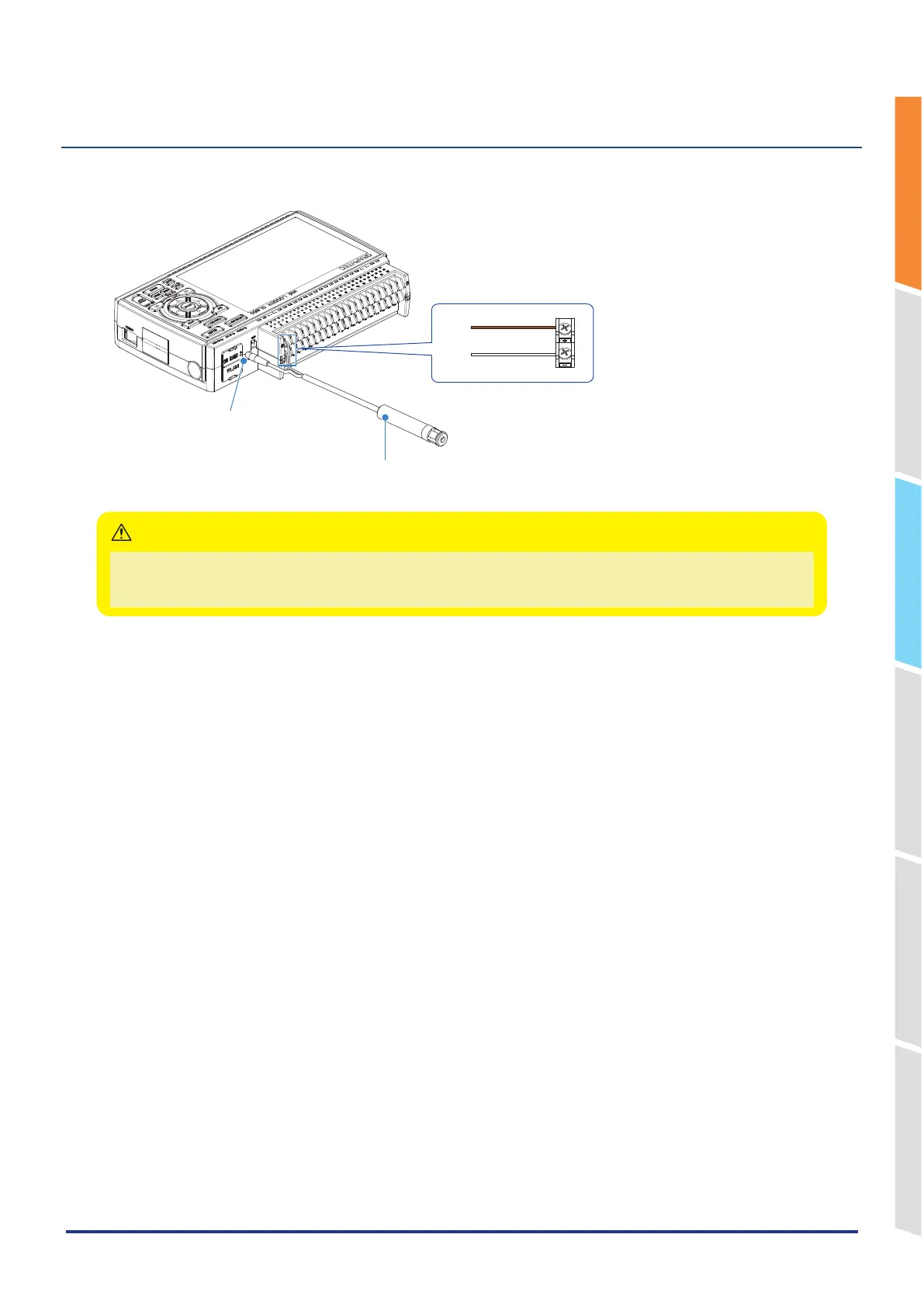

Connect the + and – lead wires of the humidity sensor (B-530: Option) to the desired terminals, and then insert the
round connector into the 5V OUT connector on the GL860.
+
-
Humidity sensor
(B-530: Option)
Connected to the 5V OUT
terminal.
Brown
White
Humidity Sensor
•
Do not use the sensor in the vicinity of other devices which are susceptible to electromagnetic interference. Measured
results may not satisfy the stated.
•
The 5V OUT terminal on the GL860 is available for only one humidity sensor.
CAUTION
