Wiring

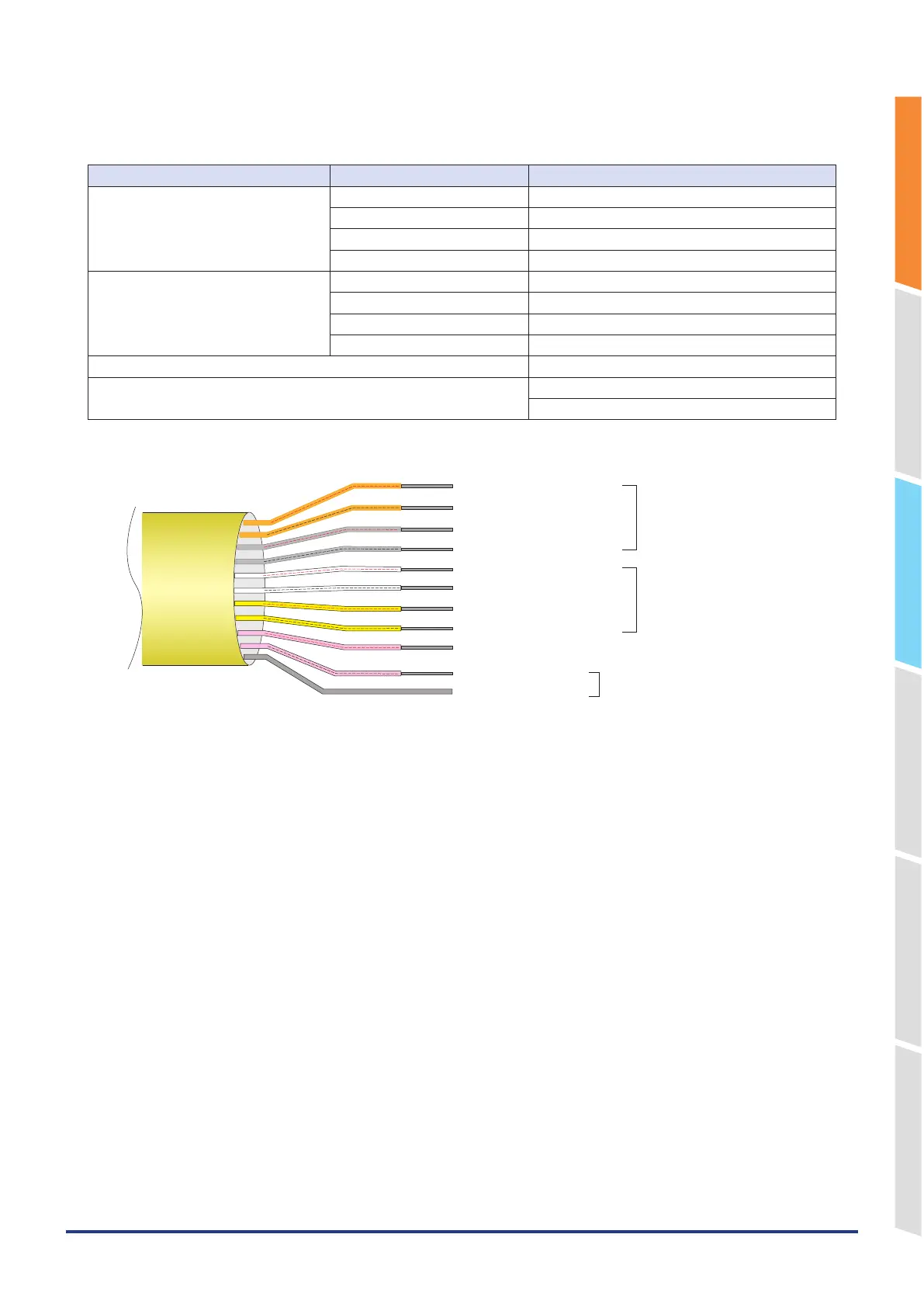

Cable tips are bare tips. Perform wiring for the necessary functions.
Signal Name Channel Number Wire Color
Logic/Pulse input 1 Orange with red dotted line
2 Orange with black dotted line
3 Grey with red dotted line
4 Grey with black dotted line
Alarm output 1 White with red dotted line
2 White with black dotted line
3 Yellow with red dotted line
4 Yellow with black dotted
Trigger input/External sampling input Pink with red dotted line
GND Pink with black dotted line
Shielded
* Switch between logic and pulse.
Orange with red dotted line : 1
Orange with black dotted line : 2
Grey with red dotted line : 3
Grey with black dotted line : 4
White with red dotted line : 1
White with black dotted line : 2
Yellow with red dotted line : 3
Yellow with black dotted line : 4
Pink with red dotted line : Trigger input/External sampling input
Pink with black dotted line
Shielded
GND
Logic/Pulse input
Alarm output
