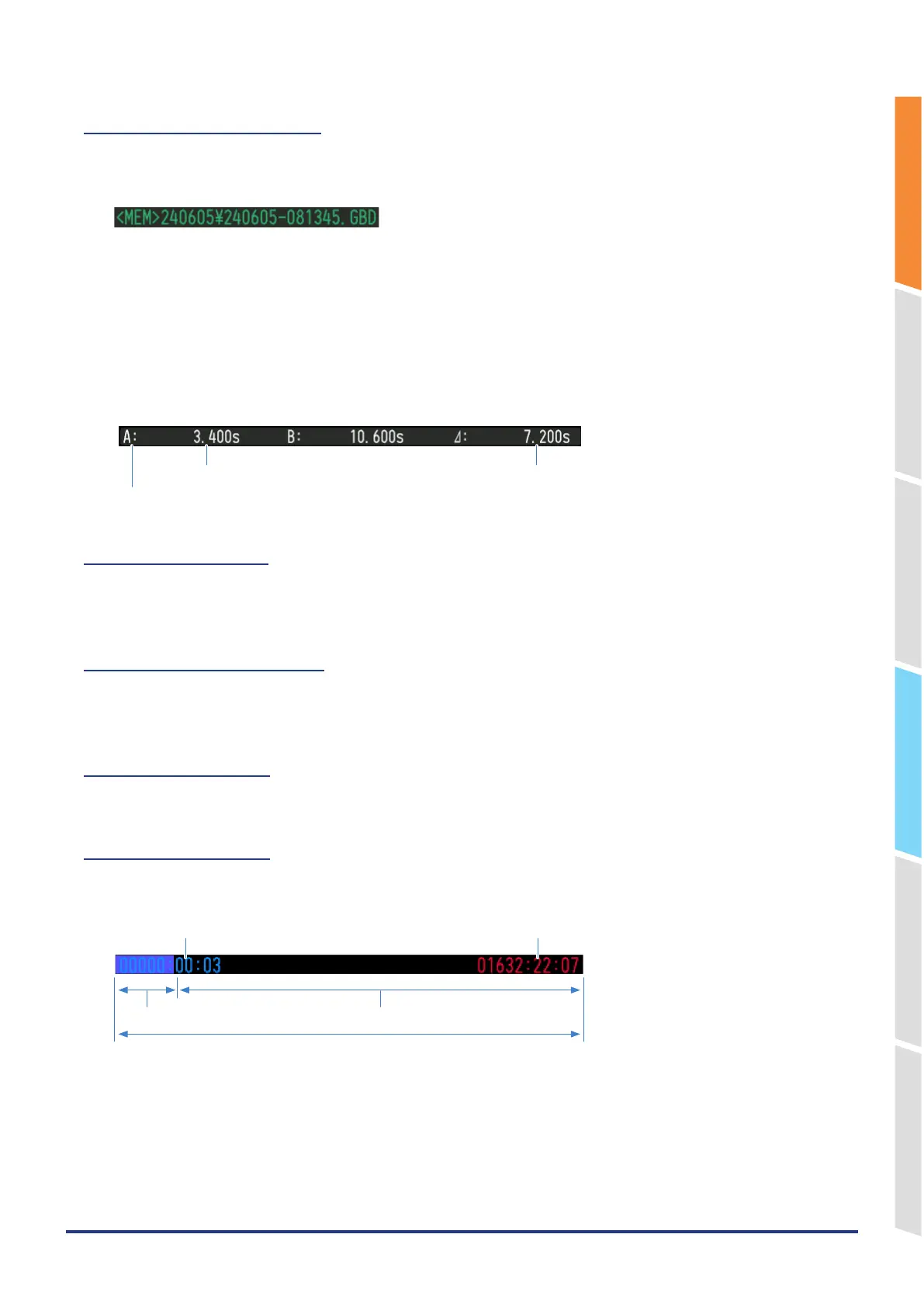

14. File name display area
<During data capture>
A capture file name is displayed during capture.
* If the ring recording setting is ON, a file name displayed during capture ends with "_RINGx" (x represents a number)
but the actual file name does not include "_RINGx".
In the above figure, if the ring recording is set to ON, the file name during capture will be displayed, for example, as
"<MEM>240605 \240605-081345_RING4.GBD" but the actually created file will be "<MEM>240605 \240605-081345.
GBD".
* Refer to "2. DATA settings" in "3.4 Setting Menus" for details.
<During data replay>
Information on the time axis of the cursor is displayed during replay.
“A” Time to which the cursor points
“A” cursor
Time difference between Cursors A and B
15. Scale lower limit
Displays the scale lower limit of the currently active channel.
16. Waveform display area
Displays the waveform of the input signal.
17. Scale upper limit
Displays the scale upper limit of the currently active channel.
18. Data capture bar
<During data capture>
Displays the elapsed time and the internal memory and SD memory card usage status.
Elapsed time Remaining time for data capture
Amount of internal memory and
SD memory card used
Amount of internal memory and
SD memory card remaining
Total amount of internal memory and SD memory card
For example, a 4 GB SD memory card is inserted and about 100 MB is used before data capture, the total amount of
memory is 4 GB, the amount of SD memory card used is about 100 MB, and the amount of SD memory card remaining
is about 3.9 GB. As time elapses during data capture, the amount of used SD memory card increases and the amount
of remaining memory decreases.
The remaining time for data capture shows the time during which data capture is available with the amount of remaining
SD memory card. If the amount of remaining SD memory card is more than 2 GB, however, this part shows the
remaining time during which data capture is available with one 2 GB file.
