11.3.4 Synchronizing a Master/Sync setup to external time sources
In a Master/Sync setup, all time information is recorded by the Master mainframe only.
Synchronization source selection on Sync mainframes is disabled as Sync mainframes
are dedicated to follow the Master mainframe.
For the Master mainframe, the date and time are controlled by either the PC (RTC), PTP
master, IRIG or GPS, depending on the synchronization source selected. The source is
selected in the Perception software.
In the Perception work area:

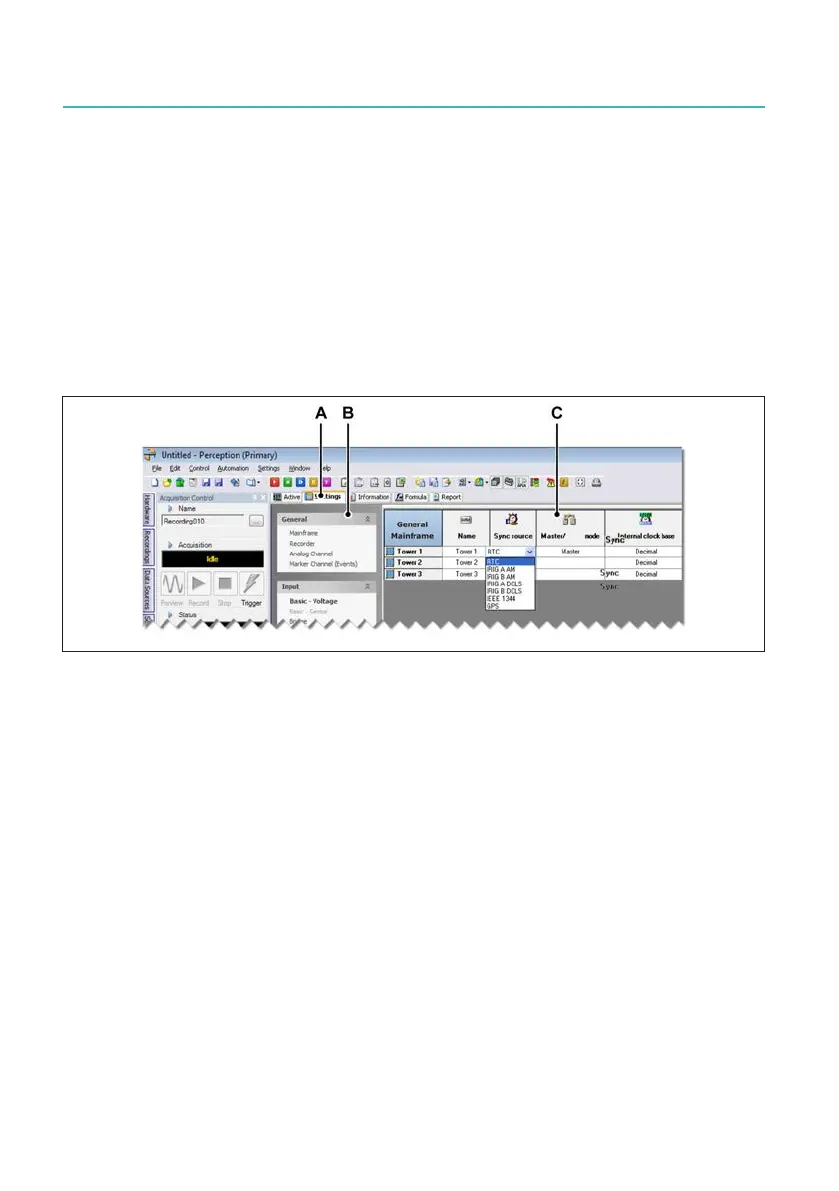

Fig. 11.8 Perception work area synchronization source
A Settings tab
B General group
C Master/Sync mode column
To set the Master/Sync operation in the Perception software, proceed as follows:
1. Select the Settings sheet.
2. In the Settings sheet, go to the General group in the task pane and select Main-
frame.
A list of available mainframes is displayed in the settings area.
3. Select the Master mainframe.
4. Double-click on the Sync sourcecelltoopenitformodication.
5. In the drop-down list that appears, select the synchronization source that should
be used.
For information on how to check synchronization, please refer to appendix „D.12 Mas-
ter/Syncconnectionvericationprocedure“onpage416.
