GEN7iB
476
PTP SYNCHRONIZATION
P
TP SYNCHRONIZA
TION
G
G.2
Perception settings
Set "Sync Source“ to PTP1 (RJ45)
or
to PTP2 (optical):

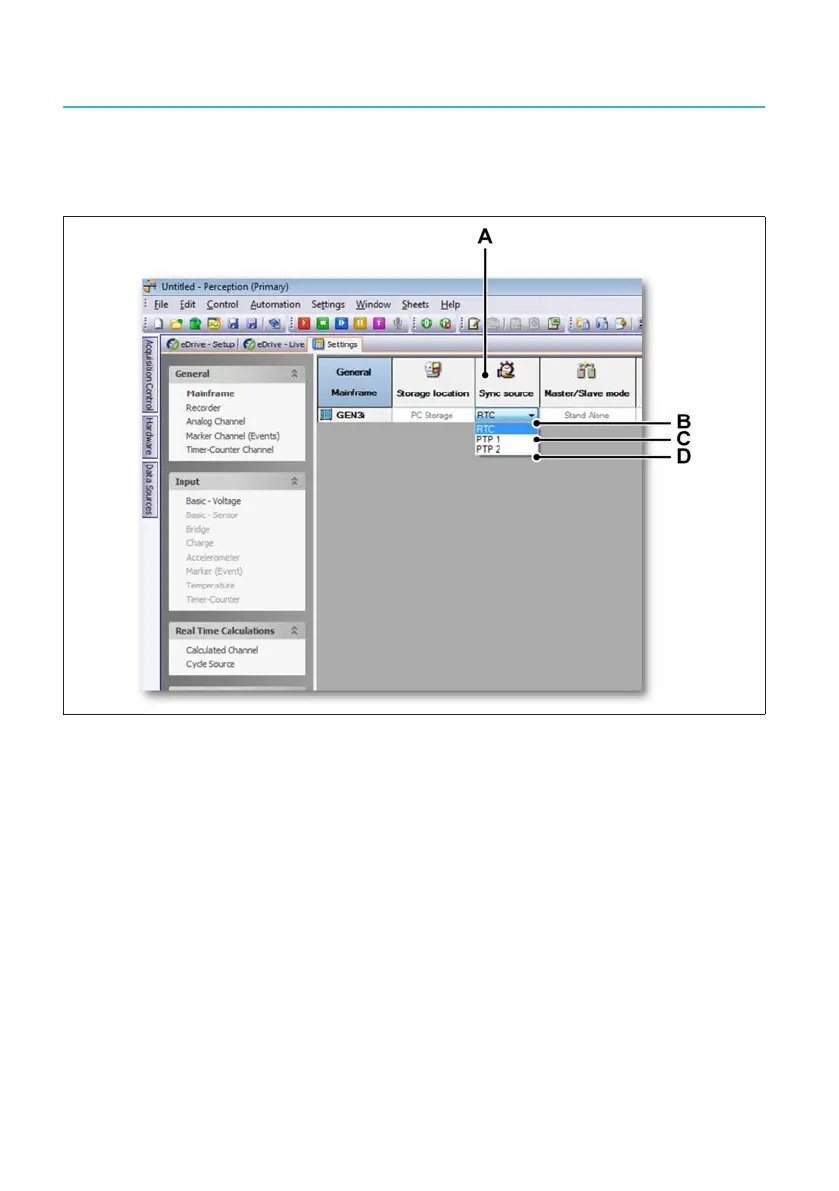

Fig. G.9
Perception - Sync source option (PTP 1) or (PTP 2)
A
Sync source option
B
RTC
C
PTP 1
D
PTP 2
475
477
