GEN7iB
262
INPUT CARDS
INPUT CARDS
12
12.6.11 DIN rail breakout
Tip
For quick connect and reconnect din rail breakouts are available.
Three different models exist:
1. Generic breakout G088

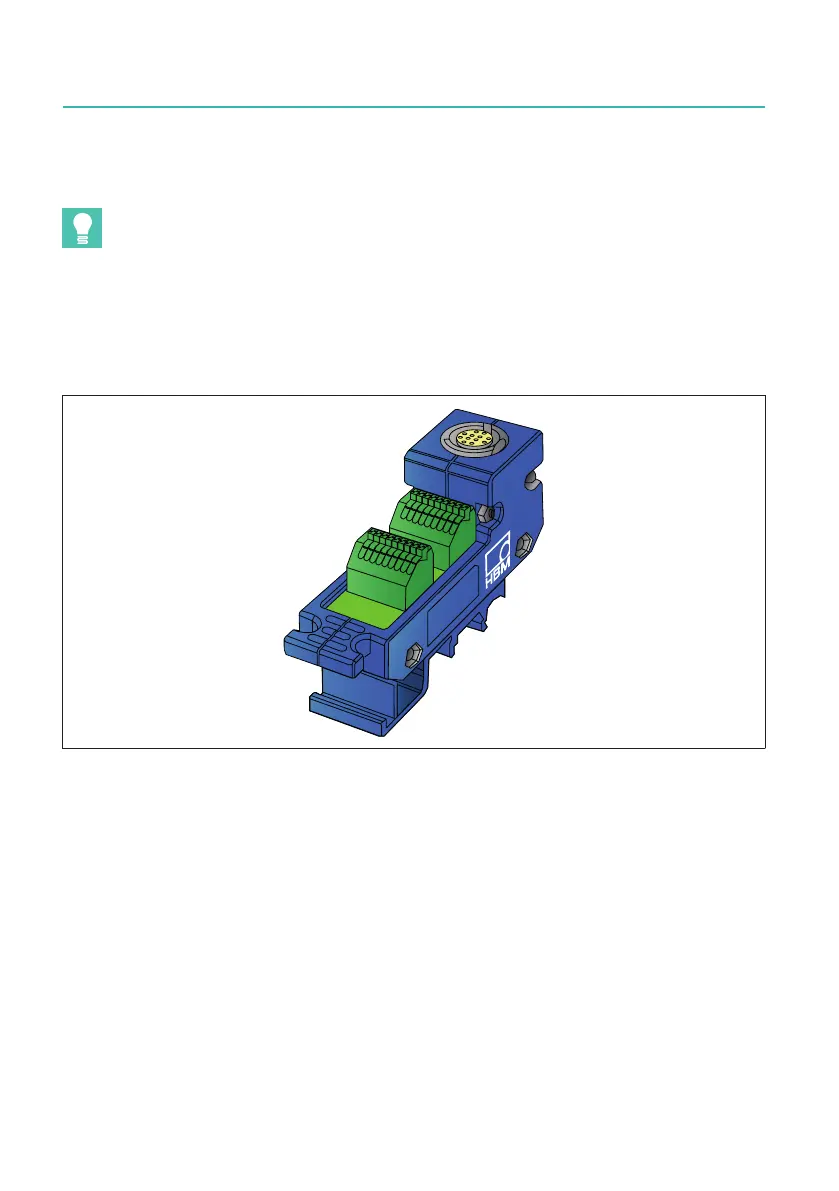

Fig. 12.84 DIN rail mountable breakout block (1-G088-02)
The G088 supports spring/push-in connectors for all wire connection to/from the
GN840B/GN1640B card. It is especially suited to support Bridge/Basic sensor/RTD/
Current loop sensors.
The breakout supports wire connections for TEDS class 2 and 3.
