PTP SYNCHRONIZATION
PTP SYNCHRONIZATIONG
G.3.3 GEN3i with up to three QuantumX "B" version modules

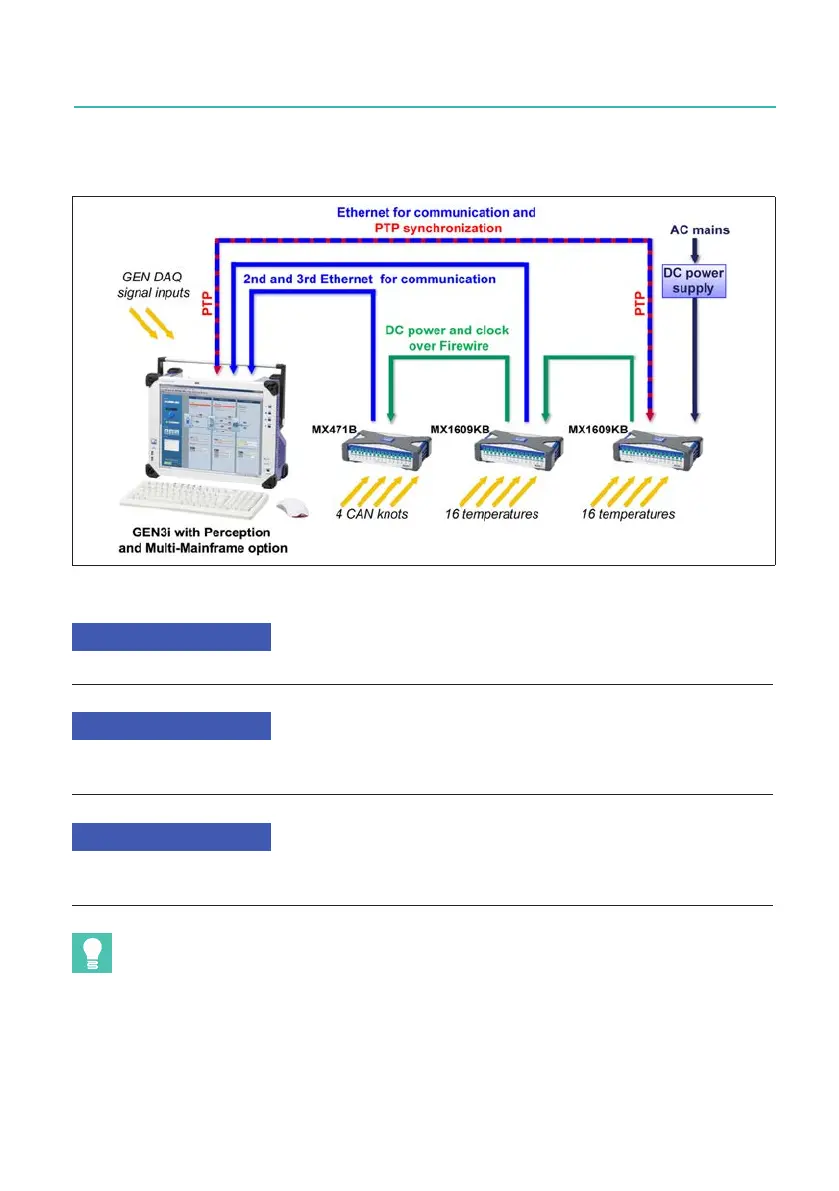

Fig. G.12 GEN3i with a mix of three QuantumX "B" version modules
Setup only shows GEN3i. GEN3i can be replaced by GEN3iA/GEN7i/GEN7iA/GEN7iB.
* All modules must be “B“ versions; one module must set to “clock master“ and connected
to the GEN3i PTP Ethernet.
With Perception SW version 7.40 the QuantumX support will be stopped. In future versions of
Perception, the QuantumX modules can then be integrated via CAN at tethered mainframes.
This setup uses multiple network ports on the GEN3i PC section.
Use îž’xed IP address setup with different base IP address and non-overlapping IP-ranges
(Combination of base IP address and net mask) for each of the GEN3i network ports to
make sure the setup always works.
