GEN7iB
489
PTP SYNCHRONIZATION
P
TP SYNCHRONIZA
TION
G
G.3.10 HBK UL-0265 gigabit PTP switch
The HBK UL-0265 gigabit PTP switch has been successful tested with GEN DAQ and
QuantumX systems.

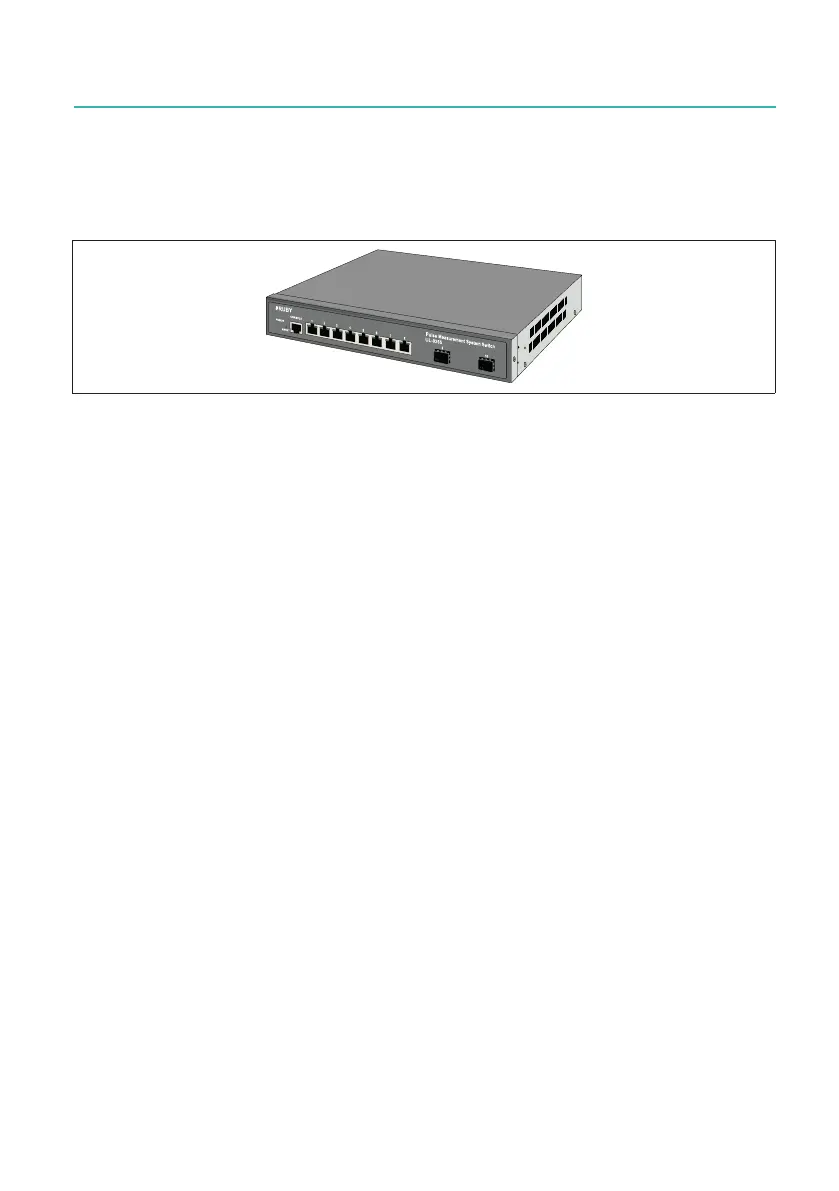

Fig. G.21
HBK UL-0265 gigabit PTP switch
488
490
