G.3.5 GEN3i with PTP network switch and four or more of QuantumX "B" version

modules

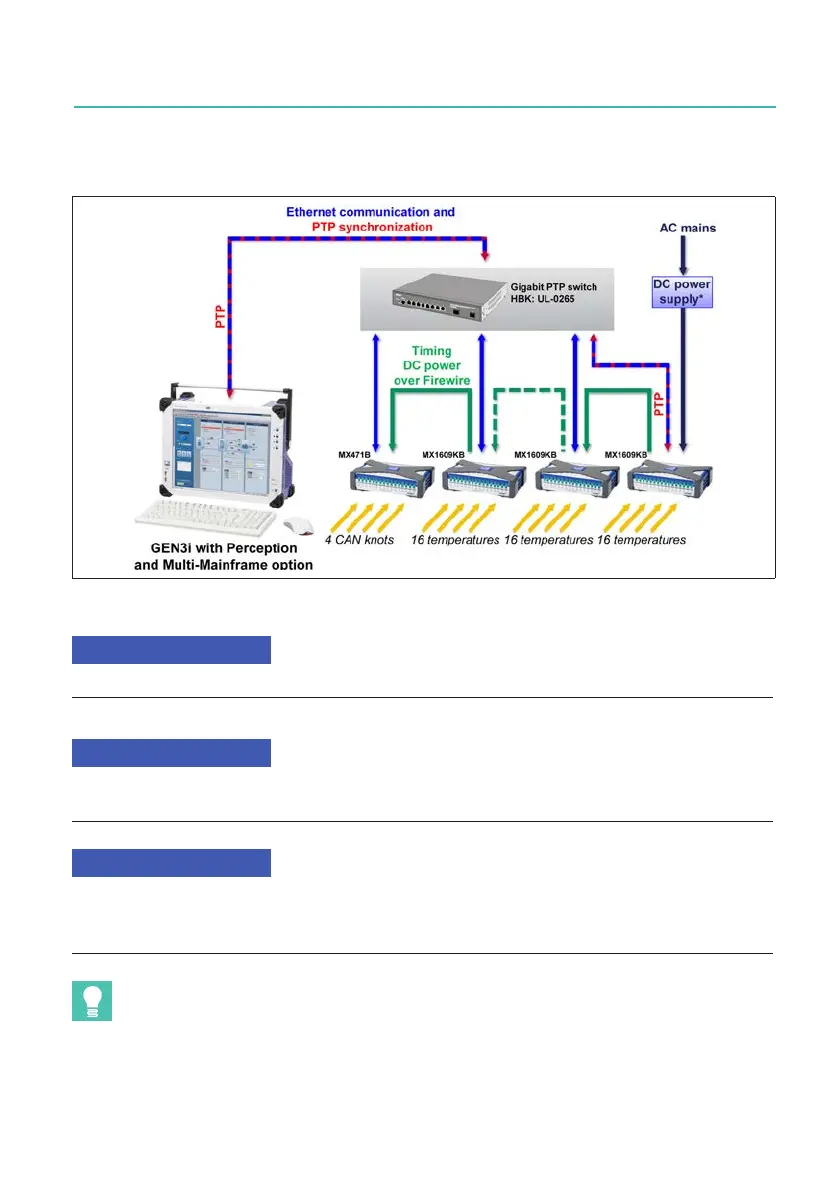

Fig. G.14 GEN3i with multiple MX1609KB/MX1609TB - Using PTP switch

Notice

Setup only shows GEN3i. GEN3i can be replaced by GEN3iA/GEN7i/GEN7iA/GEN7iB.

Notice

* Multiple QuantumX modules requires more than one power supply; see QuantumX docu-

mentation.

Notice

With Perception SW version 7.40 the QuantumX support will be stopped. In future versions

of Perception, the QuantumX modules can then be integrated via CAN at tethered main-

frames.

Tip

This setup is preferred as it doesn't require any manual network setup. However it does

require a PTP switch.
