11.7.2 Removing a 1 Gbit SFP/10 Gbit SFP+ Module
Toremovethemodulefromthemainframe,rstmakesurethatthemainframeis
powered off. Then grasp the small black removal bar and pull it away and out from the
mainframe. The spring-loaded removal bar releases the SFP from the front panel.
86%
86%
86%
373
&$/
352%(
',63/$<32576
06
373
373
$

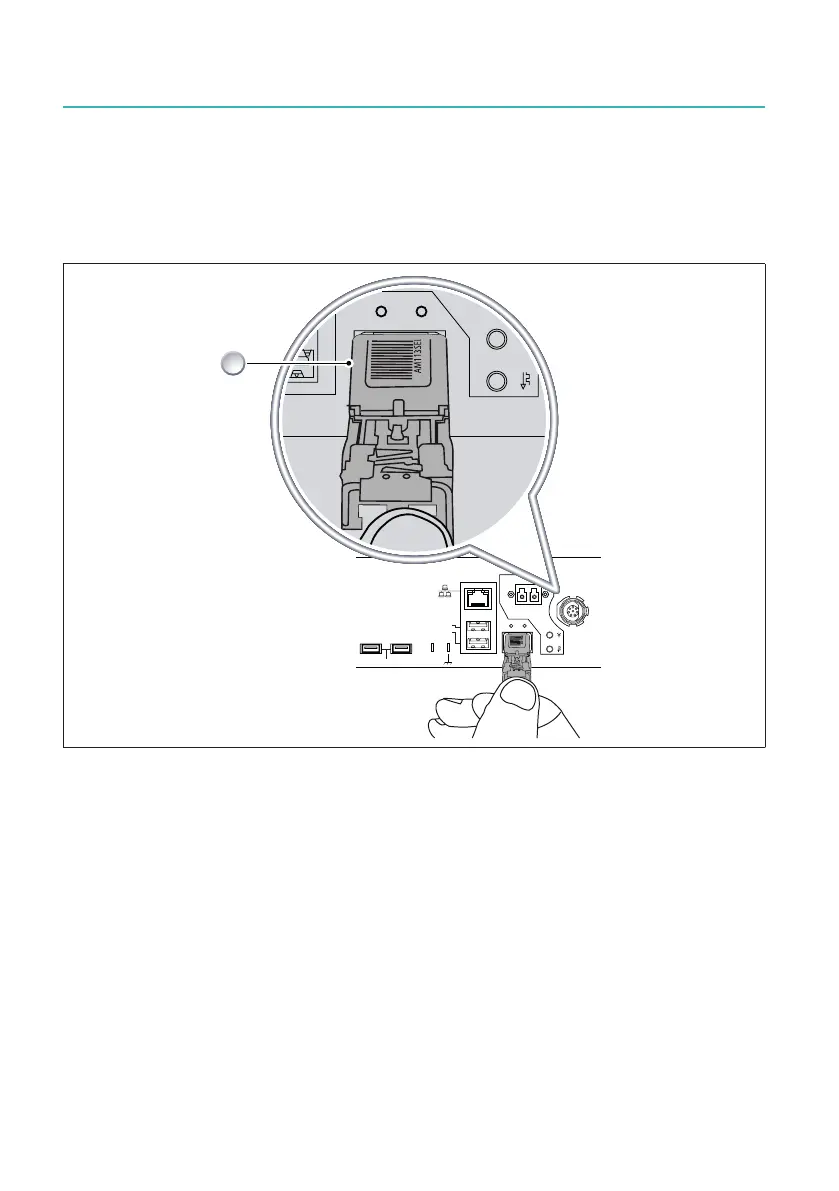

Fig. 11.26 SFP slot - Remove device
A Remove device
Then, if available, replace the small plastic plug to protect the optical inlet.
