12.2.6 Understanding the GN310B/GN311B category rating

Safety according to the harmonized standard

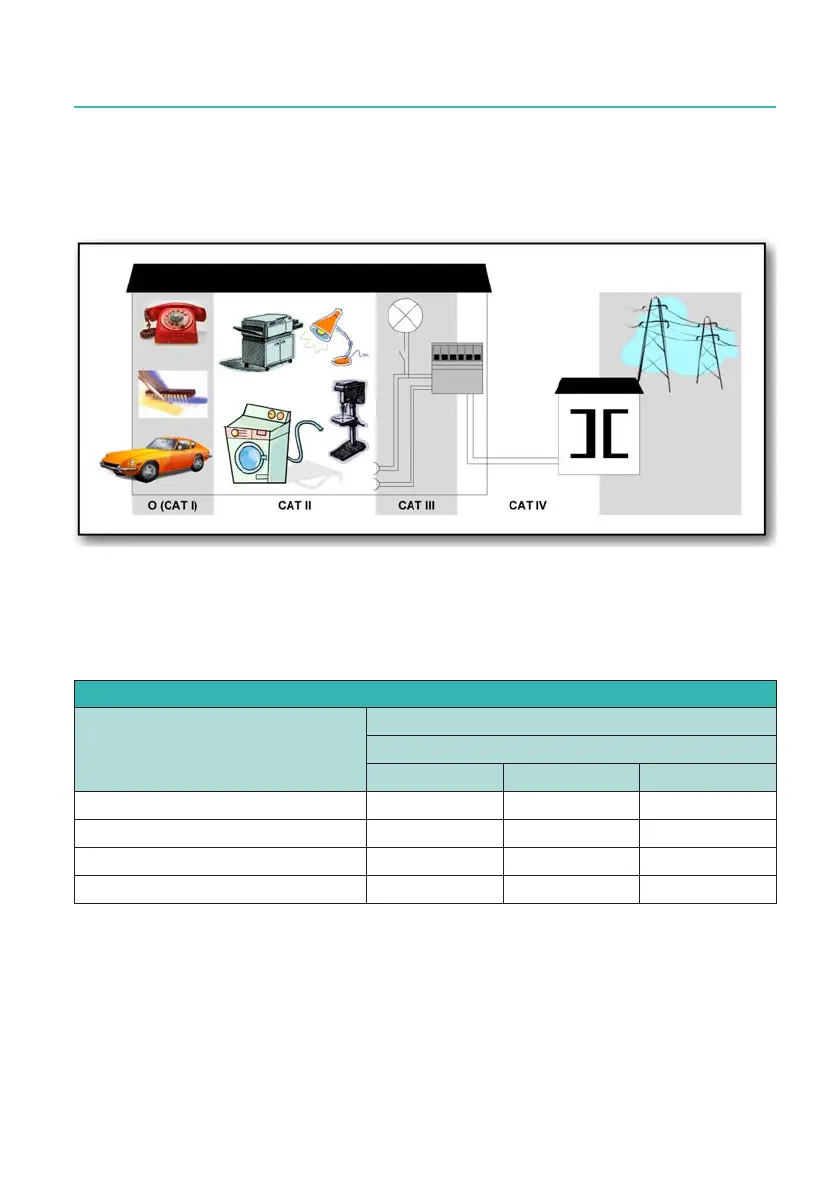

Fig. 12.17 Category indication in accordance with IEC 61010-2-030:2017

Example:Ameasurementdeviceisspeciedas1000VCATIV,maximuminputto

chassis voltage 1000 V CAT III.

Basic insulation test voltages in accordance with IEC 61010-2-030:2017

Nominal voltage

[V RMS or V DC]

IEC 61010-2-030:2017 BASIC insulation

5 sec. AC test [V RMS]

CAT II CAT III CAT IV

≤150

1.350 1.390 2.210

>150≤300

1.500 2.210 3.310

>300≤600

2.210 3.310 4.260

>600≤1000

3.310 4.260 6.600
