GEN7iB
90
SETTING UP THE GEN7iB
SETTING UP THE GEN7iB
7
7.3
Handle
The handles are used to carry the GEN7iB system. Only carry the instrument
when the handles are in the upright position.

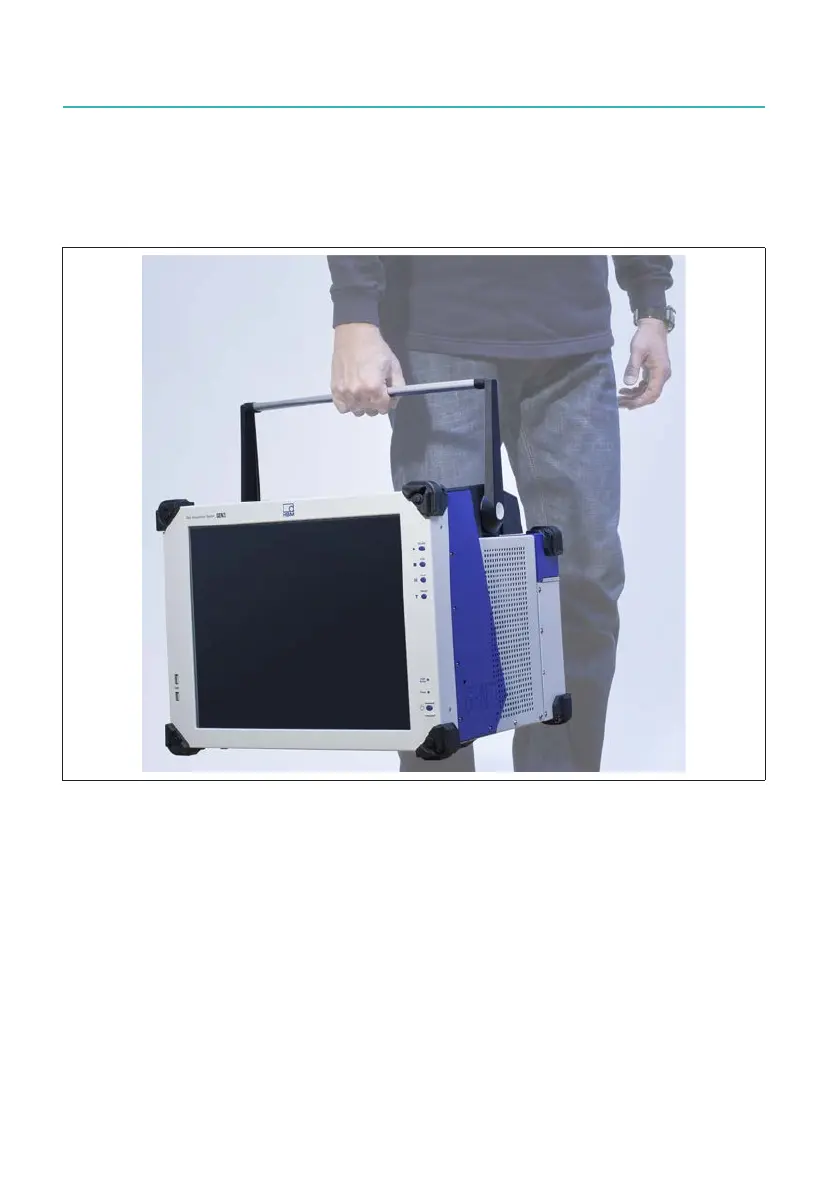

Fig. 7.9
GEN7iB with handle in the upright position
