GEN7iB
322
GEN series SYNCHRONIZATION METHODS
GEN series SYNCHRONIZATION METHODS
14
14.4.2 Installation
When connecting the G001B option, please follow the steps described below.
1. Connect GMR1000 to power socket using the correct power adapter.
*05
373 173
0DVWHUFORFN
/2&.
%
$

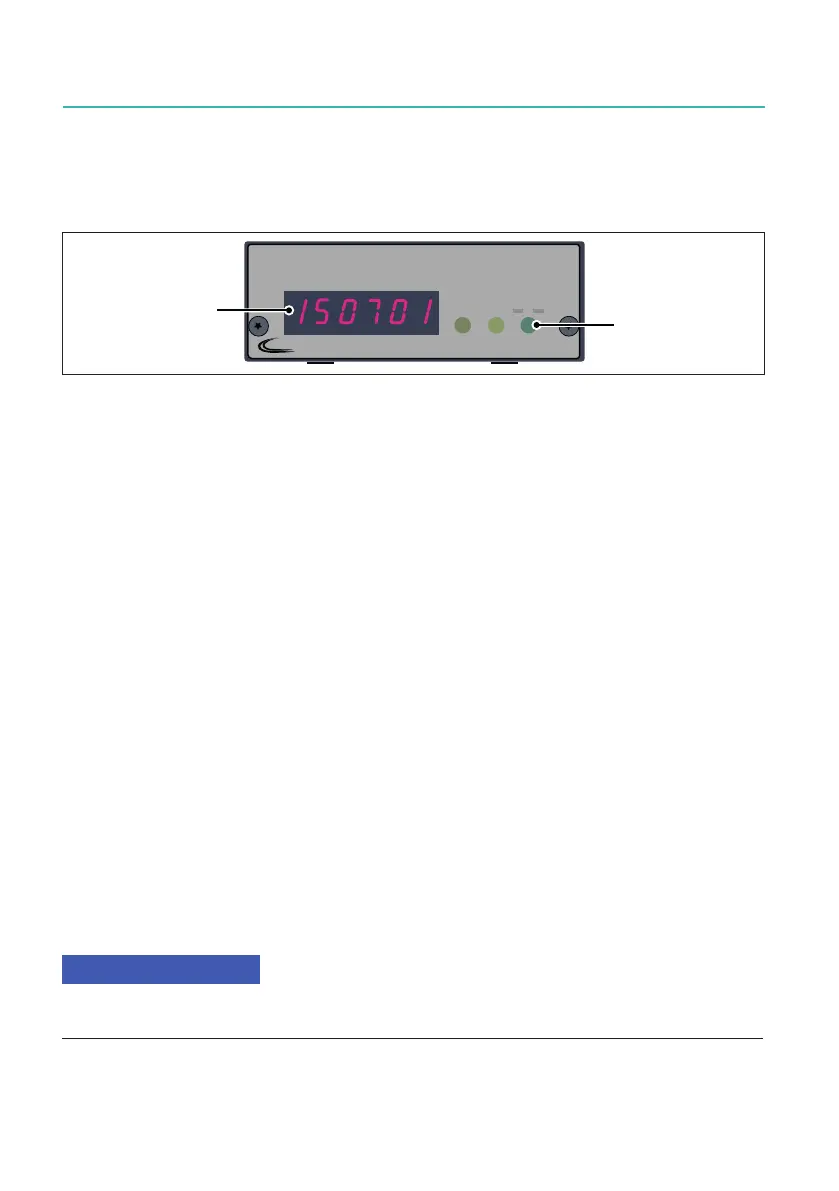

Fig. 14.37 GMR1000
A Display information
B LOCK led
The LOCK led should light up, stay lit and after a while start to blink. After a
while the red digits should start displaying information.
2. Connect the IRIG source to the GMR1000. After a few seconds, the LOCK led
should blink green.
3. Connect the GMR1000 to the mainframe via Ethernet.
3a Connect the GMR1000 to the mainframe via Ethernet.
● Connect the GMR1000 to mainframe PTP port 1 (RJ45) using a standard
Ethernet cable.
3b G001B: Direct connection setup with optical Ethernet.
● Connect the mainframe PTP port 2 (SFP) to the media converter using the
bercable.
● Connect the GMR1000 to the media converter using a standard Ethernet
cable.
3c ● Connect the GEN series mainframe to the PTP aware switch using the port
of choice PTP 1 (RJ45) or PTP 2 (SFP).
● Connect the GMR1000 to the PTP aware switch.
The choice of mainframe PTP port impacts the later selection of Sync Source. Please
match the selection to the actual selection here for proper operation.
