12.4 Isolated Basic/IEPE cards

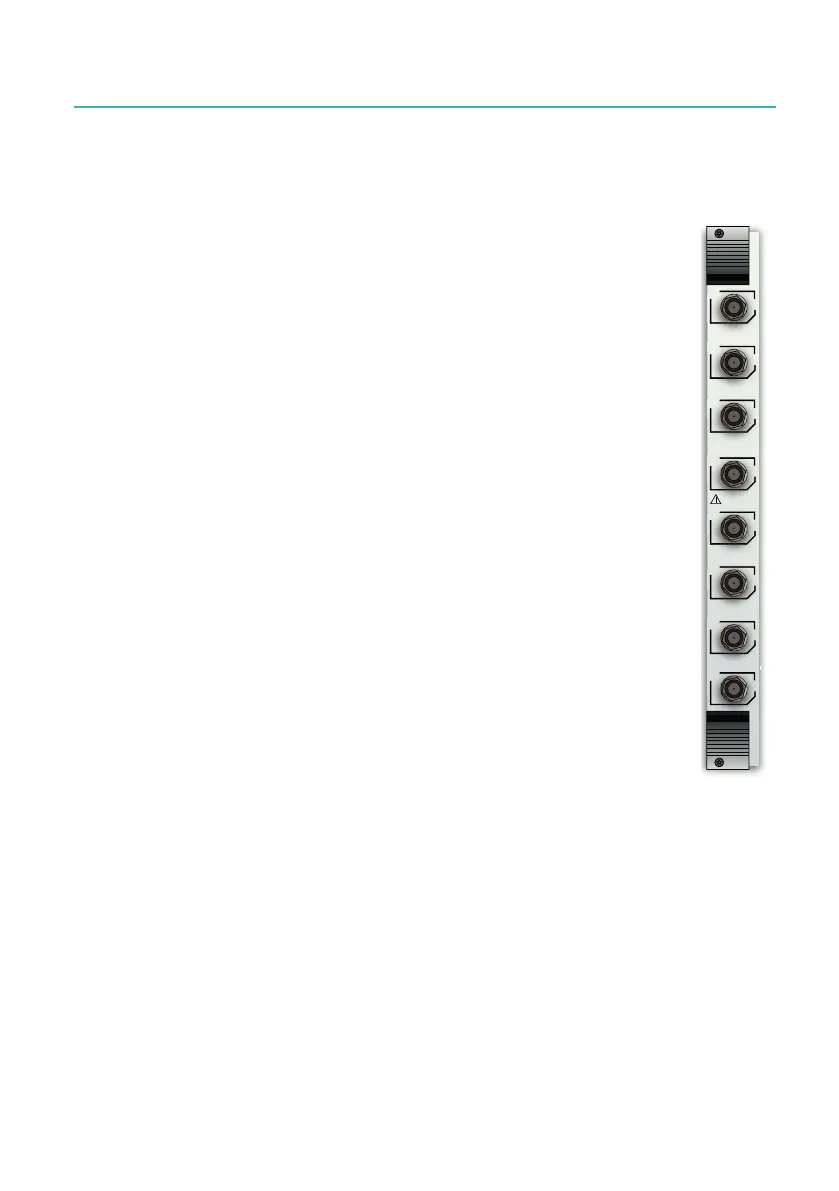

12.4.1 GN815, Isolated Basic/IEPE 2MS/s input card
● IEPE transducer support
● TEDS Class 1 support for IEP
● Isolated, unbalanced differential inputs
● ± 10 mV to ± 50 V input range
● Analog/digitalanti-aliaslters
● 18 bit at 2 MS/s sample rate
● 8 analog channels
● 2 GB memory
● Isolated metal BNC per channel
● Real-time cyclic calculators
● Triggering on real-time results
● Digital Event/Timer/Counter support
● 1 kV RMS CAT II probe
● 1 kV RMS differential probe
● Current clamps and burdens
The GEN DAQ Basic/IEPE ISO 2 MS/s Input Card is a general purpose signal
conditioner for use with voltage inputs, externally conditioned signals or
probes and current clamps.
This card also supports IEPE transducers and TEDS Class 1 for easy setup
of the acquisition channels. Built-in diagnostics supports automatic sensor
connected, open or shorted detection.
Theamplierprovidesvoltageinputsfrom±10mVto±50V.Optimumanti-
aliasprotectionisachievedbythe7-poleanaloganti-aliasltercombined
withaxed2MS/ssamplingAnalog-to-Digitalconverter.
09'&
,VRO9'&
ThedigitalltersoperatingatthefullADCsamplerateofferalargerangeofhighorder
anti-aliasltercharacteristicswithprecisephasematchandnoise-freedigitaloutput.
For true real-time analysis, the card offers real-time cycle or timer based calculations.
Automatic zero crossing detection allows for asynchronous true RMS, mean and other
calculations that can be used to trigger the recording.
The GEN DAQ series input card offers 16 digital input events, two digital output events
and two Timer/Counter channels.
Using voltage probes a single-ended 600 V RMS CAT III / 1000 V CAT II or a differential
1000 V RMS CAT III (1000 V RMS common mode) measurement range is created.
The use of current clamps and external burdens allow for direct current measurements.
Forspecicationandorderinginformation,pleaserefertotheGN815datasheet.
