GEN7iB
472
PTP SYNCHRONIZATION
P
TP SYNCHRONIZA
TION
G
G.1.5
GEN4tB

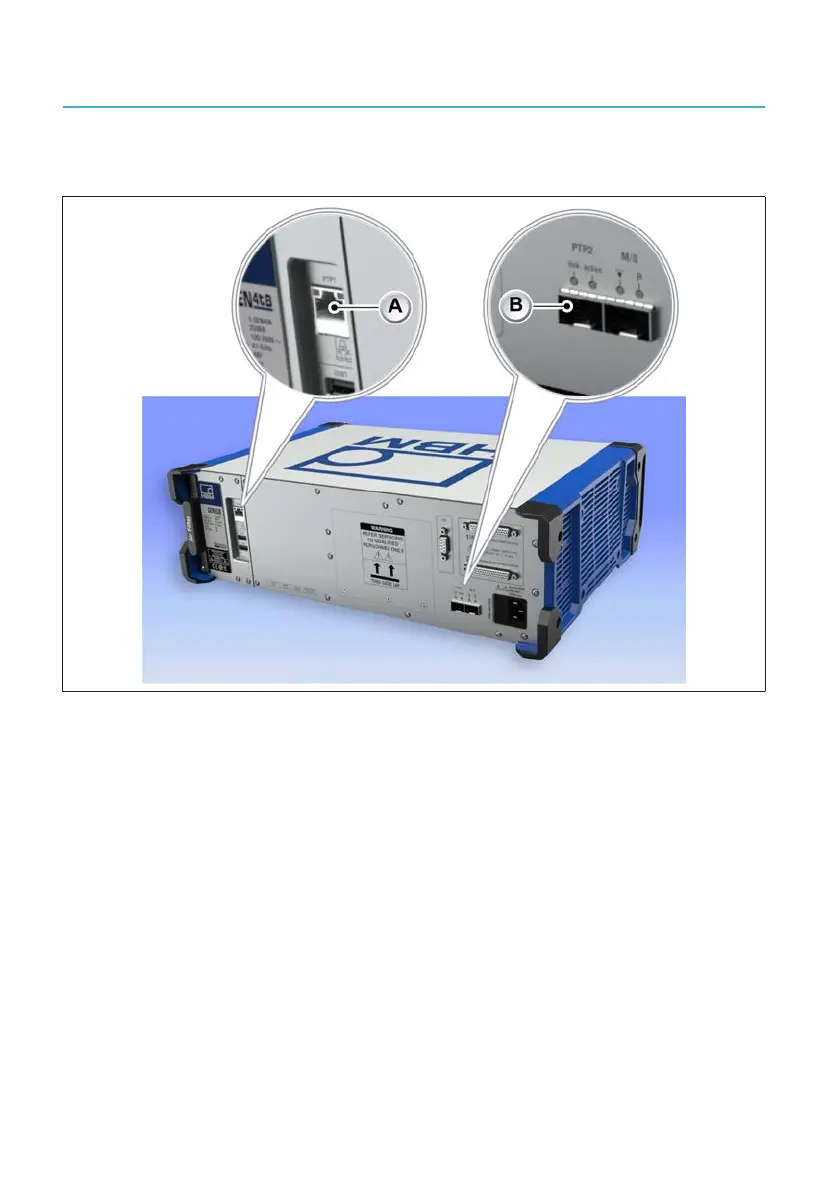

Fig. G.5
GEN4tB PTP enabled por
ts
A
PTP enabled network RJ45
B
PTP enabled network optical SFP slot (SFP module is optional)
471
