GEN7iB

SETTING UP THE GEN7iB

7 Setting up the GEN7iB

7.1 PC connections

GEN7iB has a PC motherboard inside. This PC motherboard has a lot of connections

that can be used to connect other devices to the GEN7iB system.

()*+

$ % & '

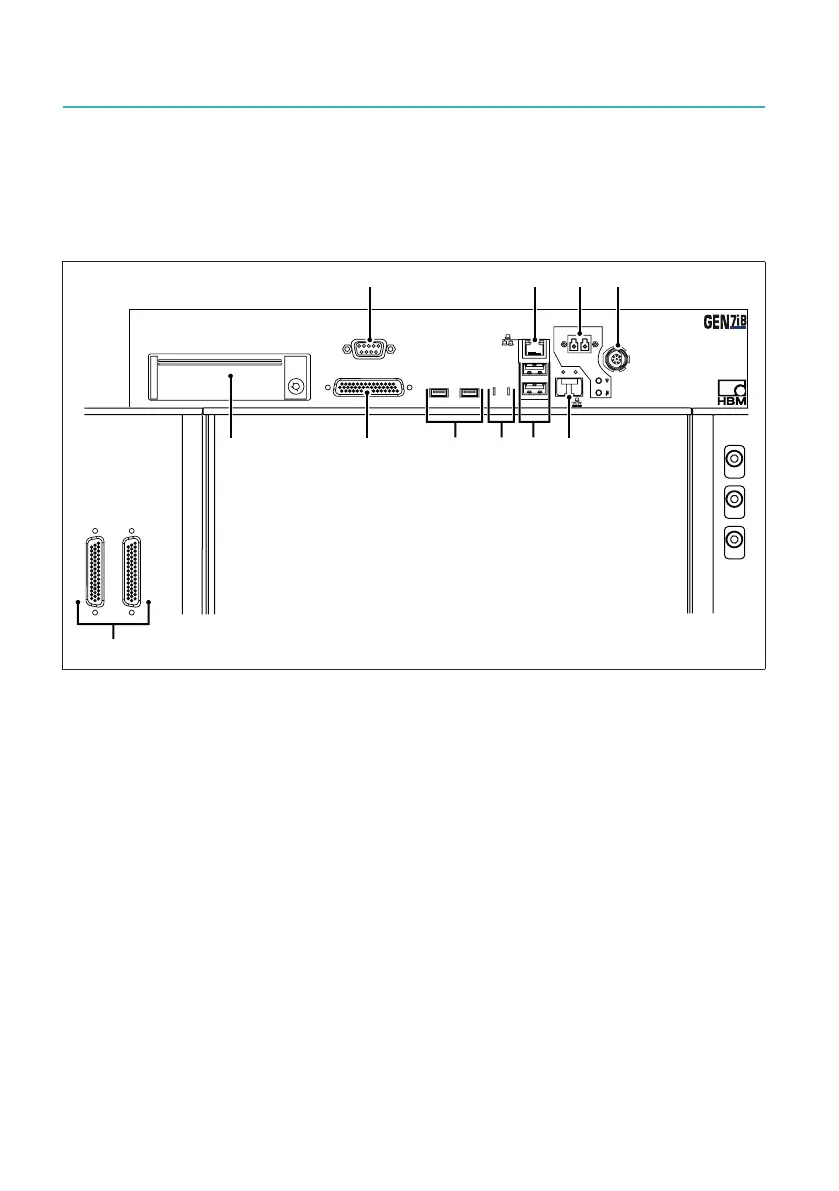

Fig. 7.1 PC connections

A I/O connector (trigger in/out, clock in, event in/out, start/stop)

See chapter „I/O connector“ on page 155.

B PTP enabled network RJ45

See chapter „Communication and control“ on page 142.

C Master/Sync connector (optical)

See chapter „Master/Sync connector“ on page 145.

D DC power output

See chapter „DC power output“ on page 95.

E PTP enabled network optical SFP slot (SFP module is optional)

See chapter „Communication and control“ on page 142.

F 2 * USB 3.0 ports

See chapter „USB 3.0 and USB 2.0 ports“ on page 82.

G Probe calibration

See chapter „Probe calibration“ on page 93.

H 2 * Mini DisplayPorts

See chapter „Mini DisplayPorts“ on page 82.
