GEN7iB
236
INPUT CARDS
INPUT CARDS
12
12.4.2 GN816, Isolated Basic/IEPE 200kS/s input card
● IEPE transducer support
● TEDS Class 1 support for IEP
● Isolated, unbalanced differential inputs
● ± 10 mV to ± 50 V input range
● Analog/digitalanti-aliaslters
● 18 bit at 200 kS/s sample rate
● 8 analog channels
● 200 MB memory
● Isolated metal BNC per channel
● Real-time cyclic calculators
● Triggering on real-time results
● Digital Event/Timer/Counter support
● 1 kV RMS CAT II probe
● 1 kV RMS differential probe
● Current clamps and burdens

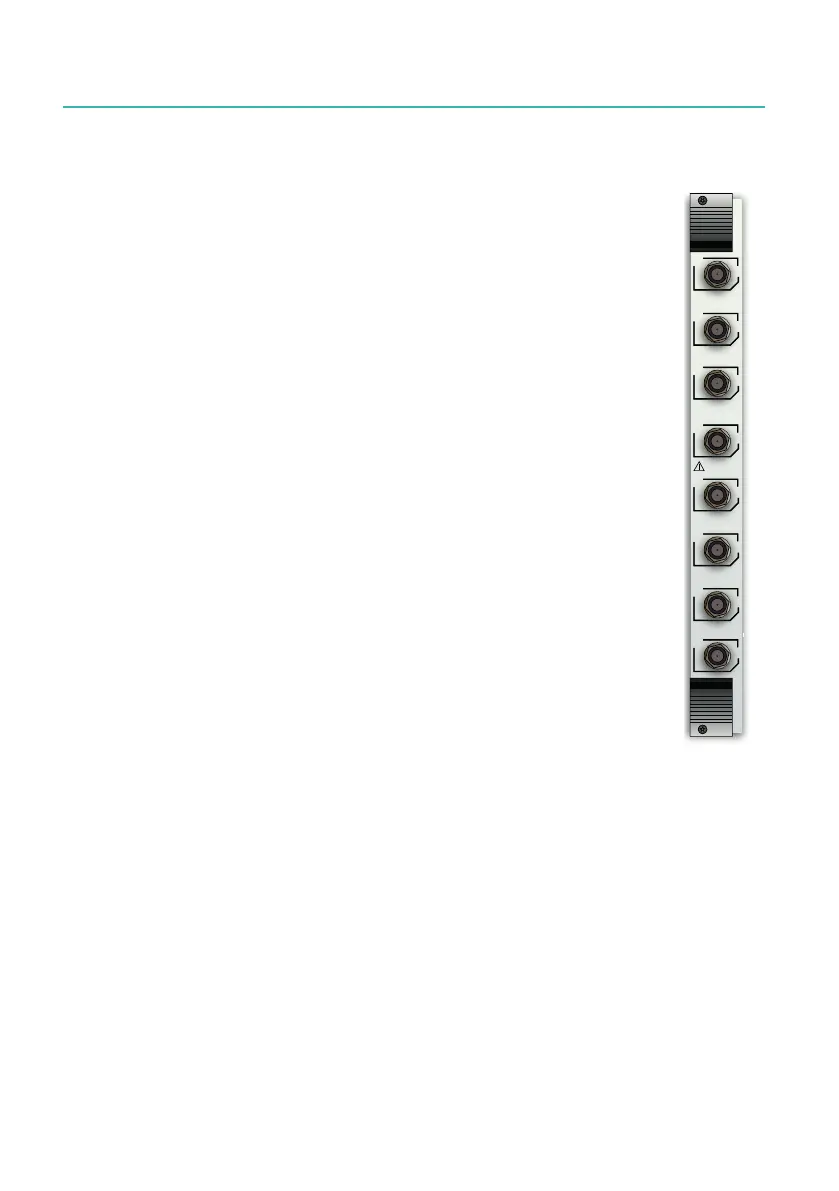

The GEN DAQ Basic/IEPE ISO 200 kS/s Input Card is a general purpose
signal conditioner for use with voltage inputs, externally conditioned
signals or probes and current clamps.
This card also supports IEPE transducers and TEDS Class 1 for easy
setup of the acquisition channels. Built-in diagnostics supports auto-
matic sensor connected, open or shorted detection.
Theamplierprovidesvoltageinputsfrom±10mVto±50V.Optimum
anti-aliasprotectionisachievedbythe7-poleanaloganti-aliasltercom-
binedwithaxed2MS/ssamplingAnalog-to-Digitalconverter.
09'&
,VRO9'&
ThedigitalltersoperatingatthefullADCsamplerateofferalargerangeofhigh
orderanti-aliasltercharacteristicswithprecisephasematchandnoise-freedigital
output.
For true real-time analysis, the card offers real-time cycle or timer based calcula-
tions. Automatic zero crossing detection allows for asynchronous true RMS, mean
and other calculations that can be used to trigger the recording.
The GEN DAQ series input card offers 16 digital input events, two digital output
events and two Timer/Counter channels.
Using voltage probes a single-ended 600 V RMS CAT III / 1000 V CAT II or a differen-
tial 1000 V RMS CAT III (1000 V RMS common mode) measurement range is created.
The use of current clamps and external burdens allow for direct current measure-
ments.
Forspecicationandorderinginformation,pleaserefertotheGN816datasheet.
