HBK GEN7iB GEN Series User Manual

GEN7iB
123
ACQUISITION AND STORAGE
ACQUISITION AND STORAGE
9
9.3 Setup for the Acquisition Modes
● On start of acquisition (on page 123)
● Wait for trigger (on page 125)
● Waitfortriggertotriggermemoryrst(onpage127)
● Onstartofacquisitionreducedrateandwaitfortriggertotriggermemoryrst(on
page 130)
9.3.1 On start of acquisition

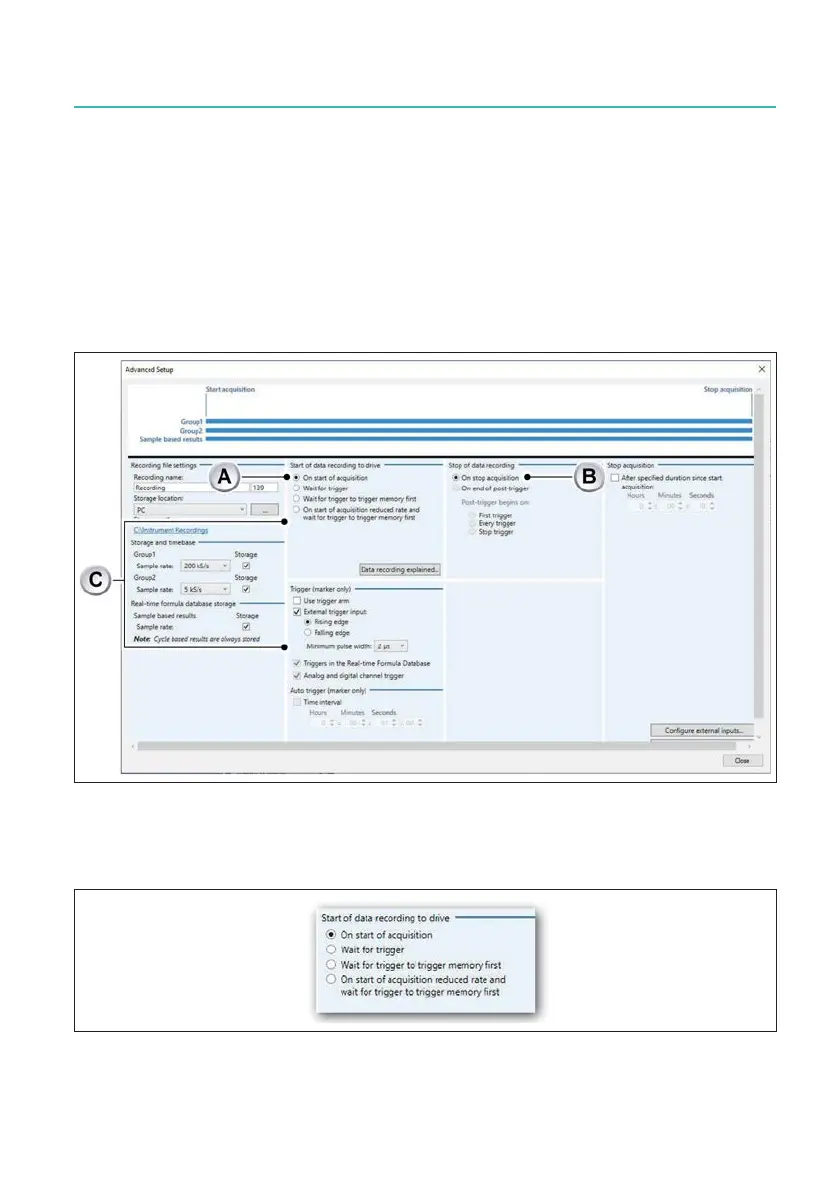

Fig. 9.15 Acquisition mode: On start of acquisition
A In Start of data recording to drive area, select the On start of acquisition check box
(see Fig. 9.16)
Fig. 9.16 Start of data recording to drive
